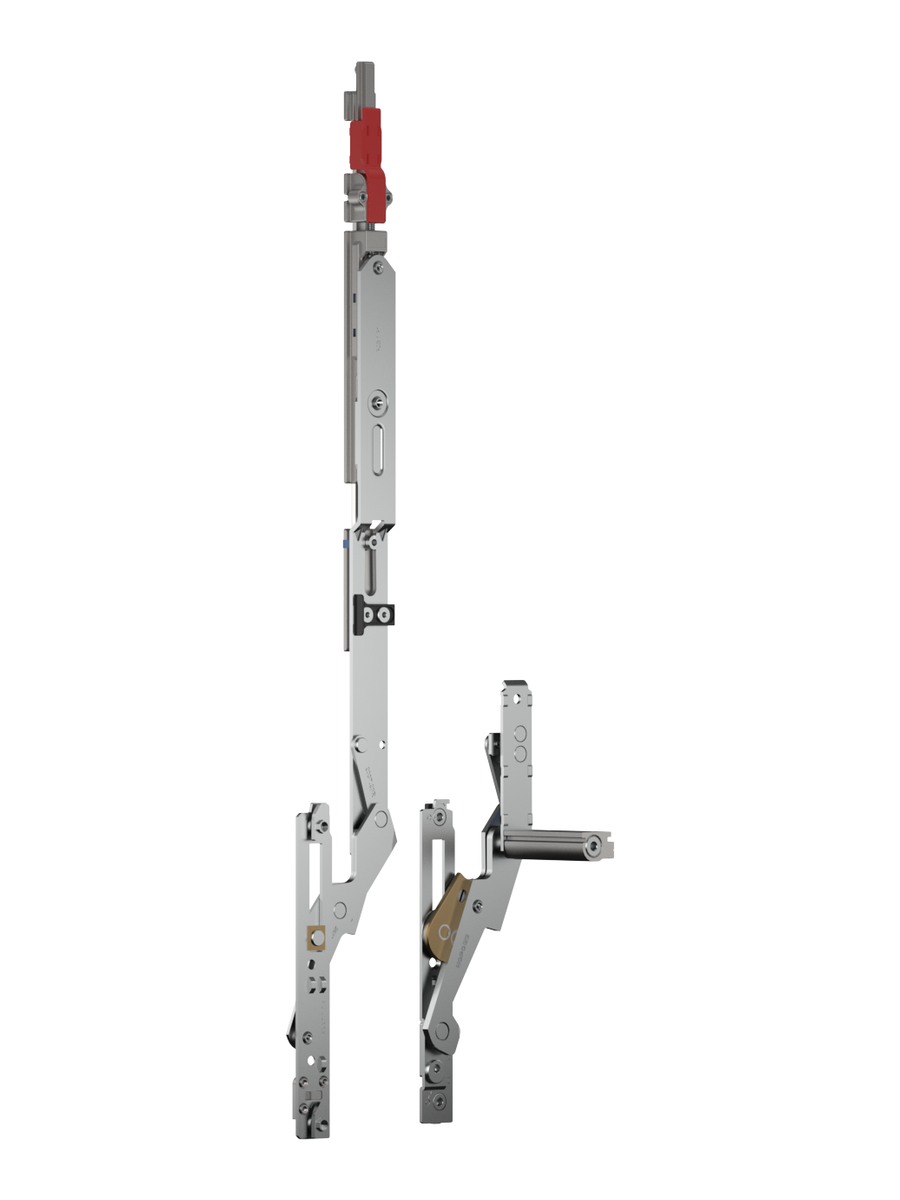

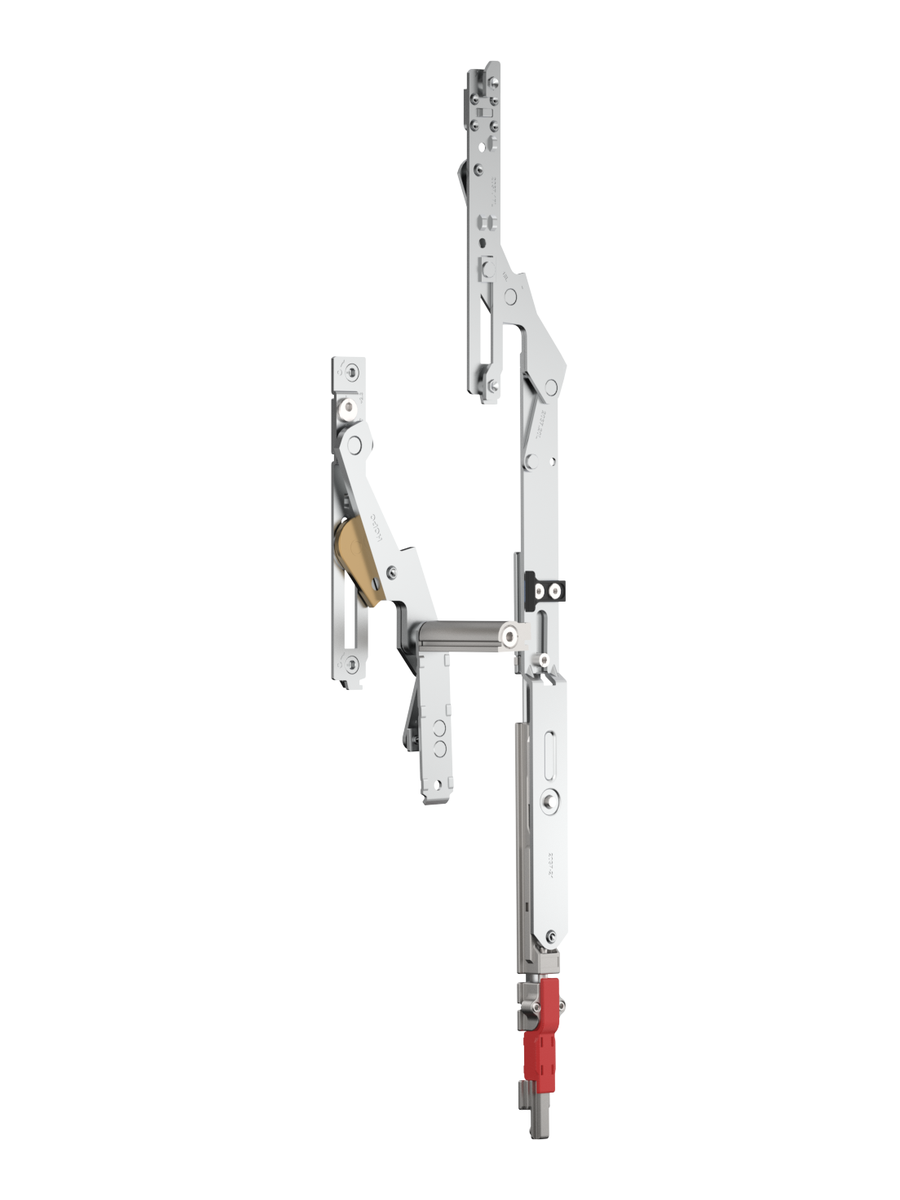

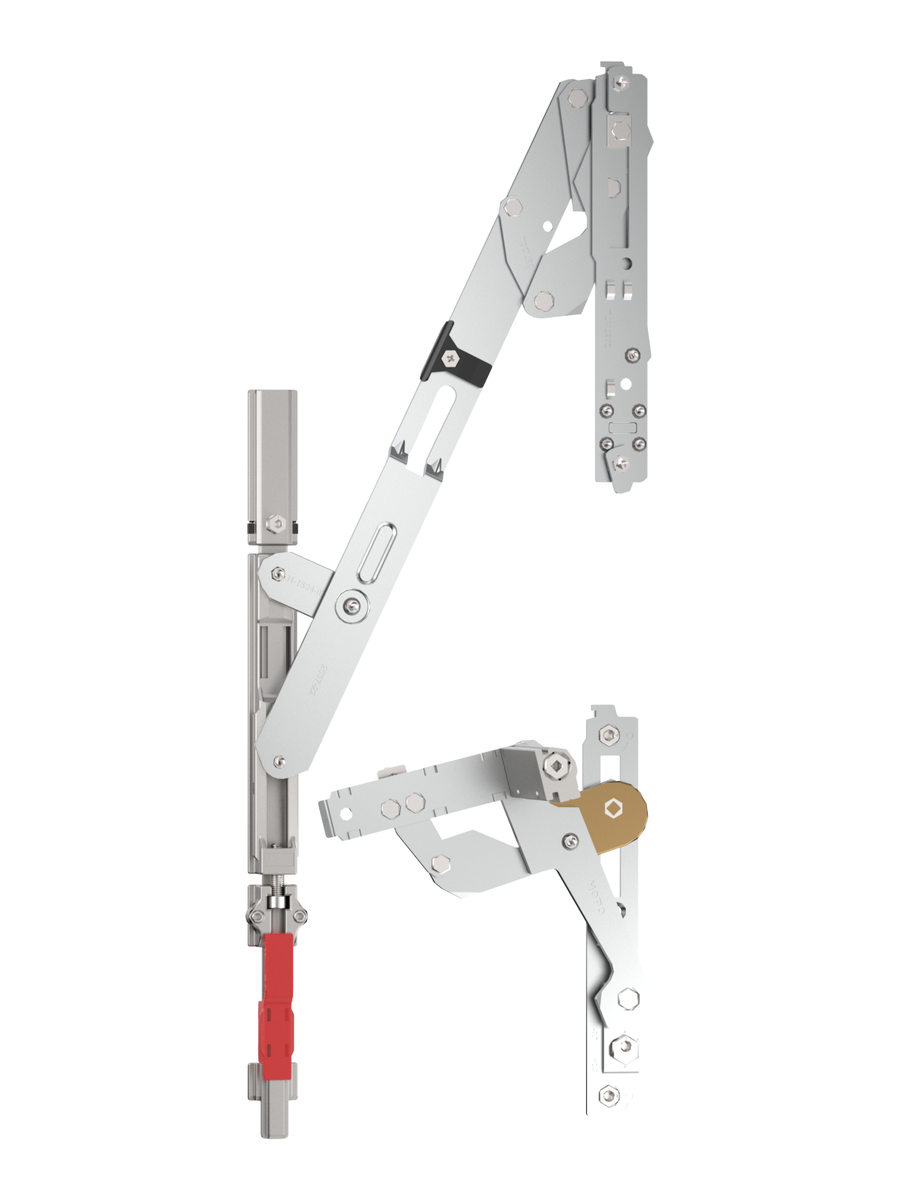

CATT55 Hinge Assembly
CE
Certified
Product Series:HOPO essential
Product Code:CATT55.20.38L/RHE5
Main Material:Stainless Steel
Load Capacity:100 kg
Max. Opening Angle:180°
Handing:Left / Right Handed
Adjustment:Bottom Hinge – Horizontal -0.7/+2.3mm, Vertical +3 mm
Top Hinge – Horizontal ±4mm
Application:Tilt-Turn Window
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.
Download TDS .png)
Installation Manual
Installation Manual
