HardwareWindow Handle
Spindle Handle
Spindle Handle

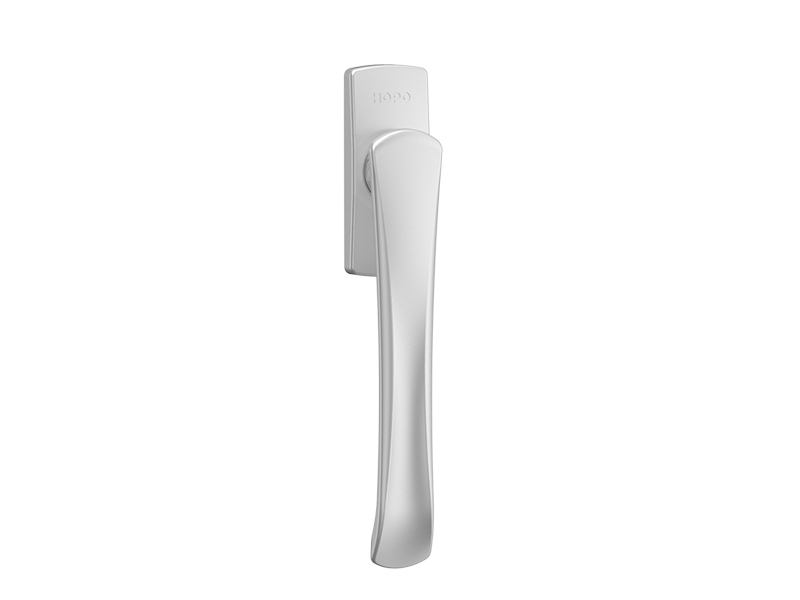

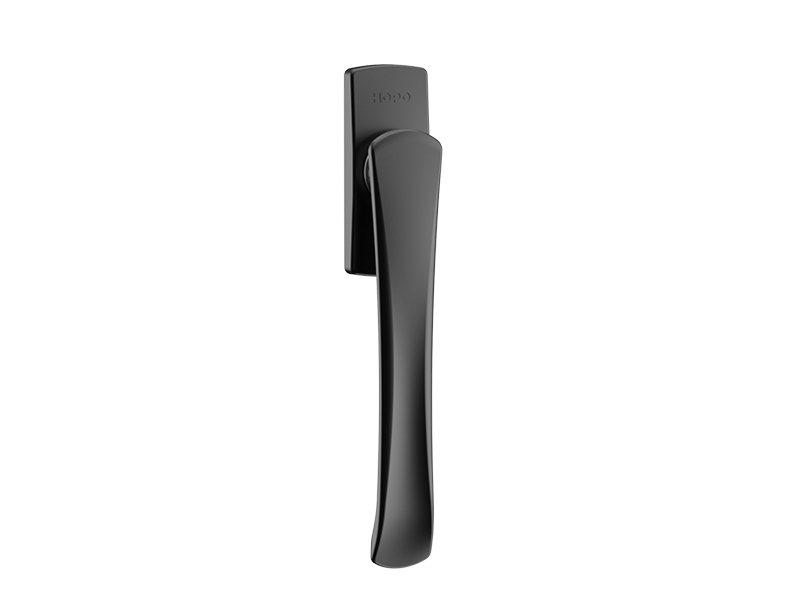

PH171 Handle
CE
Certified
Product Series:HOPO
Product Code:PH171.00.XXH5
Code Description:00—without Spindle, XX—Color
Spindle Options:SP07.07.XXC021X Square Spindle
Application:Casement Window, Bi-folding Window

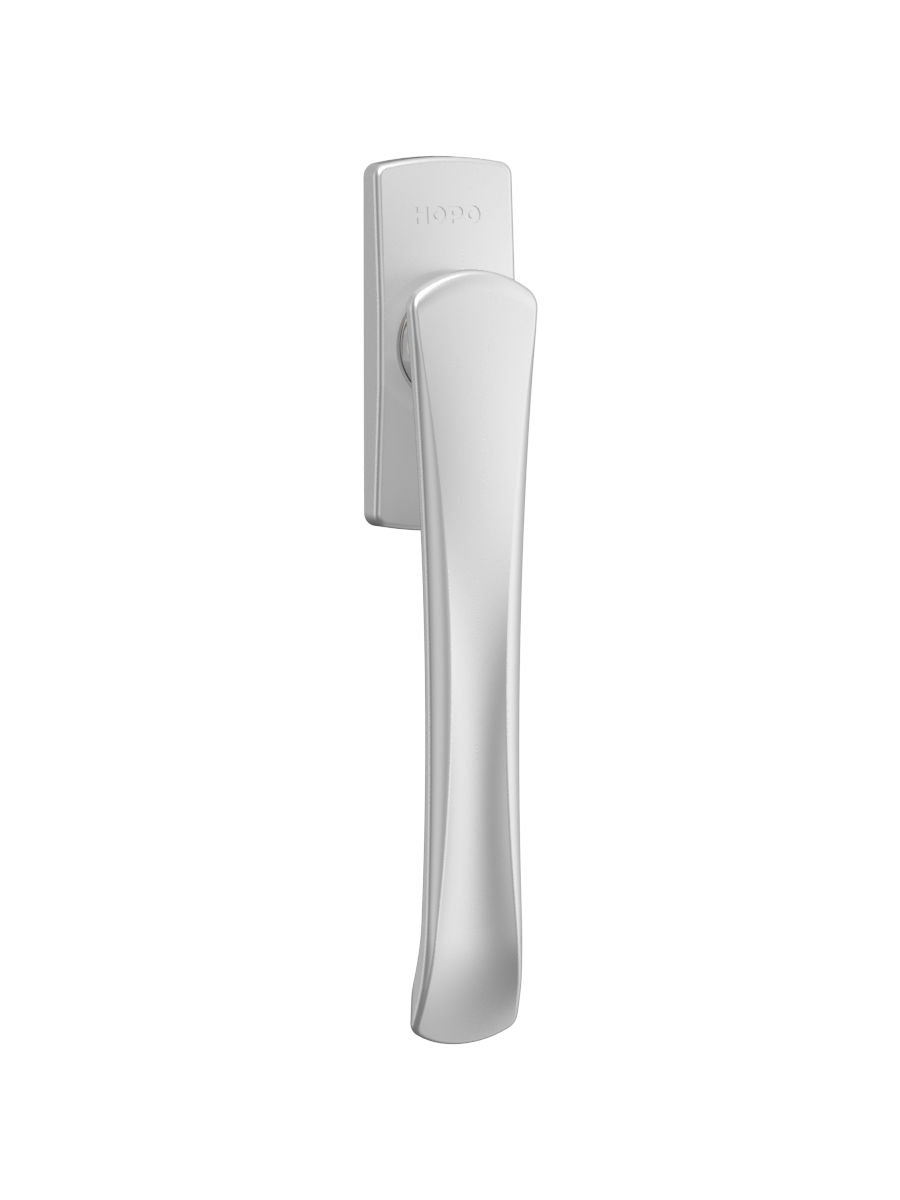

Anodized:011—Silver

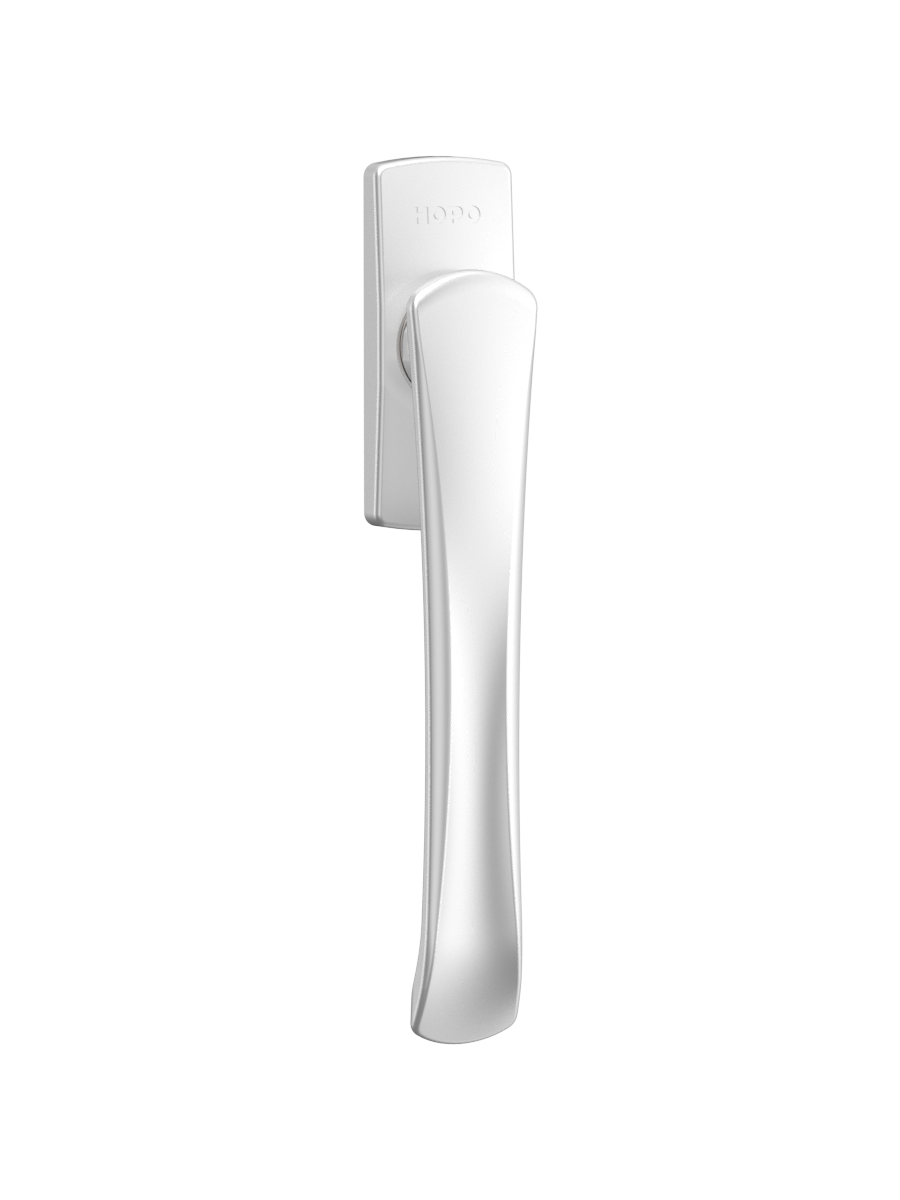

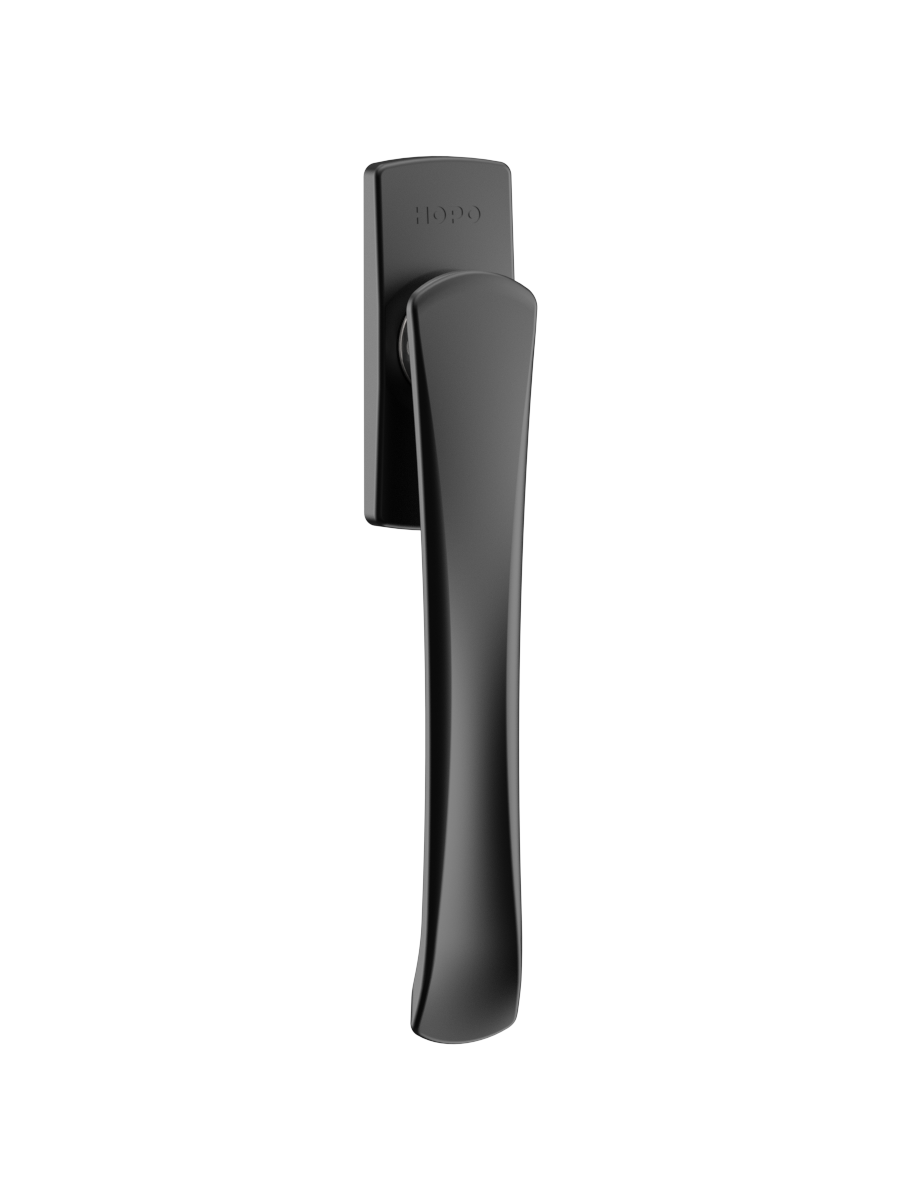

Powder Coating:012—Silver, 047—Dark Antique Copper, 168—Antibacterial Matte Black
Color:
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.

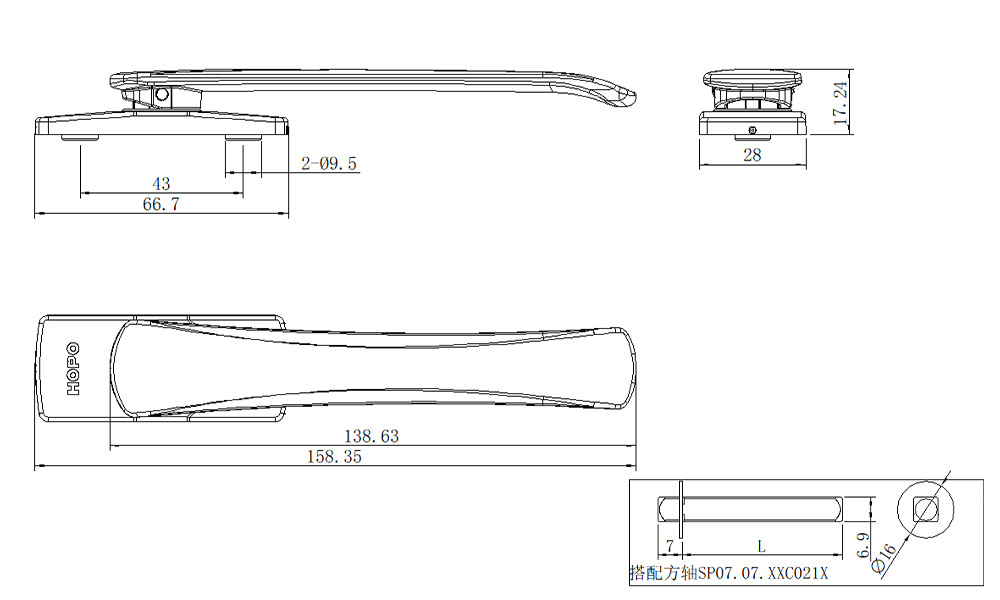

Three-view Drawing
A123123123
Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.
Download TDS .png)
Installation Manual
Installation Manual
Related Hardware
-
R19 RollerProduct Series: HOPO
Product Code: R19.163107.07H5
Width: 16 mm
Minimum Height: 31 mm
Height Adjustment: 7 mm
Load Capacity: 130 kg
Main Material: Stainless Steel
Application: Standard Sliding -
SDLK50 K-Series Lock BodyProduct Series: HOPO
Product Code: SDLK50.33.22C025H5
Backset: 33mm
Faceplate Width: 22mm
Center Distance: 92mm
Transmission Type: Unidirectional Transmission
Surface Treatment: 025—Eco-Friendly White Zinc Coating
Application: Swing Door, 65 Bi-folding Door -
ATR20 Friction StayProduct Series: HOPO
Product Code: ATR20.10C38
Code Description: 10 inches Friction Stay, 10—8 inches, 38—Stainless Steel
Available Sizes: 10 inches
Main Material: Stainless Steel
Application: Euro-Standard C-Groove Casement Window
