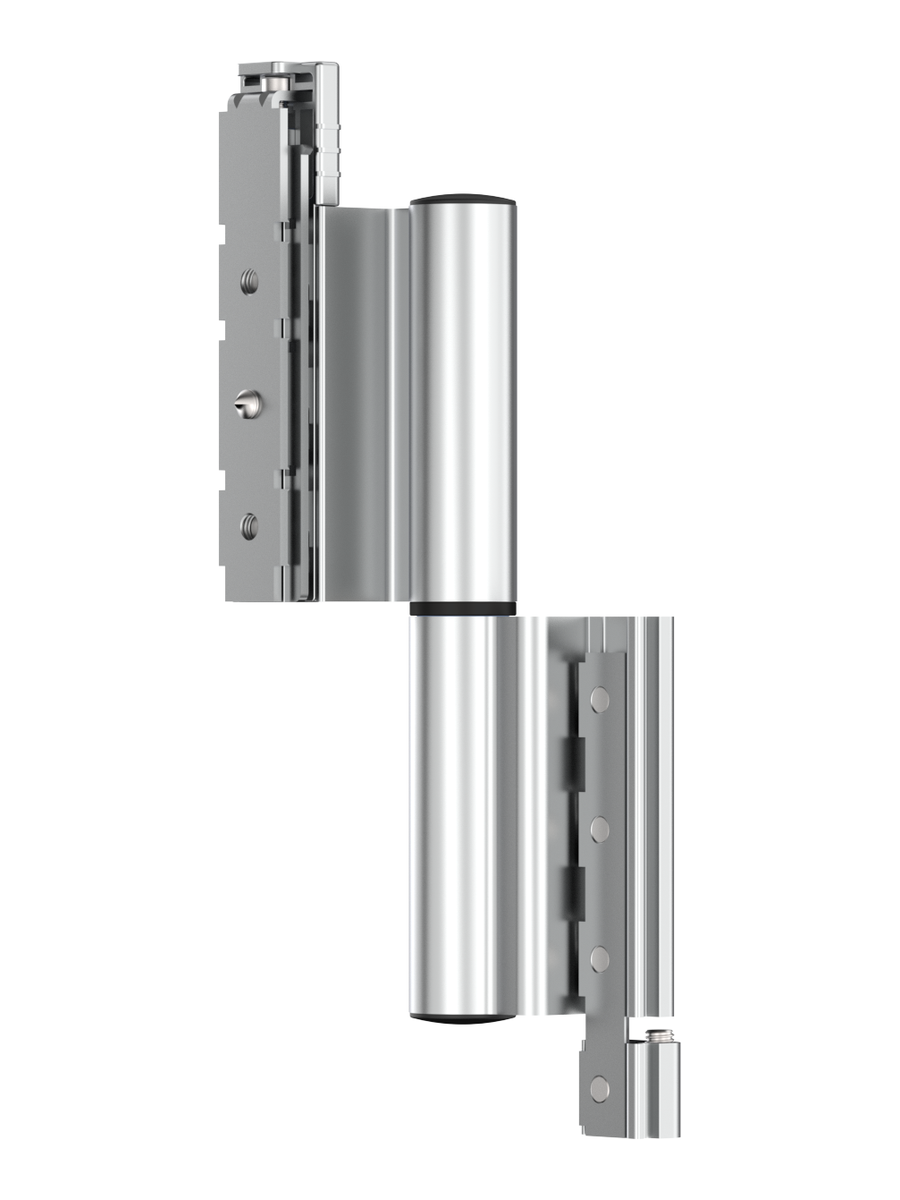

ABH51 Butt Hinge (Glass Sash)
Product Series:HOPO
Product Code:ABH51.00.XXH5
Main Material:Aluminum Alloy
Load Capacity:2 units/120 kg, 3 units/150 kg
Max. Opening Angle:180°
Surface Treatment:011—Silver Anodized, 068—Matte Black Powder Coating, 047—Dark Antique Copper Powder Coating
Application:Non-flush Fram-Sash Euro-Standard C-Groove Swing Door
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Technical drawings and specifications

ABH51.00.XXH5
HOPO Hardware Catalogue 2025 · Catalogue page 77
Three-view Drawing

Listed matching SKUs: ABH51.00.011, ABH51.00.068H5
Source product: BOASS · View full-size drawing
Installation diagram

Listed matching SKUs: ABH51.00.011, ABH51.00.068H5
Source product: BOASS · View full-size drawing
Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.
Download TDS
Installation Manual
Installation Manual
