Nitoly Compression-Sliding Window & Door Systems

NITOLY SERIES

Nitoly Compression-Sliding Window & Door Systems

One compression-sliding hardware family for single-track windows, double-track windows and double-track doors. A 90° handle turn operates the mechanism; when closed, the sash moves laterally to press against the perimeter gasket.

Choose the roller kit and gear case to suit the profile, track arrangement and sash weight. The three configurations share the same operating principle, with standard sash loads of 100, 180 and 220 kg.

Slide Freely. Close with Perimeter Compression.

The handle controls sliding and compression locking in one mechanism. The sash travels along the track, then moves laterally at closure to engage the gasket around the opening.

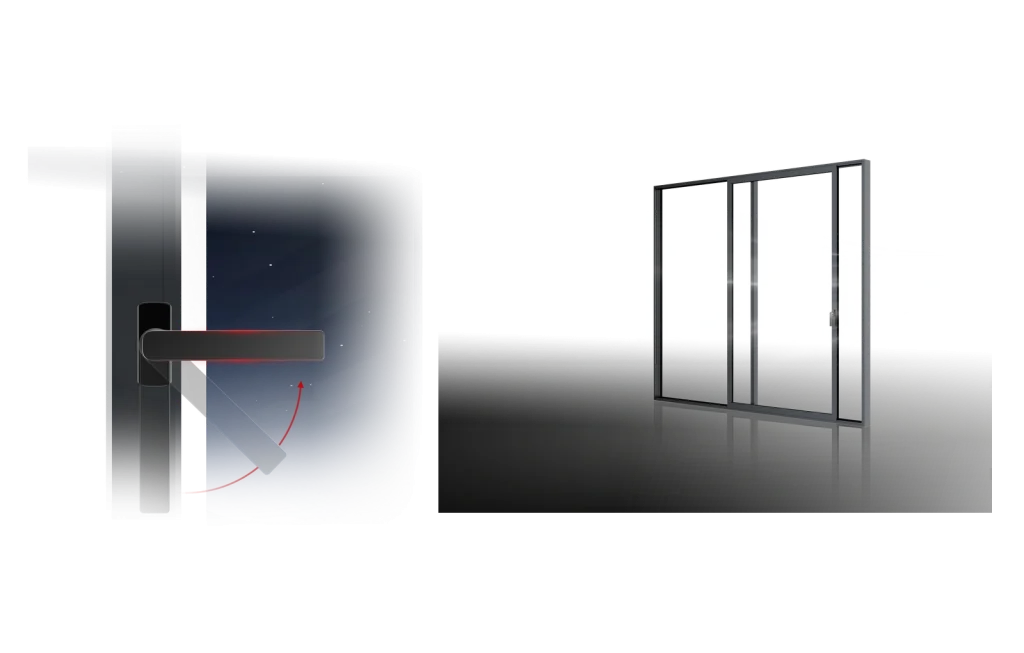

Turn and slide

A 90° handle turn operates the opening and closing mechanism. The active sash can be held at intermediate positions for controlled ventilation or opened more widely for increased airflow.

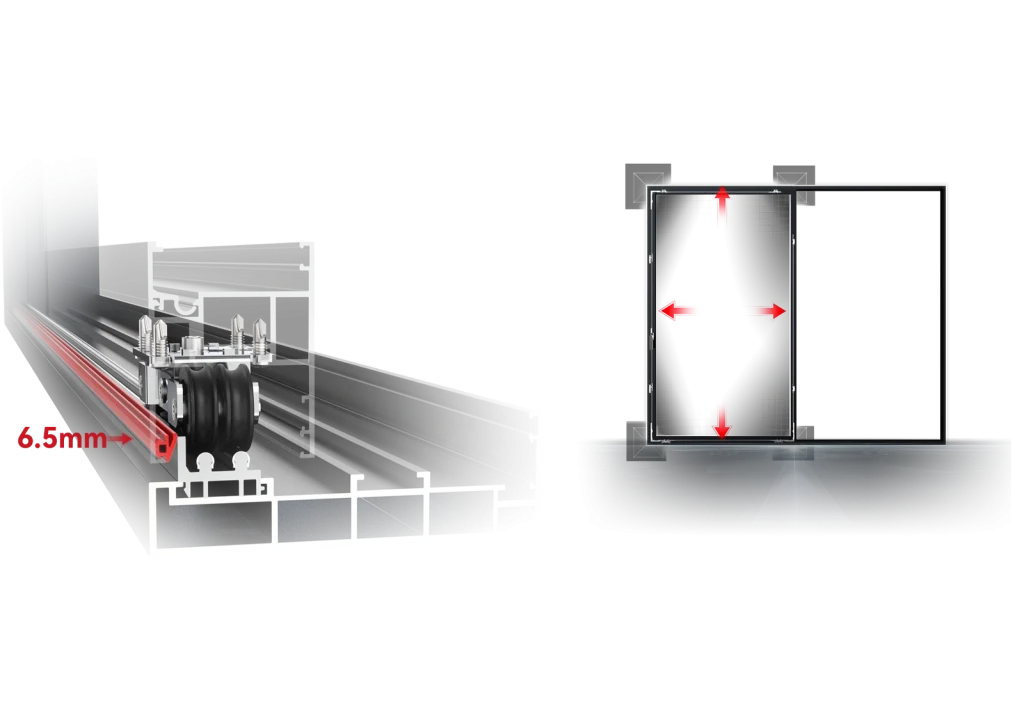

Close and compress

A 6.5 mm lateral movement presses the sash against the gasket. Locking forces are distributed around all four sides for even perimeter compression. The performance of the completed window or door depends on its profile, glazing, gasket and installation.

Choose the Configuration for Your Opening

The 23 mm and 29 mm dimensions describe the height from the track to the mounting surface. They do not describe sash thickness. Select the configuration against the actual profile and calculated sash weight.

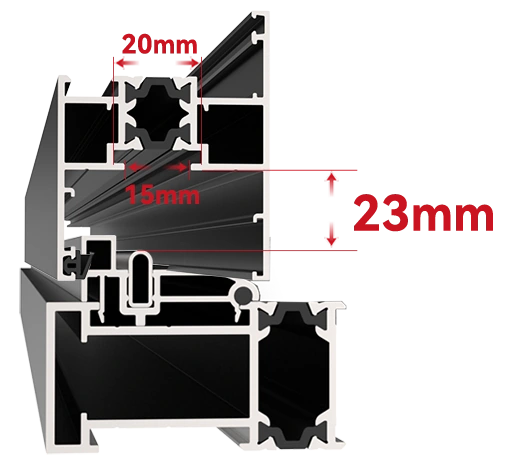

23 mm Single-Track Window

A compact window configuration using the 100 kg single-track roller kit. The catalogue specifies a maximum of 135 kg with auxiliary rollers.

Application: Window
Track arrangement: Single track
Track-to-mounting-surface height: 23 mm
Standard sash load: 100 kg
Load with auxiliary rollers: 135 kg with the specified auxiliary-roller configuration
Gear-case backset: 10.5 mm
Main hardware kit: SSH21.01.38H4

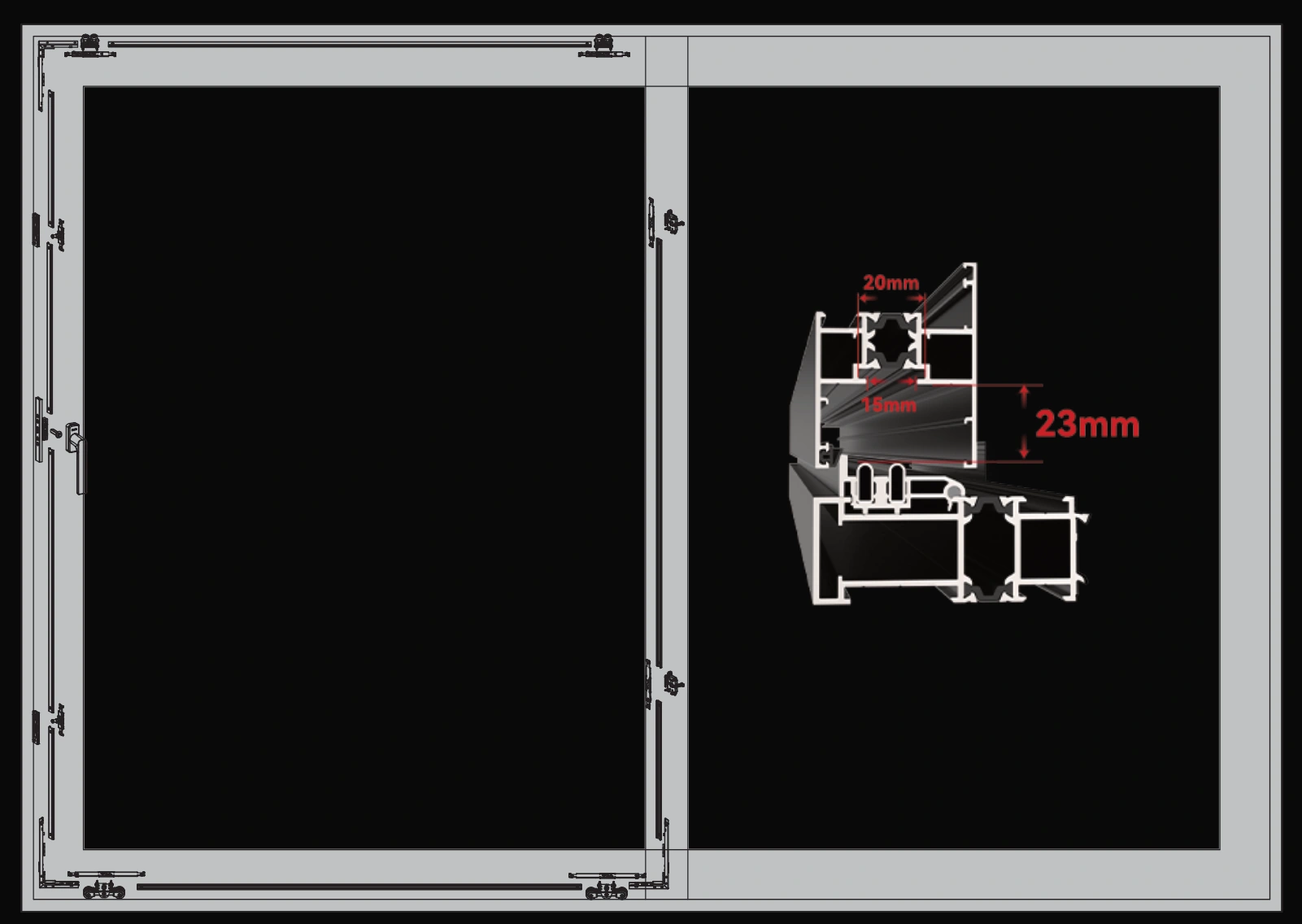

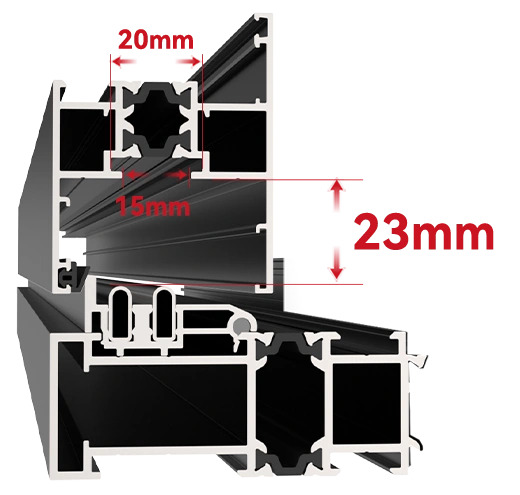

23 mm Double-Track Window

A double-track window configuration using the 180 kg roller kit. Its lower roller differs from the single-track version; select the kit for the actual profile and sash weight.

Application: Window
Track arrangement: Double track
Track-to-mounting-surface height: 23 mm
Standard sash load: 180 kg
Load with auxiliary rollers: Confirm the project-specific configuration
Gear-case backset: 10.5 mm
Main hardware kit: SSH21.02.38H4

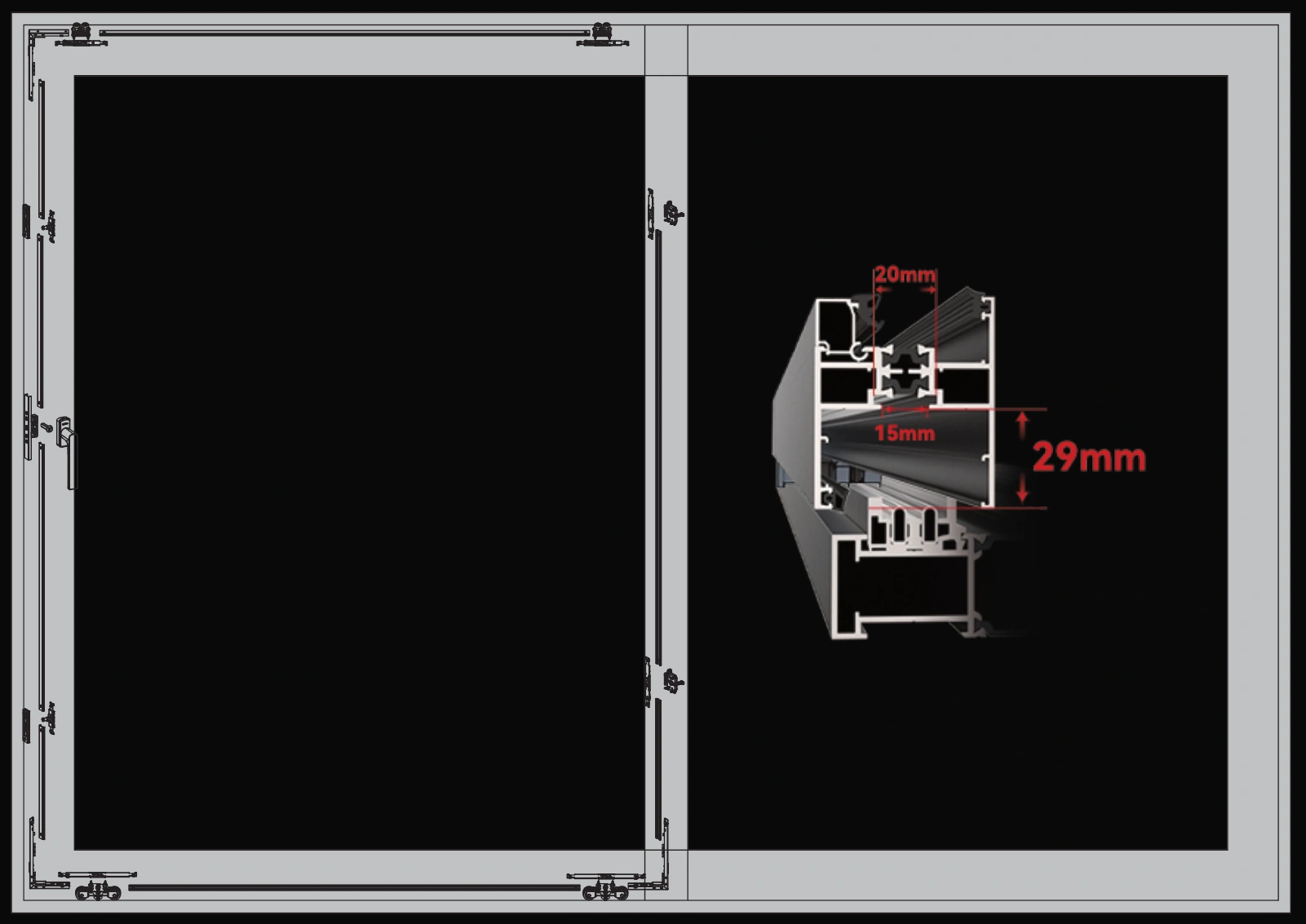

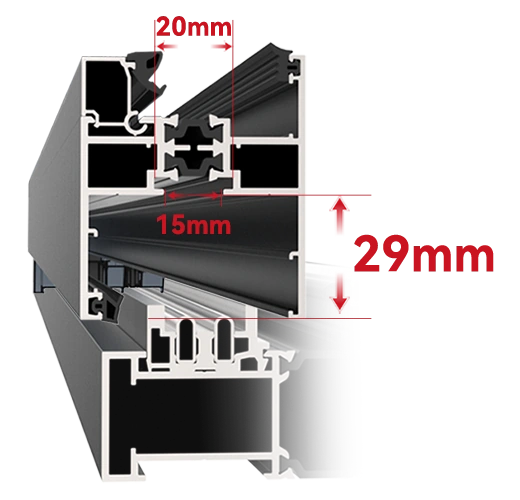

29 mm Double-Track Door

A door configuration with a 220 kg heavy-duty roller kit and a 13 mm gear-case backset. The catalogue specifies a maximum of 300 kg with auxiliary rollers.

Application: Door
Track arrangement: Double track
Track-to-mounting-surface height: 29 mm
Standard sash load: 220 kg
Load with auxiliary rollers: 300 kg with the specified auxiliary-roller configuration
Gear-case backset: 13 mm
Main hardware kit: SSH21.03.38H4

Shared Technical Data

The following data apply to all three configurations. Maximum sash dimensions require a load calculation for the selected profile, glazing weight and roller arrangement.

Minimum sash width: 600 mm
Minimum sash height: 800 mm
Maximum sash width and height: Determined by load calculation
Handle operation: 90° turn
Lateral sealing movement: 6.5 mm
Locking-point adjustment: ±1 mm eccentric adjustment
Hook-lock adjustment range: 11 mm
Corner-drive stroke: 36 mm
Perimeter rod-cutting tolerance: Up to 10 mm cumulative tolerance around the full perimeter

Shared Design Advantages

Slim Sightlines

Slim mullion and sash-frame sightlines leave more space for glazing and daylight. The coordinated hardware supports a restrained window and door appearance.

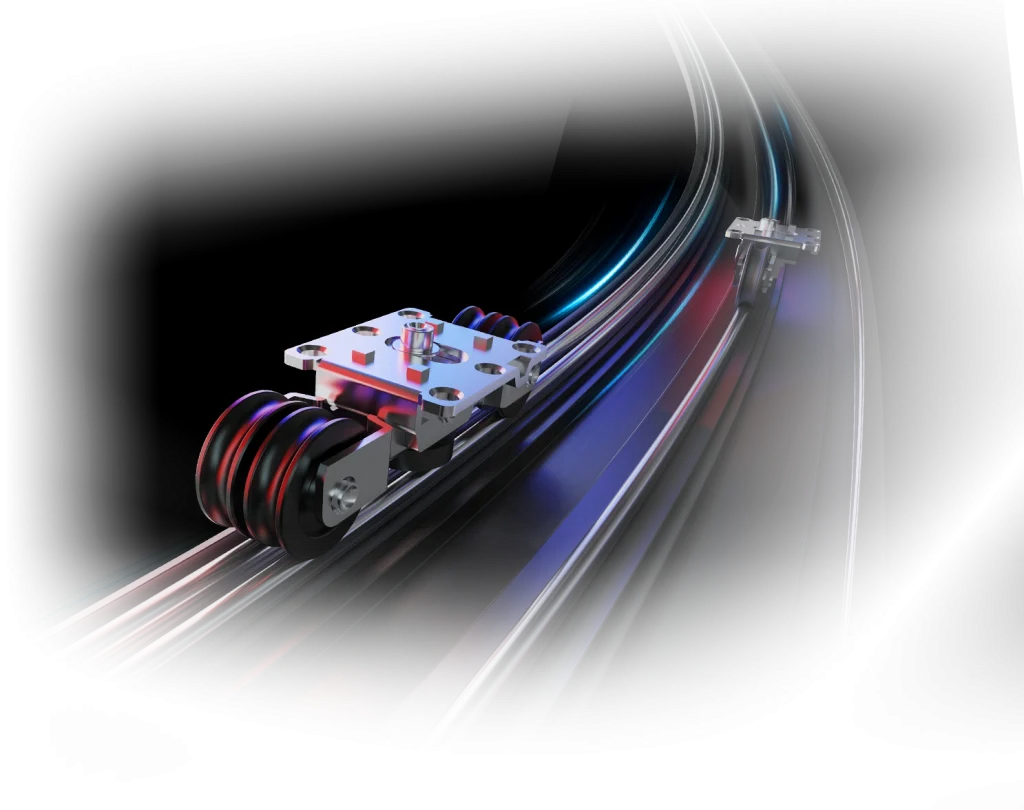

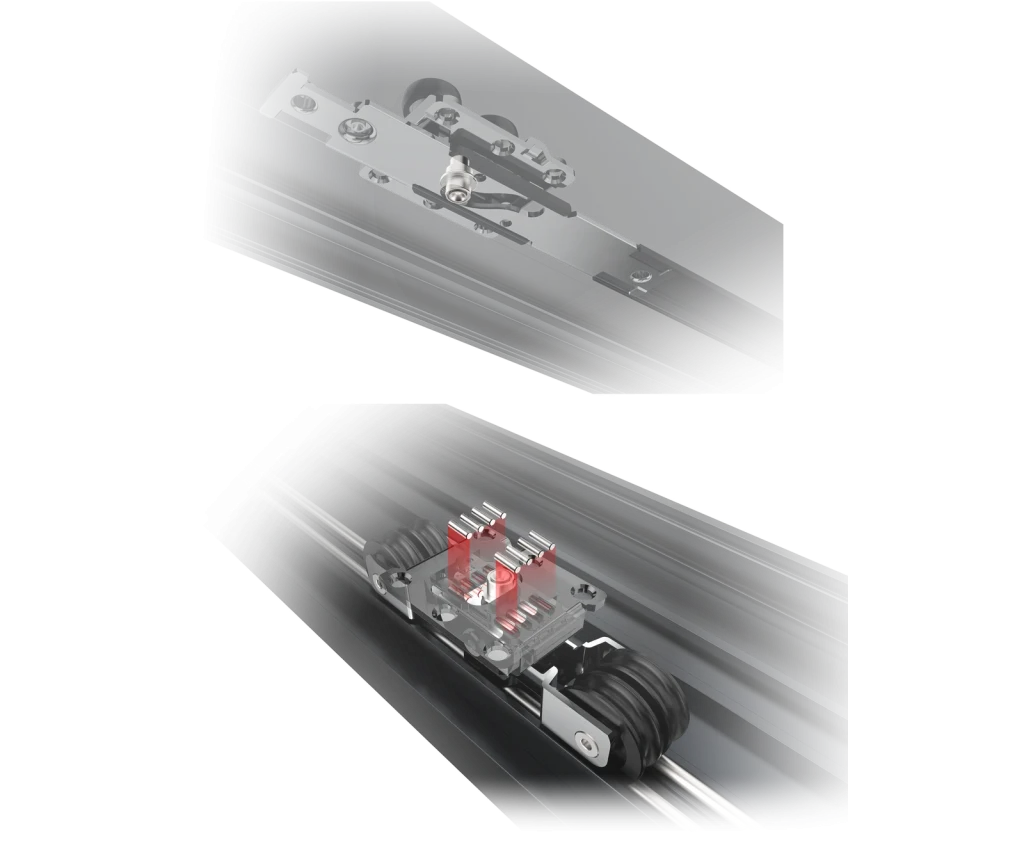

Stable, Low-Resistance Travel

Load-bearing support and anti-derailment protection work together with low-noise polymer rollers. Rolling upper guides, lower rollers and bidirectional needle roller bearings reduce friction through the mechanism. Load capacity follows the selected roller kit and configuration.

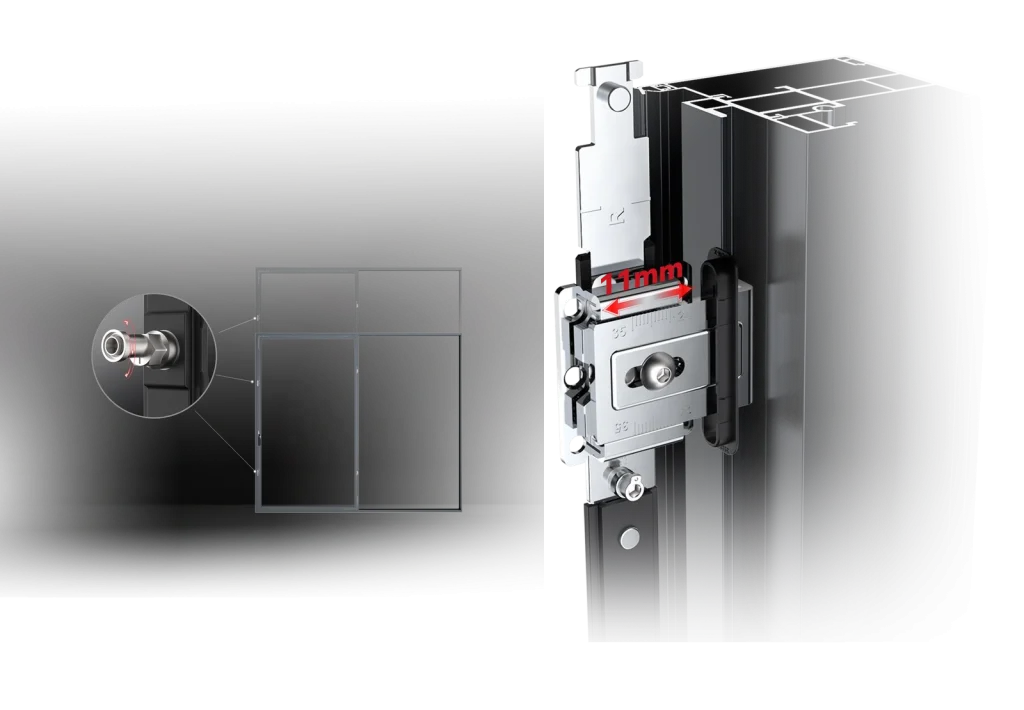

Adjustable Locking Points

Additional locking rods and matching strikers can be selected to suit sash height. Eccentric locking-point adjustment of ±1 mm and an 11 mm hook-lock adjustment range help align the hardware with the selected profile.

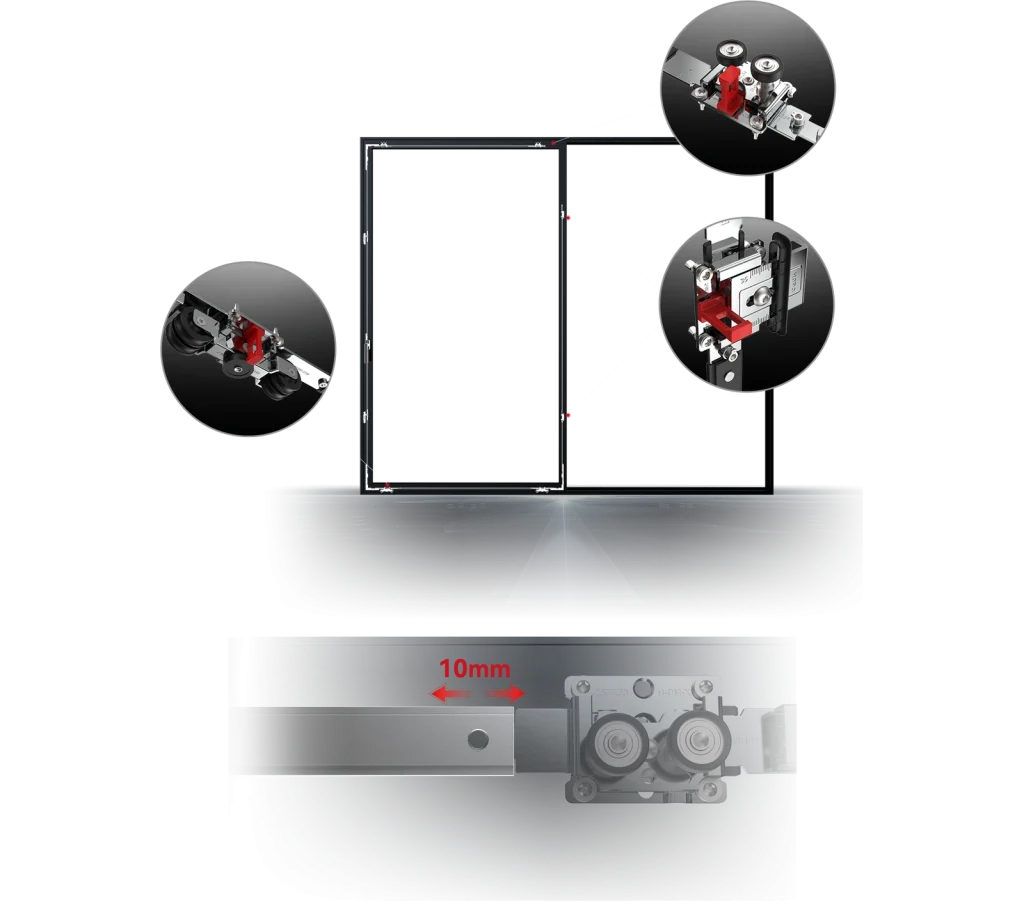

A Defined Starting Position for Installation

Red positioning pieces on the rollers, guide rollers and hook lock establish the initial setup. The 36 mm corner-drive stroke and up to 10 mm cumulative cutting tolerance around the perimeter rods help simplify assembly and alignment.

Hardware Configuration

Start with the common components, then add the gear case and main kit for the selected variant. Each diagram uses the catalogue item numbers shown in the tables. Optional additions depend on sash dimensions and weight.

Common Standard Components

These components apply to all three configurations. Left- and right-hand transmission rods are alternatives: use the stated quantity for the chosen handing only.

1

PH954 Handle

Standard: 1 handle. The printed code is matte black (068); silver (113) and antique bronze (049) are listed as alternative finishes. Confirm the code for the selected finish.

1 pc PH954.00.01C068H5
2

SP07 Square Spindle

Standard: exposed spindle length 35 mm.

1 pc SP07.07.35C021X
4

AB201 Clamp Block Accessory Kit

Standard configuration.

1 set AB201.00.38X
6

Corner Drive

Standard configuration.

1 pc ACT58.00.38H4
7

Compression-Sliding Hook Lock

Standard configuration.

1 pc SDT55.00.38H5
8

Compression-Sliding Locking Rod

Standard configuration.

2 pc LPE63.26.38X
9

Compression-Sliding Striker

Standard configuration.

2 pc SLP63.00.38X
10

Compression-Sliding Upper Transmission Rod - Left

Standard alternative: choose the handing for the sash opening direction. Quantity 3 applies to the selected handing, not both. Use with the upper roller.

3 pc AB24.01.1T38LX
10

Compression-Sliding Upper Transmission Rod - Right

Standard alternative: choose the handing for the sash opening direction. Quantity 3 applies to the selected handing, not both. Use with the upper roller.

3 pc AB24.01.1T38RX
11

Compression-Sliding Lower Transmission Rod - Left

Standard alternative: choose the handing for the sash opening direction. Quantity 2 applies to the selected handing, not both. Use with the lower roller.

2 pc AB24.02.1T38LX
11

Compression-Sliding Lower Transmission Rod - Right

Standard alternative: choose the handing for the sash opening direction. Quantity 2 applies to the selected handing, not both. Use with the lower roller.

2 pc AB24.02.1T38RX

Variant-Specific Components

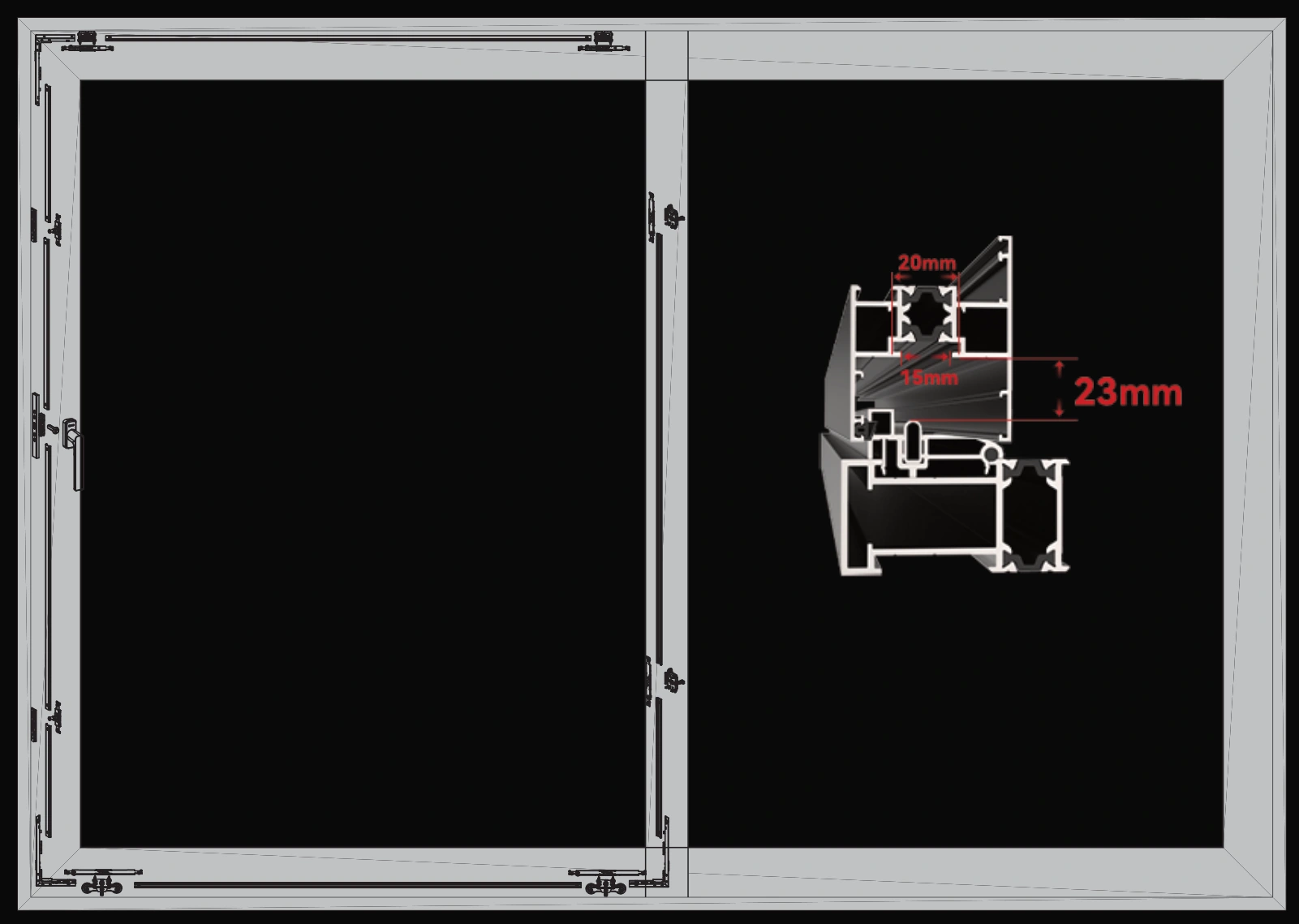

23 mm Single-Track Window

Standard Components

3

N45 Gear Case

Standard: 10.5 mm backset.

1 pc AGC45.10.384H5
5

Light-Duty Single-Track Compression-Sliding Kit

Standard: 100 kg sash load; 23 mm track-to-mounting-surface height.

1 set SSH21.01.38H4

Optional Rollers

12

Light-Duty Compression-Sliding Upper Roller

Optional: 1 additional centre upper roller is recommended when sash width exceeds 1,500 mm.

1 pc AHR21.011.38X
12

Light-Duty Single-Track Compression-Sliding Lower Roller

Optional: 1 additional centre lower roller is recommended when sash width exceeds 1,500 mm.

1 pc AHR21.021.38X

23 mm Double-Track Window

Standard Components

3

N45 Gear Case

Standard: 10.5 mm backset.

1 pc AGC45.10.384H5
5

Light-Duty Double-Track Compression-Sliding Kit

Standard: 180 kg sash load; 23 mm track-to-mounting-surface height.

1 set SSH21.02.38H4

Optional Rollers

12

Light-Duty Compression-Sliding Upper Roller

Optional: 1 additional centre upper roller is recommended when sash width exceeds 1,500 mm.

1 pc AHR21.011.38X
12

Light-Duty Compression-Sliding Lower Roller

Optional: 1 additional centre lower roller is recommended when sash width exceeds 1,500 mm.

1 pc AHR21.022.38X

29 mm Double-Track Door

Standard Components

3

N45 Gear Case

Standard: 13 mm backset.

1 pc AGC45.13.384H5
5

Heavy-Duty Double-Track Compression-Sliding Kit

Standard: 220 kg sash load; 29 mm track-to-mounting-surface height.

1 set SSH21.03.38H4

Optional Rollers

12

Heavy-Duty Compression-Sliding Upper Roller

Optional: 1 additional centre upper roller is recommended when sash width exceeds 1,500 mm.

1 pc AHR21.013.38X
12

Heavy-Duty Double-Track Compression-Sliding Lower Roller

Optional: 1 additional centre lower roller is recommended when sash width exceeds 1,500 mm.

1 pc AHR21.023.38X

Size-Dependent Additions

For sash widths over 1,500 mm, the catalogue recommends one additional centre upper roller and one additional centre lower roller, each with its matching transmission rod. Use the roller codes specified for the selected variant. Add locking rods and strikers as required by sash height; an additional hook lock is recommended above 2,200 mm.

12

Compression-Sliding Upper Transmission Rod - Left

Optional companion to the additional upper roller: choose left or right for the sash opening direction.

1 pc AB24.01.1T38LX
12

Compression-Sliding Upper Transmission Rod - Right

Optional companion to the additional upper roller: choose left or right for the sash opening direction.

1 pc AB24.01.1T38RX
12

Compression-Sliding Lower Transmission Rod - Left

Optional companion to the additional lower roller: choose left or right for the sash opening direction.

1 pc AB24.02.1T38LX
12

Compression-Sliding Lower Transmission Rod - Right

Optional companion to the additional lower roller: choose left or right for the sash opening direction.

1 pc AB24.02.1T38RX
13

Compression-Sliding Locking Rod

Optional additional locking point: add locking rods and matching strikers as required by sash height. Catalogue quantity: 1 of each.

1 pc LPE63.26.38X
13

Compression-Sliding Striker

Optional additional locking point: add with the matching locking rod as required by sash height. Catalogue quantity: 1 of each.

1 pc SLP63.00.38X
14

Compression-Sliding Hook Lock

Optional: 1 additional hook lock is recommended when sash height exceeds 2,200 mm.

1 pc SDT55.00.38H5
14

Compression-Sliding Upper Transmission Rod - Left

Optional companion to the additional hook lock: choose left or right for the sash opening direction.

1 pc AB24.01.1T38LX
14

Compression-Sliding Upper Transmission Rod - Right

Optional companion to the additional hook lock: choose left or right for the sash opening direction.

1 pc AB24.01.1T38RX

Optional Soft Closing

An optional damper slows the final closing movement. Select it for the actual sash weight and confirm compatibility with the chosen configuration. Damper weight limits are separate from the load capacity of the main roller kit.

The catalogue lists the options below without a quantity. Confirm the damper quantity for the project. A damper rated up to 150 kg must not be presented as suitable for a 180, 220 or 300 kg sash.

—

Compression-Sliding Soft-Close Damper

Optional alternative, selected for actual sash weight up to 50 kg. The catalogue does not specify a quantity. Confirm damper compatibility and quantity for the project.

— BD407.00.38H5
—

Compression-Sliding Soft-Close Damper

Optional alternative, selected for actual sash weight up to 100 kg. The catalogue does not specify a quantity. Confirm damper compatibility and quantity for the project.

— BD407.10.38H5
—

Compression-Sliding Soft-Close Damper

Optional alternative, selected for actual sash weight up to 150 kg. The catalogue does not specify a quantity. Confirm damper compatibility and quantity for the project.

— BD407.20.38H5
