Nitoly Concealed-Hinge Swing Door System

NITOLY SERIES

Nitoly Concealed-Hinge Swing Door System

A coordinated concealed-hinge hardware system for single- and double-leaf swing doors. Integrated multipoint locking, adjustable hinges and extension shoot bolts bring together clean detailing, controlled operation and practical installation.

The catalogue specifies a standard load of 150 kg with two hinges and a maximum load of 180 kg with three hinges. Dedicated active- and passive-leaf components support double-door configurations.

Technical Information

Catalogue application range. The stated height range below applies to single-leaf doors; confirm profile compatibility, door geometry, hinge quantity and the final locking configuration before specification.

Standard load: 150 kg with 2 hinges
Maximum load: 180 kg with 3 hinges
Sash width: 450-1,200 mm
Single-leaf sash height: 1,850-3,010 mm
Hinge adjustment: 5 mm vertical; 9.5 mm lateral
Striker adjustment: ±1.5 mm at the striker and passive-leaf striker
Single-leaf shoot-bolt plate: ±1 mm adjustment
Extension shoot bolts: 400 / 750 / 1,110 mm; select to suit door height
Catalogue cycle test: 100,000 opening and closing cycles

NITOLY SERIES

Solution Advantages

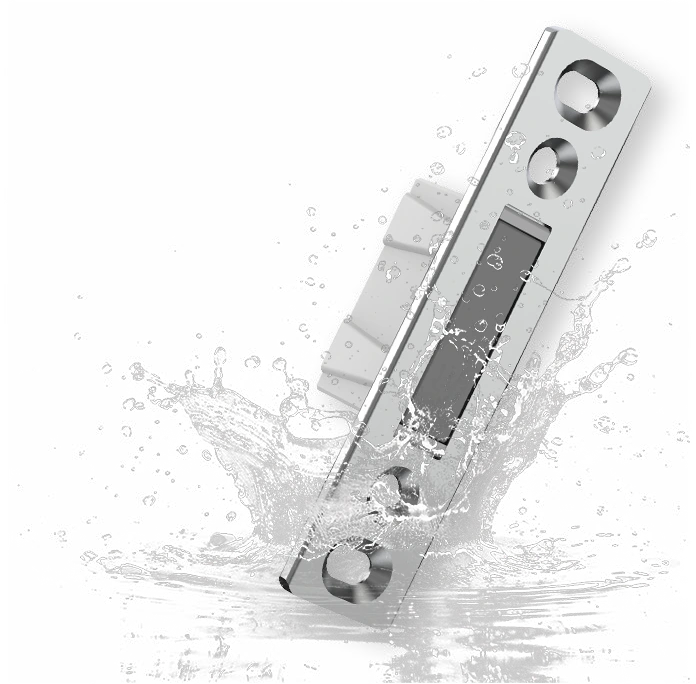

Durability in Every Detail

The proprietary Nitoly process is designed to resist coastal salt spray, acid rain, corrosion and long-term aging. A brushed, silver-anodized hinge finish adds resistance to fingerprints and scratches.

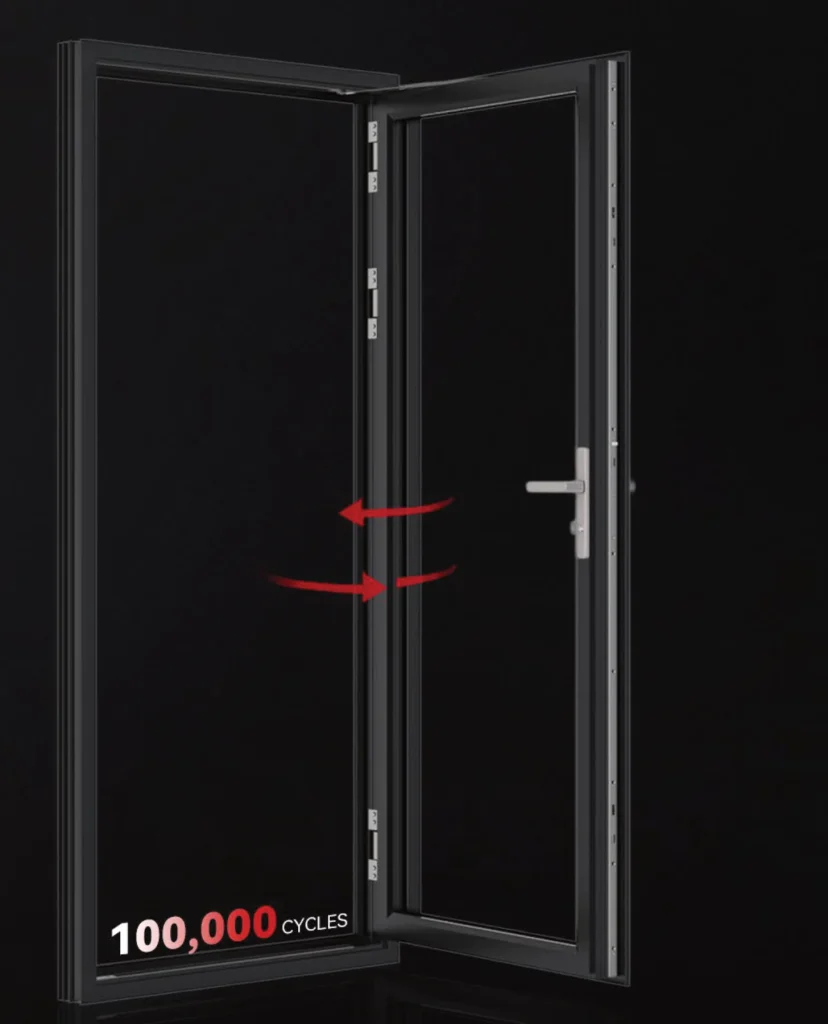

Built for Repeated Use

The Nitoly catalogue reports testing to 100,000 opening and closing cycles for frequent, heavy-duty operation. Concealed hinges support a clean door appearance while carrying the specified sash load.

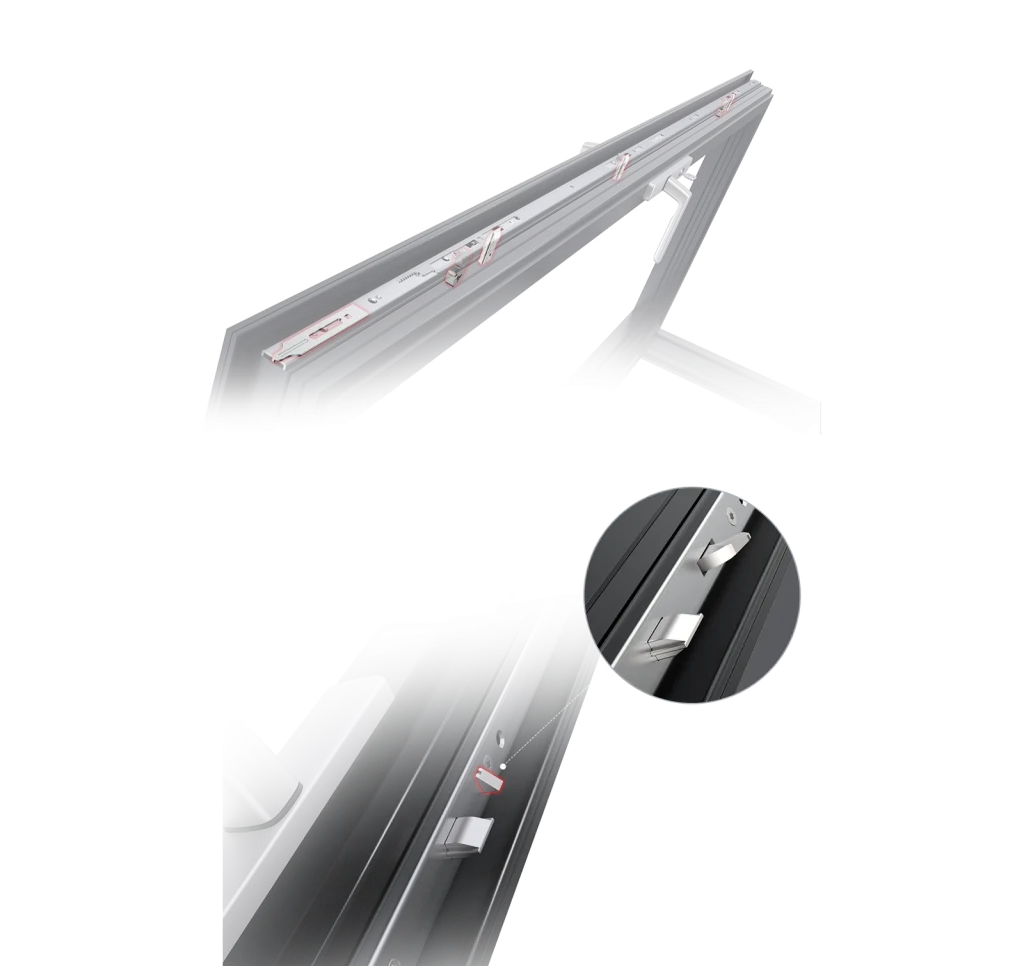

Coordinated Multipoint Locking

Dual-sided beveled latches and hook bolts work together along the door edge. Closing the door activates pre-locking, extending the deadbolt and hook bolt together for initial sealing and security.

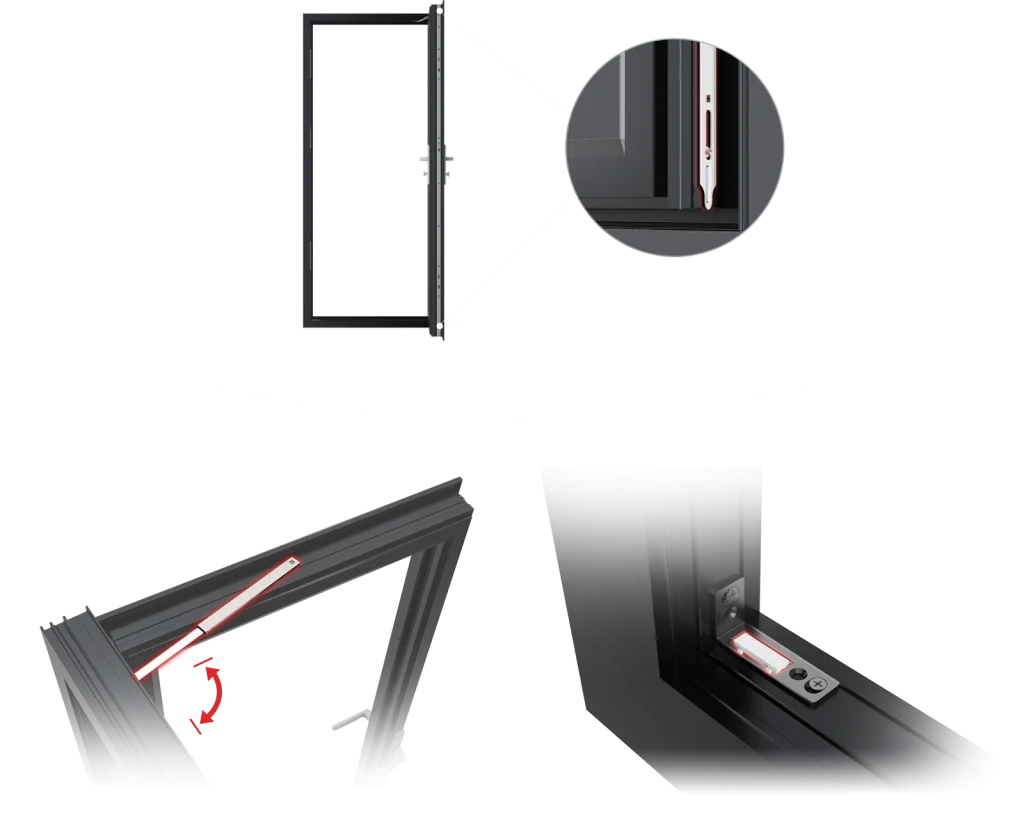

Protection at the Door Perimeter

Compatible top and bottom shoot bolts support additional locking and sealing. A dust-protected shoot-bolt plate helps keep the threshold interface clear, while the optional friction stay limits opening to reduce impact damage.

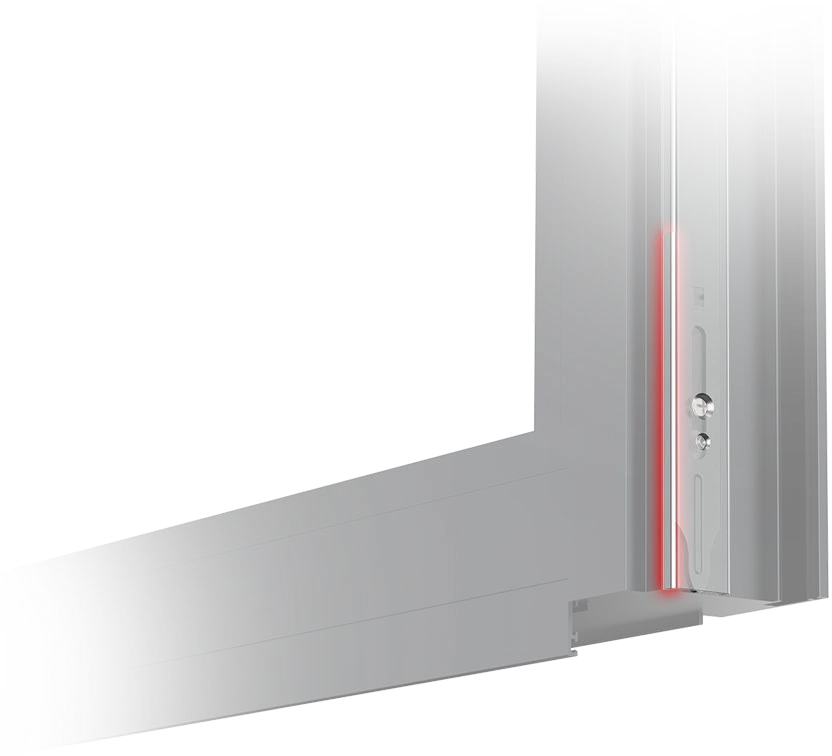

A Cleaner Installation Process

The multipoint lock and passive-leaf shoot bolt use an integrated faceplate. Concealing the shoot-bolt drive beneath that plate avoids profile-chamber routing and special corner cleats, simplifying assembly and parts management.

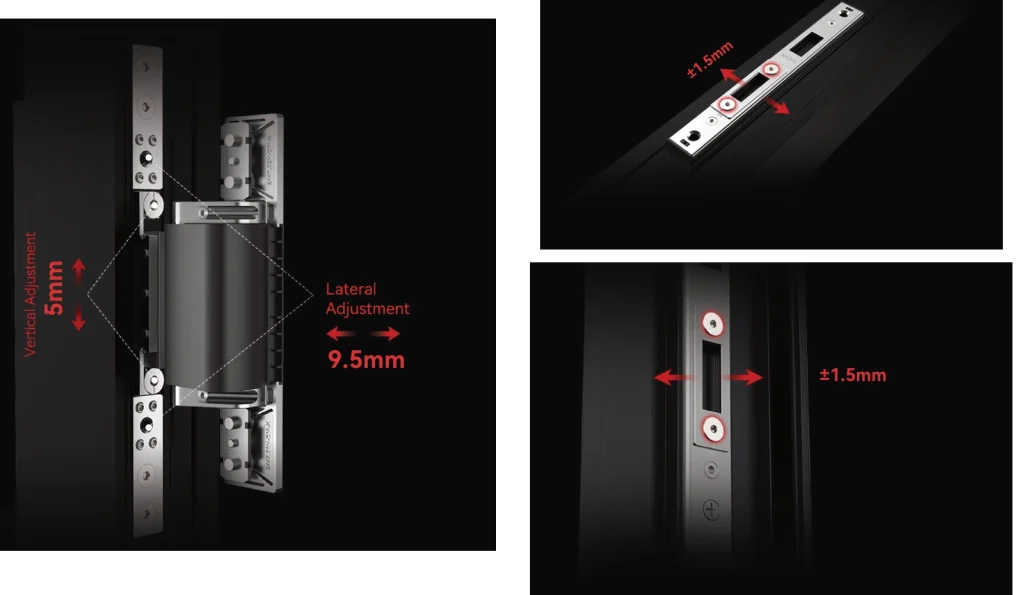

Precise Alignment After Installation

The clamp-mounted hinge provides 5 mm vertical and 9.5 mm lateral adjustment. Eccentric adjustment at the striker and passive-leaf shoot-bolt striker provides ±1.5 mm for fine-tuning the closing position.

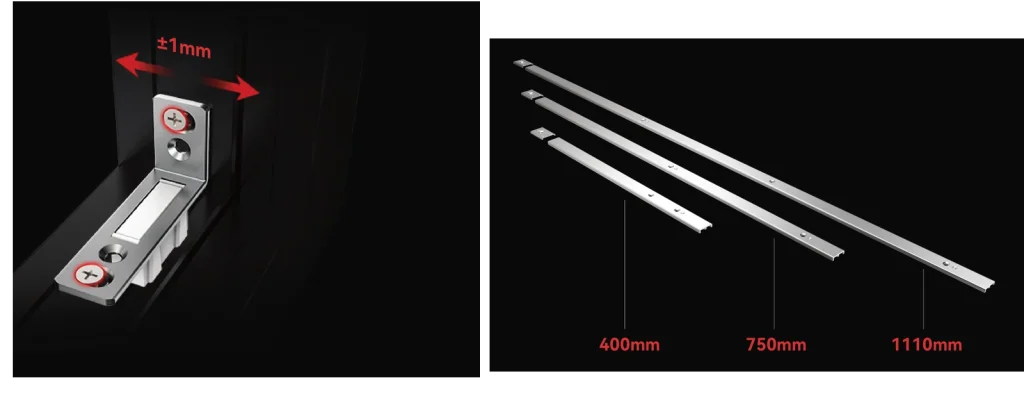

Extension Options for Different Door Heights

Select 400 mm, 750 mm or 1,110 mm extension shoot bolts for the corresponding door-height range. The single-leaf shoot-bolt plate also provides ±1 mm adjustment for final alignment.

NITOLY SERIES

Solution Configuration

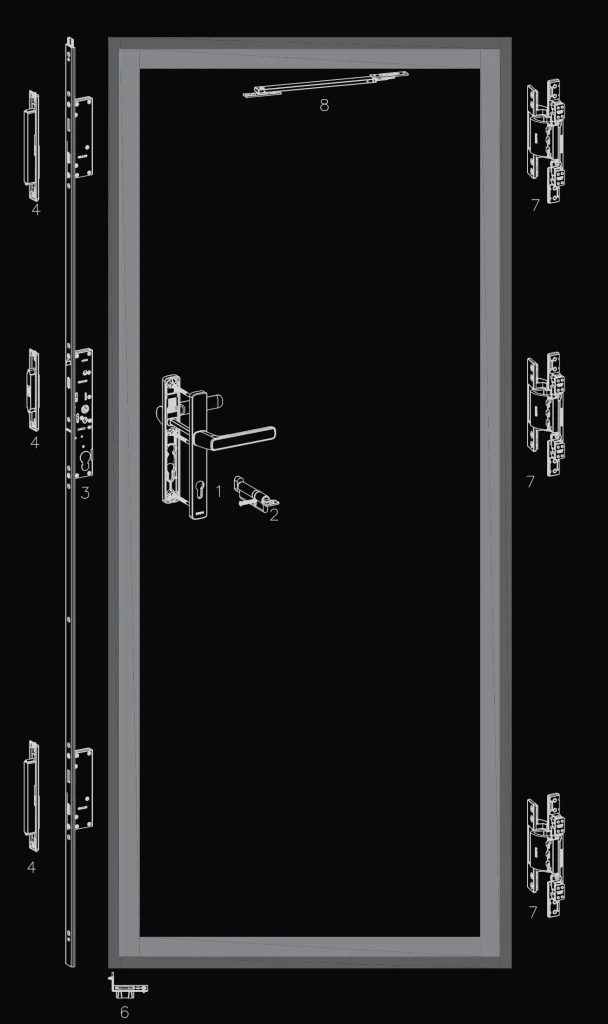

The diagram illustrates the single-leaf arrangement. The rows below list that configuration first, followed by the active and passive leaves of the double-door arrangement. Select the applicable arrangement; these are separate configurations, not one combined kit. For each leaf, choose one extension length to match the stated door-height band. Friction stays are optional. Hinge quantities are shown as listed in each catalogue table: two hinges support 150 kg, while three support 180 kg. Confirm the extension requirement for doors below 2,090 mm with HOPO.

1

Single Leaf: 605 Door Handle Assembly

With cylinder hole. Catalogue finish options: 168 Antibacterial Matte Black, 012 Silver, 047 Antique Bronze. Select one finish; code shown as printed.

1 set HSD605.168168H5
2

Single Leaf: C99 Lock Cylinder

Other specifications available.

1 pc C99.7030C4T029
3

Single Leaf: Integrated Multipoint Lock

Single-leaf table code, retained as printed.

1 pc SDLH57.25.24C384H5
4

Single Leaf: Door Striker

Single-leaf configuration.

1 set ALPD53.00.384H5
5-1

Single Leaf: 400 mm Extension Shoot Bolt

For leaf height 2,090-2,310 mm. Choose one of items 5-1, 5-2 or 5-3.

1 pc ASB23.00.40C384X
5-2

Single Leaf: 750 mm Extension Shoot Bolt

For leaf height 2,310-2,660 mm. Alternative to items 5-1 and 5-3.

1 pc ASB23.00.75C384X
5-3

Single Leaf: 1,110 mm Extension Shoot Bolt

For leaf height 2,660-3,010 mm. Alternative to items 5-1 and 5-2.

1 pc ASB23.00.111C384X
6

Single Leaf: Shoot Bolt Plate

Single-leaf shoot-bolt plate.

2 pc ASLP23.00.38X
7

Single Leaf: Concealed Door Hinge

Catalogue standard quantity: 2 hinges for 150 kg. Use 3 hinges for 180 kg.

2 pc HBH103.00.38H5
8

Single Leaf: Friction Stay

Optional accessory.

1 pc ATR22.00.38H5
1

Double Door Active Leaf: 605 Door Handle Assembly

With cylinder hole. Catalogue finish options: 168 Antibacterial Matte Black or 012 Silver. Select one finish.

1 set HSD605.168168H5
2

Double Door Active Leaf: C99 Lock Cylinder

Other specifications available.

1 pc C99.7030C4T029
3

Double Door Active Leaf: Integrated Multipoint Lock

Double-leaf table code, retained as printed.

1 pc SDLH57.25.24C38H5
4-1

Double Door Active Leaf: 400 mm Extension Shoot Bolt

For leaf height 2,090-2,310 mm. Choose one of items 4-1, 4-2 or 4-3.

1 pc ASB23.00.40C38X
4-2

Double Door Active Leaf: 750 mm Extension Shoot Bolt

For leaf height 2,310-2,660 mm. Alternative to items 4-1 and 4-3.

1 pc ASB23.00.75C38X
4-3

Double Door Active Leaf: 1,110 mm Extension Shoot Bolt

For leaf height 2,660-3,010 mm. Alternative to items 4-1 and 4-2.

1 pc ASB23.00.111C38X
5

Double Door Active Leaf: Dust-Proof Shoot Bolt Plate

Double-leaf active-leaf configuration.

2 pc ASLP22.00.38X
6

Double Door Active Leaf: Concealed Door Hinge

Quantity 3 as listed in this table. 2 hinges: 150 kg; 3 hinges: 180 kg.

3 pc HBH103.00.38H5
7

Double Door Active Leaf: Friction Stay

Optional accessory.

1 pc ATR22.00.38H5
8

Double Door Passive Leaf: 615 Door Handle Assembly

Without cylinder hole. Catalogue finish options: 168 Antibacterial Matte Black or 012 Silver. Select one finish.

1 set HSD615.168168H5
9-1

Double Door Passive Leaf: 400 mm Extension Shoot Bolt

For leaf height 2,090-2,310 mm. Choose one of items 9-1, 9-2 or 9-3.

1 pc ASB23.00.40C38X
9-2

Double Door Passive Leaf: 750 mm Extension Shoot Bolt

For leaf height 2,310-2,660 mm. Alternative to items 9-1 and 9-3.

1 pc ASB23.00.75C38X
9-3

Double Door Passive Leaf: 1,110 mm Extension Shoot Bolt

For leaf height 2,660-3,010 mm. Alternative to items 9-1 and 9-2.

1 pc ASB23.00.111C38X
10

Double Door Passive Leaf: Shoot Bolt

Integrated striker function.

2 pc ASB22.25.24C38H5
11

Double Door Passive Leaf: Concealed Door Hinge

Quantity 3 as listed in this table. 2 hinges: 150 kg; 3 hinges: 180 kg.

3 pc HBH103.00.38H5
