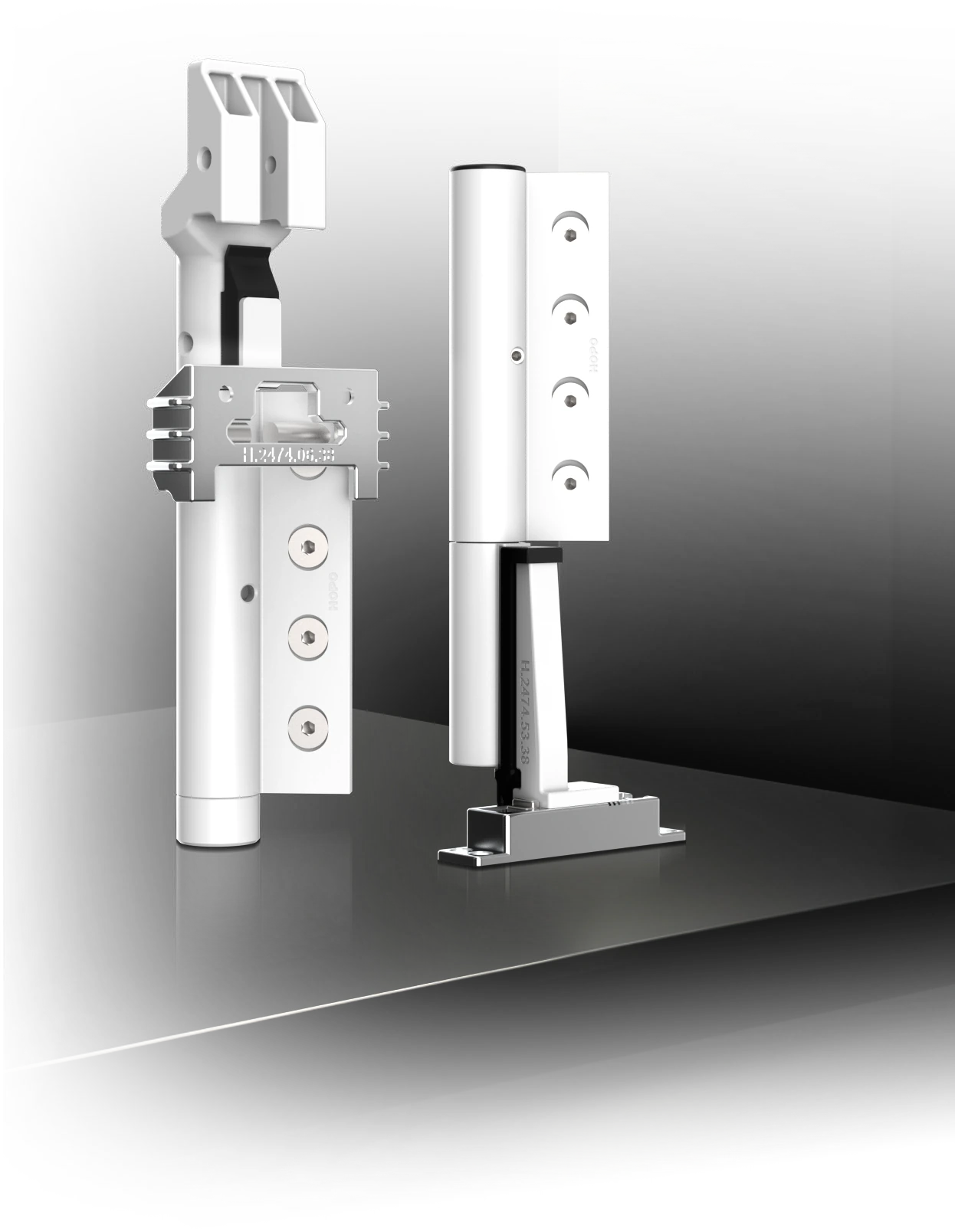

A coordinated top-and-bottom load-bearing hardware system for large folding doors. The Nitoly G53 combines adaptive roller guidance, upper and lower corner hinges and concealed adjustment with a catalogue standard load of 200 kg.
Inward and outward folding, odd-number panel combinations and symmetrical even-number arrangements suit balconies, sunrooms, courtyards and outdoor or semi-outdoor commercial spaces.
Catalogue application range for the G53 system. Confirm panel layout, profile compatibility, glazing weight and site loading before final specification; the height range below is reproduced from the catalogue.
NITOLY SERIES

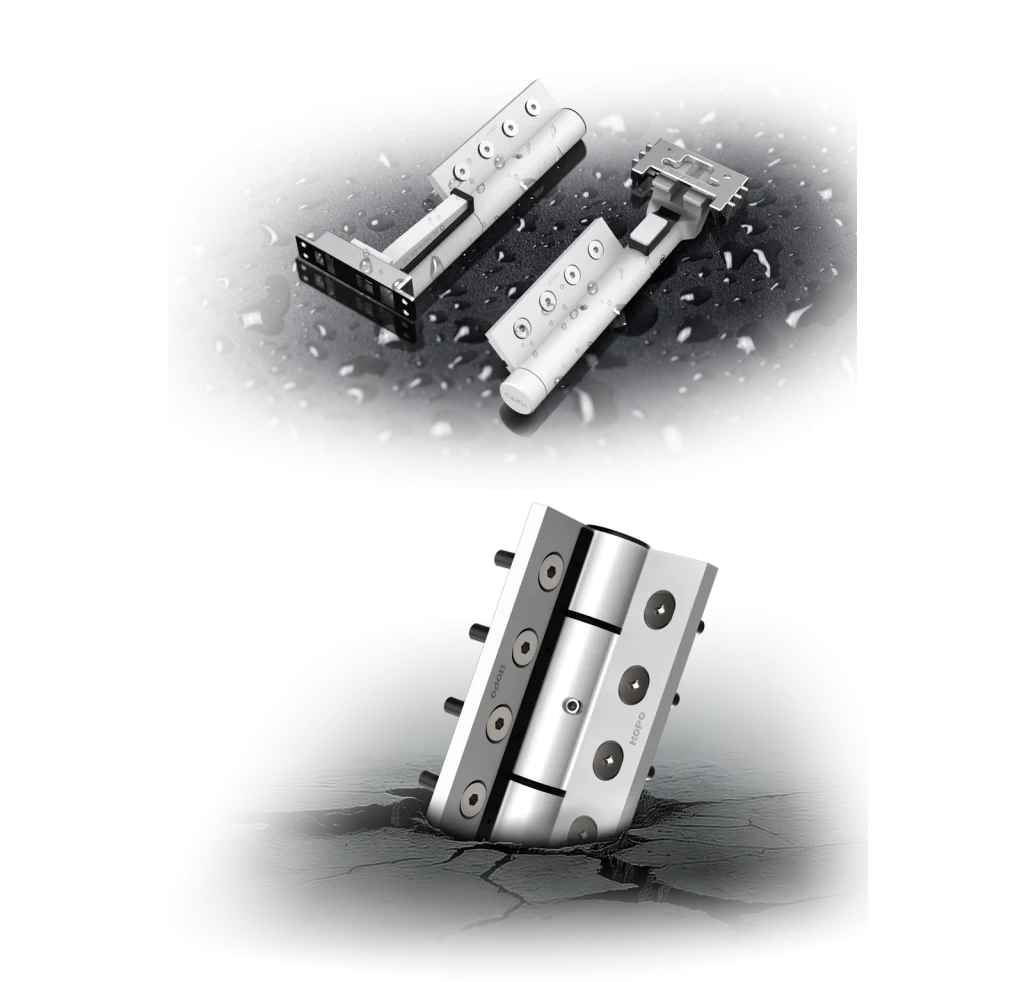

The proprietary Nitoly process is designed to resist coastal salt spray, acid rain, corrosion and long-term aging. The hardware structure is engineered for frequent, heavy-duty operation while maintaining alignment and precision.

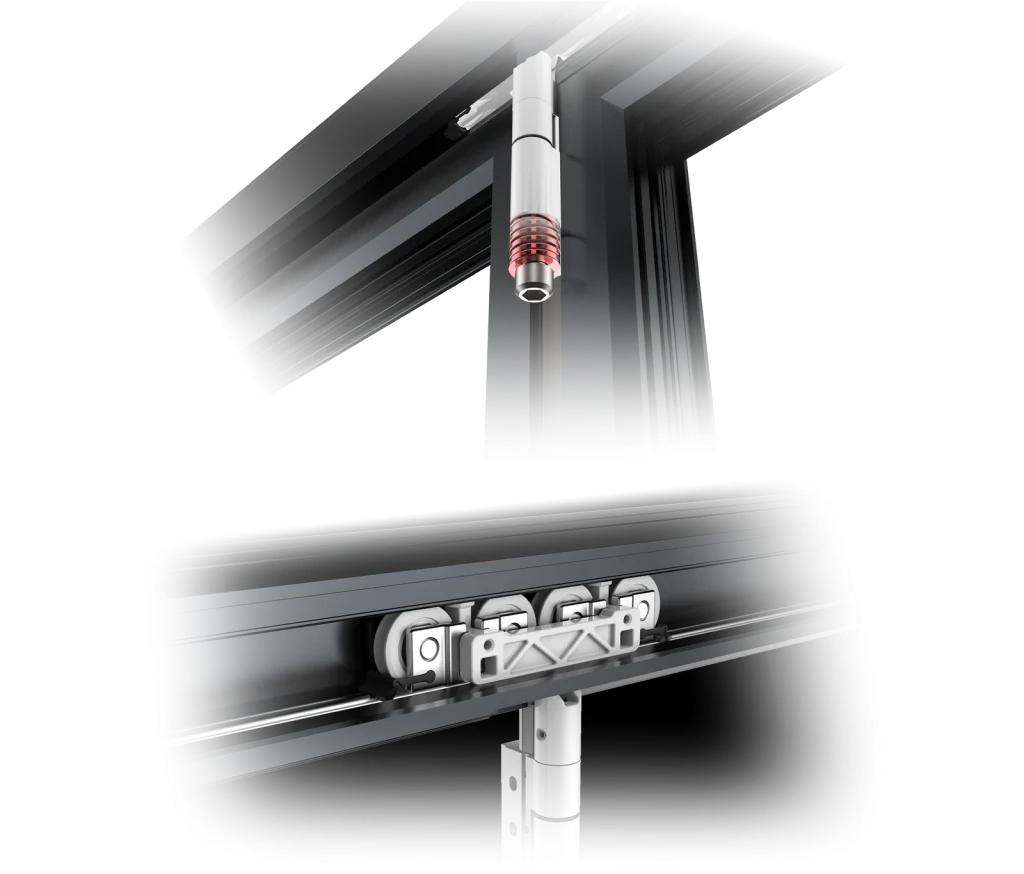

A vibration-damping suspension in the upper roller assembly carries up to 30% of the load. Large-diameter rollers and guide wheels combine with 3D adaptive adjustment to maintain track alignment and support smooth, stable movement.

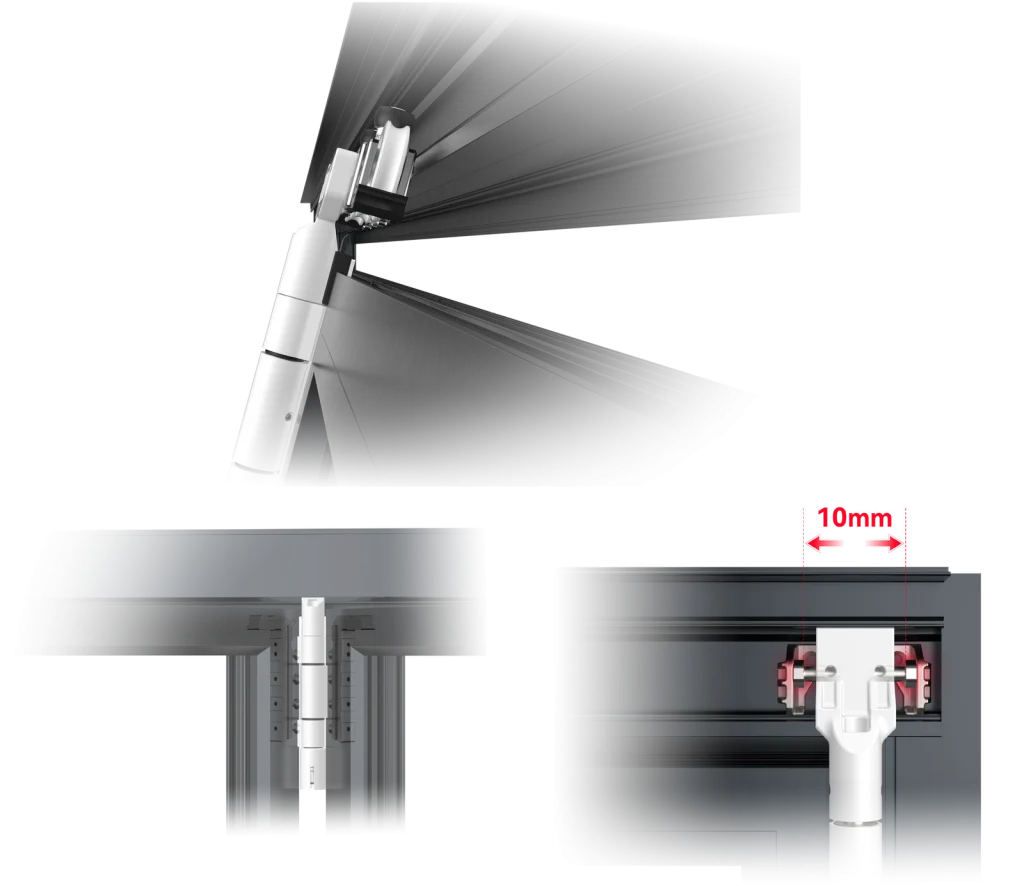

The upper roller assembly supports quick removal and slide-in sash hanging without cutting the track or removing the glass. Corner-cleat hinge positioning simplifies setup, while concealed ±10 mm frame-side lateral adjustment accommodates fabrication and installation tolerances.

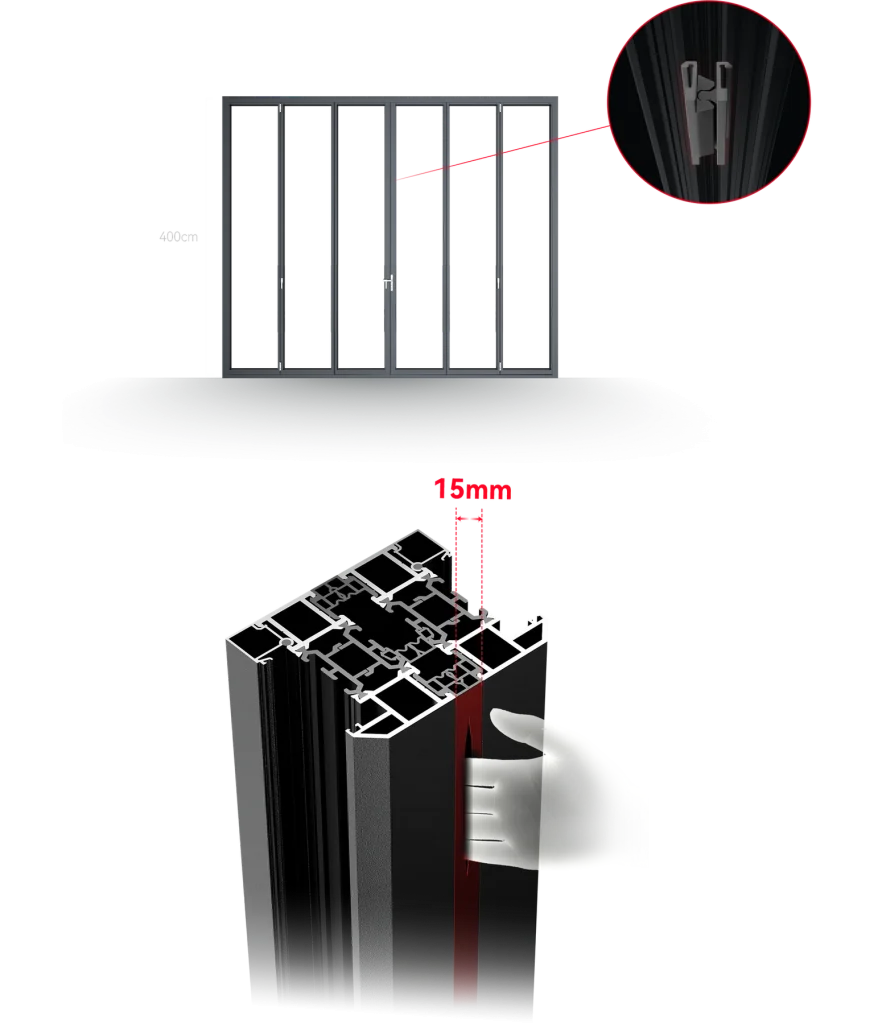

A concealed center wind-resistant latch engages when the door closes; latch quantity can be increased to suit door height and wind-load requirements. An anti-pinch design maintains a 15 mm gap when closed to help reduce finger injury risk.

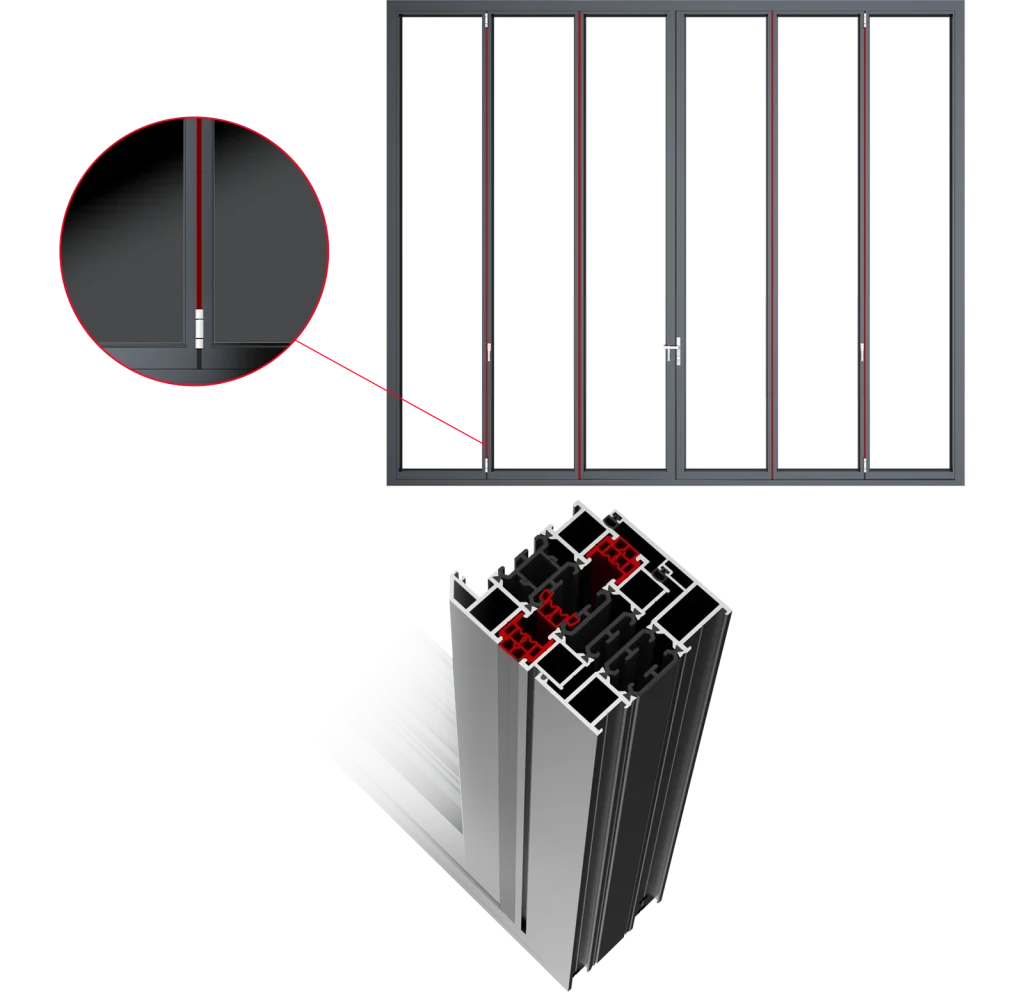

Positioning hinges at the upper and lower corners allows continuous gaskets. A triple-seal arrangement supports air- and watertightness while the semi-concealed hardware keeps the detail visually restrained.

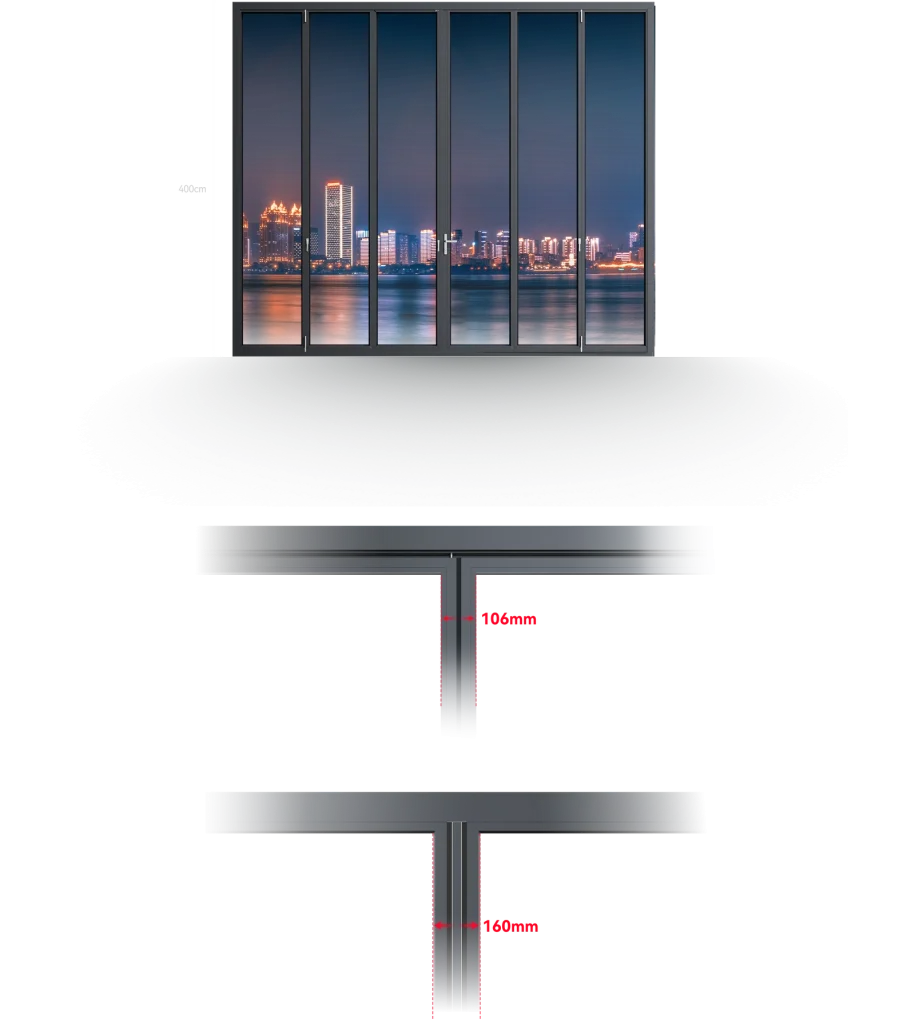

The upper- and lower-corner hinge layout eliminates conventional center hinges. The catalogue compares a 106 mm mullion-free sightline with a 160 mm mullion configuration, offering different detailing options for the opening.

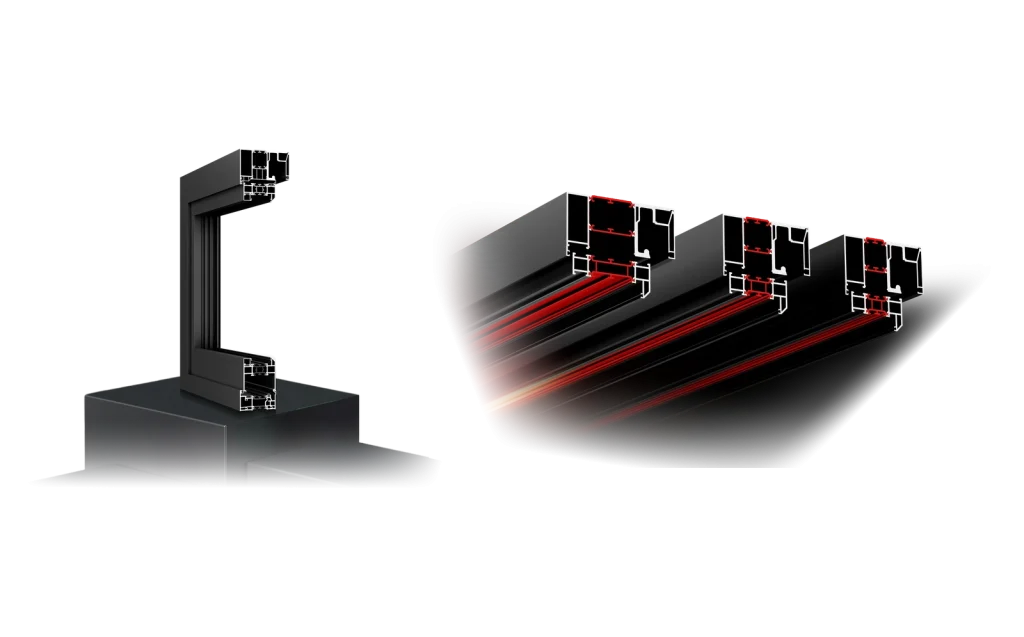

Coordinated top and bottom support provides the catalogue's 200 kg standard load. Choose non-thermal-break profiles or 22-40 mm thermal-break configurations, with inward or outward folding and odd-number or symmetrical even-number panel arrangements.
NITOLY SERIES

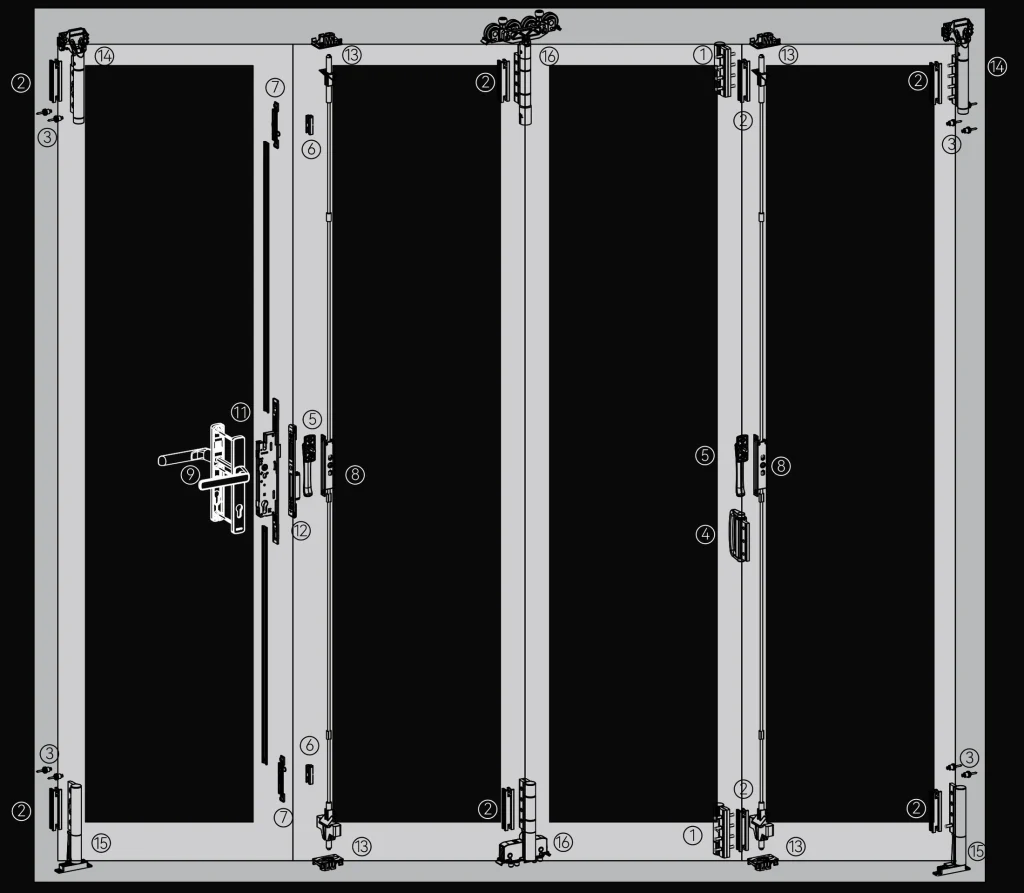

The diagram and quantities below reproduce the catalogue's G53 top-and-bottom load-bearing, mullion-free arrangement. Quantities are for the illustrated configuration and must be selected for the actual panel layout. Item 10 has two alternative cylinders: choose C99.8030C4T029 for outward folding or C99.3080C4T029 for inward folding. Wind-resistant latches, accessory kits and anti-sway components may require increased quantities according to door height. Both listed frame-side hinge assemblies belong to the illustrated arrangement; do not treat them as a single interchangeable item.
Quantity for the illustrated mullion-free arrangement.
ASH67.00.068H5 Increase quantity as required by door height and the final configuration.
TBL67.00.065X Unit and quantity as printed. Increase quantity as required by door height.
AB19.00.00X For the illustrated arrangement.
AHH67.00.068H5 For the illustrated arrangement.
PH171.00.168H5 For the illustrated arrangement.
ALP13.00.021 For the illustrated arrangement.
ALR21.01.021H4 For the illustrated arrangement.
AGC65.14.021X Unit and quantity as printed in the G53 table.
HSD605.168168H5 For outward-folding configurations. Choose this cylinder or the inward-folding alternative.
C99.8030C4T029 For inward-folding configurations. Alternative to C99.8030C4T029.
C99.3080C4T029 For the illustrated arrangement.
SDLK50.33.22C025H5 For the illustrated arrangement.
ALPD50.07.38 Retain separately from item 18, Kit - 20.
ASB67.10.06H4 Listed together with the right-hand assembly for the illustrated arrangement.
ASH67.05.068LH5 Listed together with the left-hand assembly for the illustrated arrangement.
ASH67.06.068RH5 For the illustrated arrangement.
ABR67.04.068H5 Increase quantity as required by door height.
AB20.00.06X Retain separately from item 13, Kit - 10.
ASB67.20.06H4 For the illustrated arrangement.
ALR28.00.021H4 Tell us a little about your project or product needs. Our team will review your information and get back to you with the right window and door hardware support.
