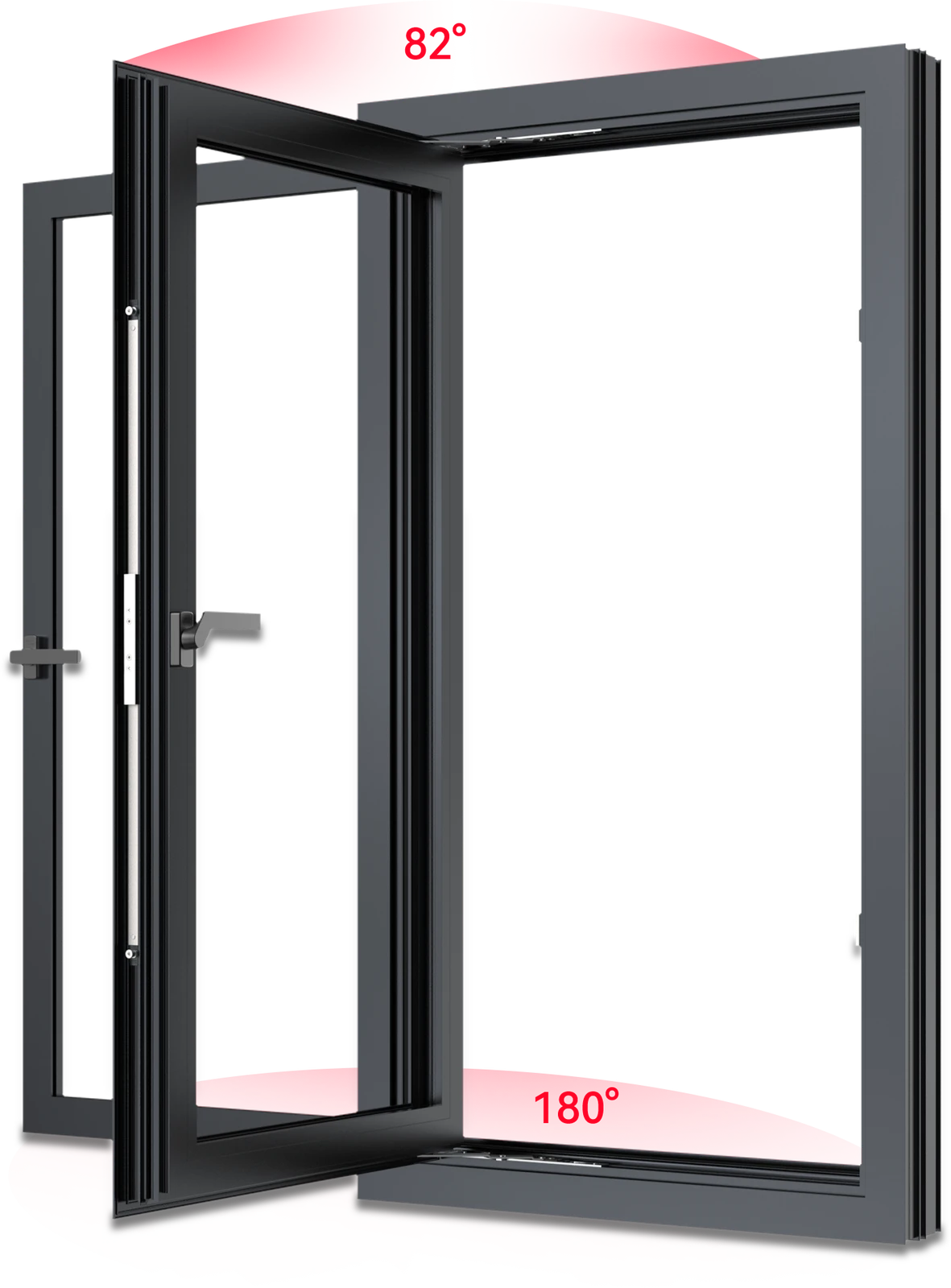

Nitoly Integrated Window-and-Screen System

NITOLY SERIES

Nitoly Integrated Window-and-Screen System

An outward-opening glass sash and an inward-opening insect screen work together in one coordinated hardware system. Nitoly combines supporting hinges, handles, gear cases and locking points for ventilation, access and everyday comfort.

The catalogue configuration supports a glass sash of up to 50 kg and a screen sash of up to 15 kg, with separate hardware choices for each sash.

Technical Information

Catalogue application ranges. Confirm the profile, sash dimensions, opening direction and selected hardware configuration before specification.

Maximum glass sash load: 50 kg
Maximum screen sash load: 15 kg
Sash width: 400-650 mm
Sash height: 450-1,800 mm
Opening arrangement: Outward-opening glass sash / inward-opening screen sash
Screen sash opening: 180°
Glass sash hinge opening: FH26: 90° / FH25: 86°; select the hinge to suit the profile
Glass sash gear-case backsets: 25 mm or 30 mm
Screen sash gear-case backsets: 10.5 mm or 13 mm
Locking-point adjustment: ±0.5 mm eccentric adjustment
Screen hinge lateral adjustment: ±0.6 mm
FH26 load-bearing support arm: 4 mm thick
Durability stated in the catalogue: 100,000 opening and closing cycles

NITOLY SERIES

Solution Advantages

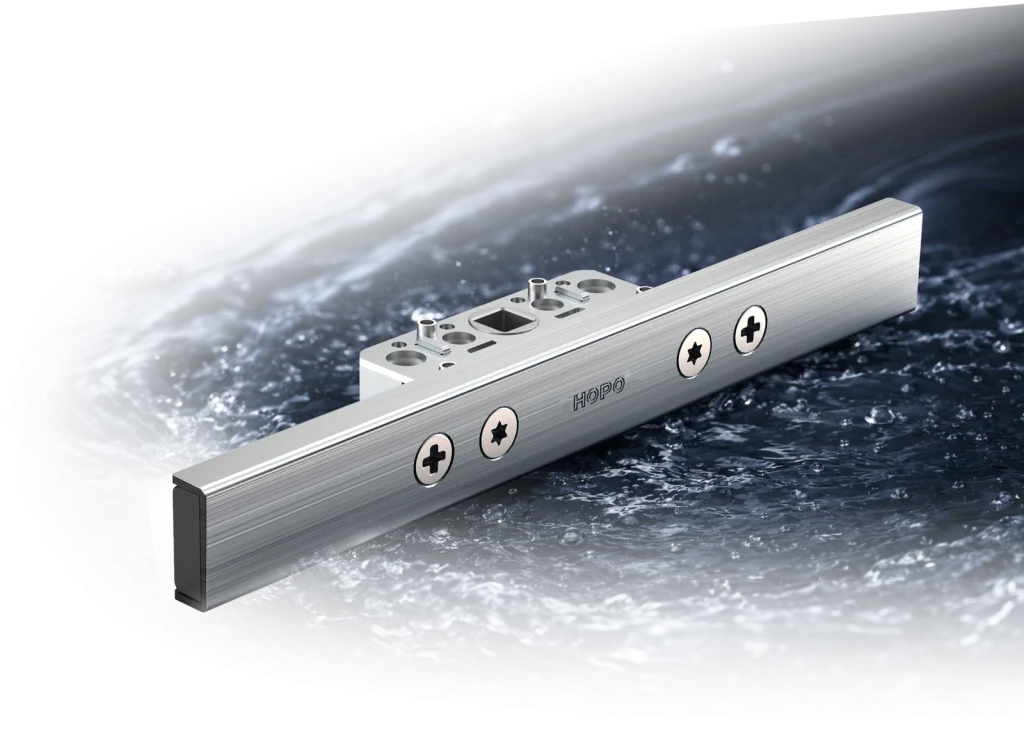

Built for Demanding Environments

The Nitoly process is designed to support corrosion resistance in coastal and humid environments. The catalogue describes protection against salt-laden air, acid rain and long-term exposure.

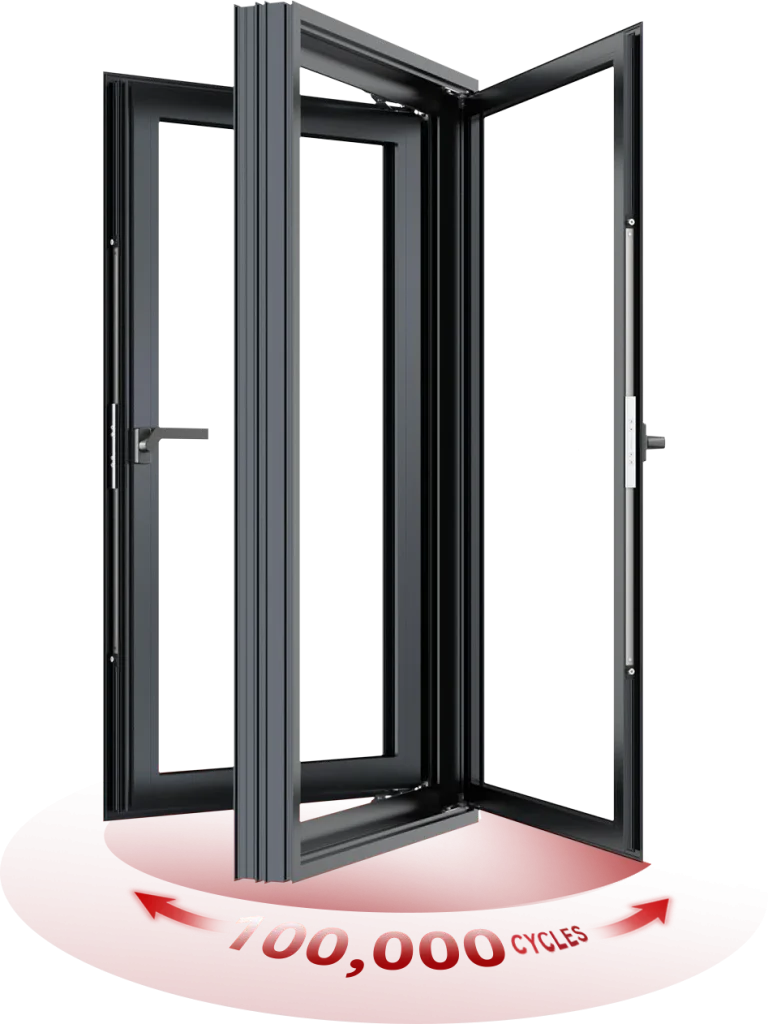

Tested for Repeated Use

The Nitoly catalogue reports 100,000 opening and closing cycles for this window-and-screen system. Its coordinated hardware is designed for frequent everyday operation.

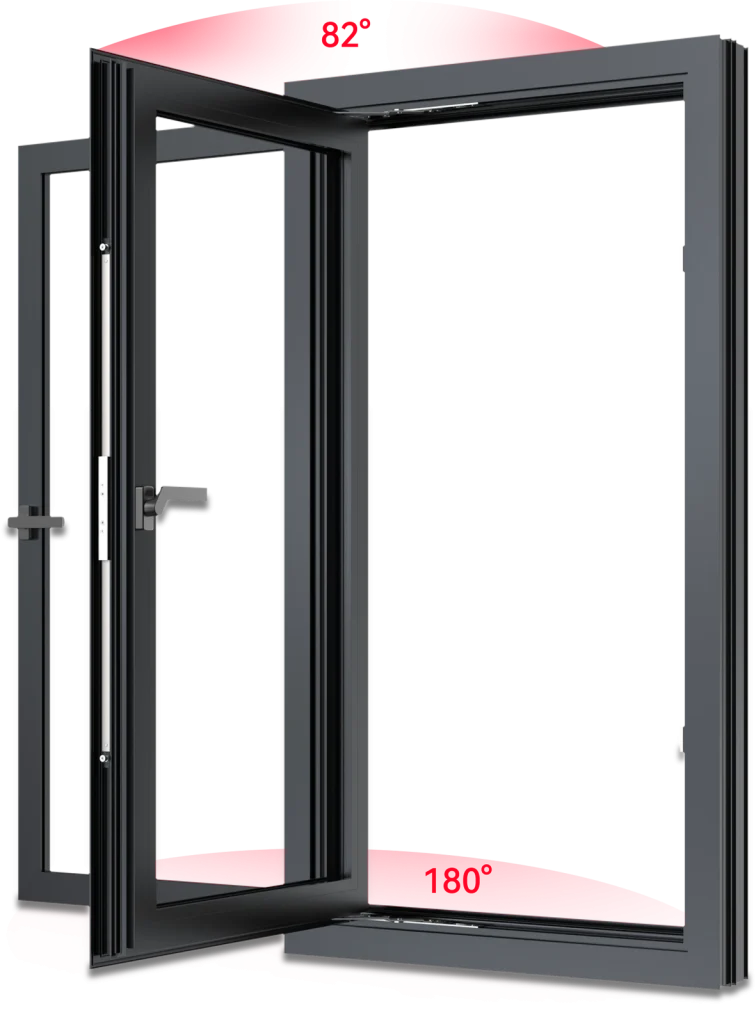

Independent Glass and Screen Movement

The glass sash opens outward while the insect screen opens inward to 180°, providing independent access for ventilation and cleaning. The illustrated arrangement supports a clear view through a high-visibility insect screen.

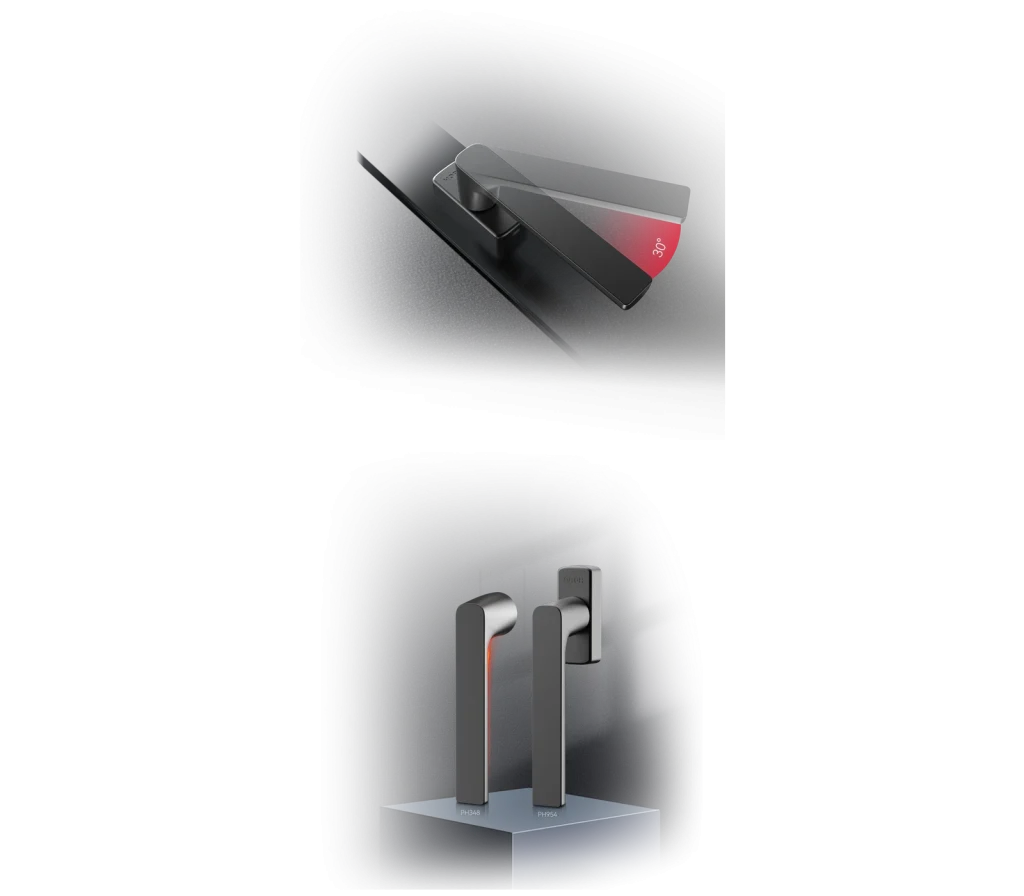

A Comfortable, Deliberate Handle Action

A mechanical click at 30° intervals gives clear positioning feedback. Rosette and rosette-free handle options combine a comfortable grip with a choice of finishes and matching spindle lengths.

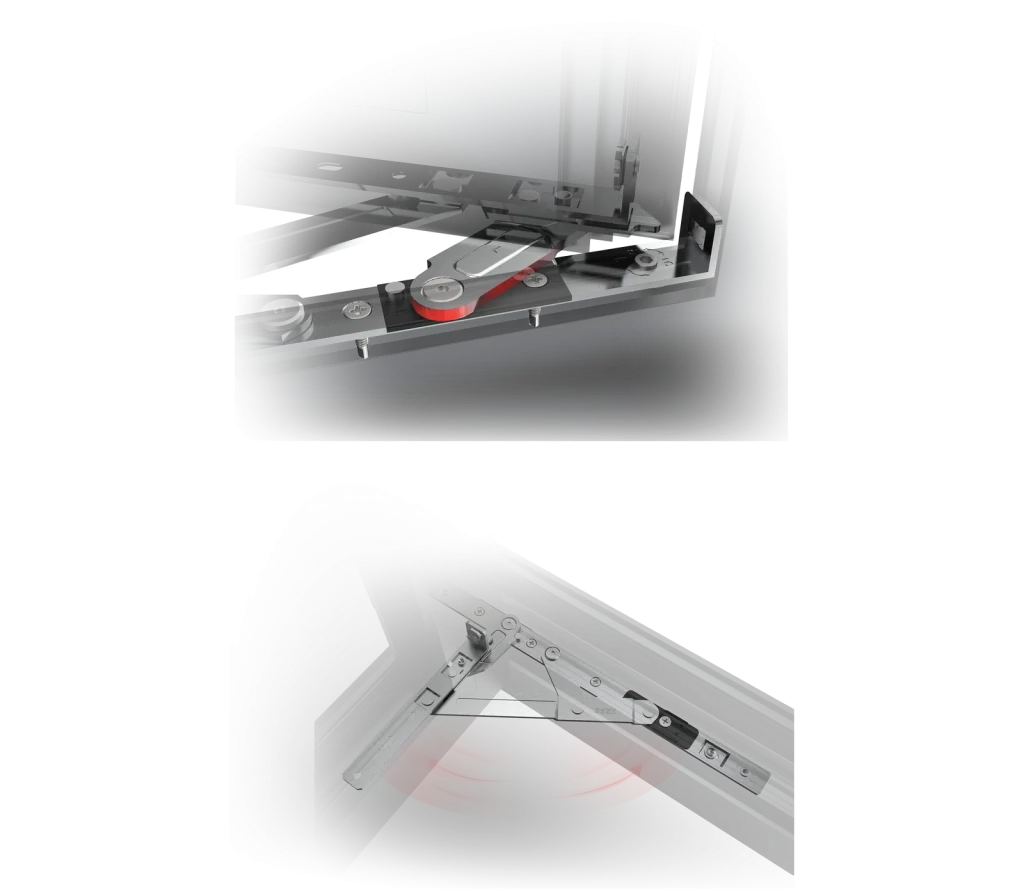

Support Where the Sash Needs It

The FH26 hinge uses a 4 mm load-bearing support arm and a multi-link structure to distribute loads. Adjustable friction allows the opening feel to be tuned. The catalogue reports resistance to forces above 1,000 N for the illustrated support structure.

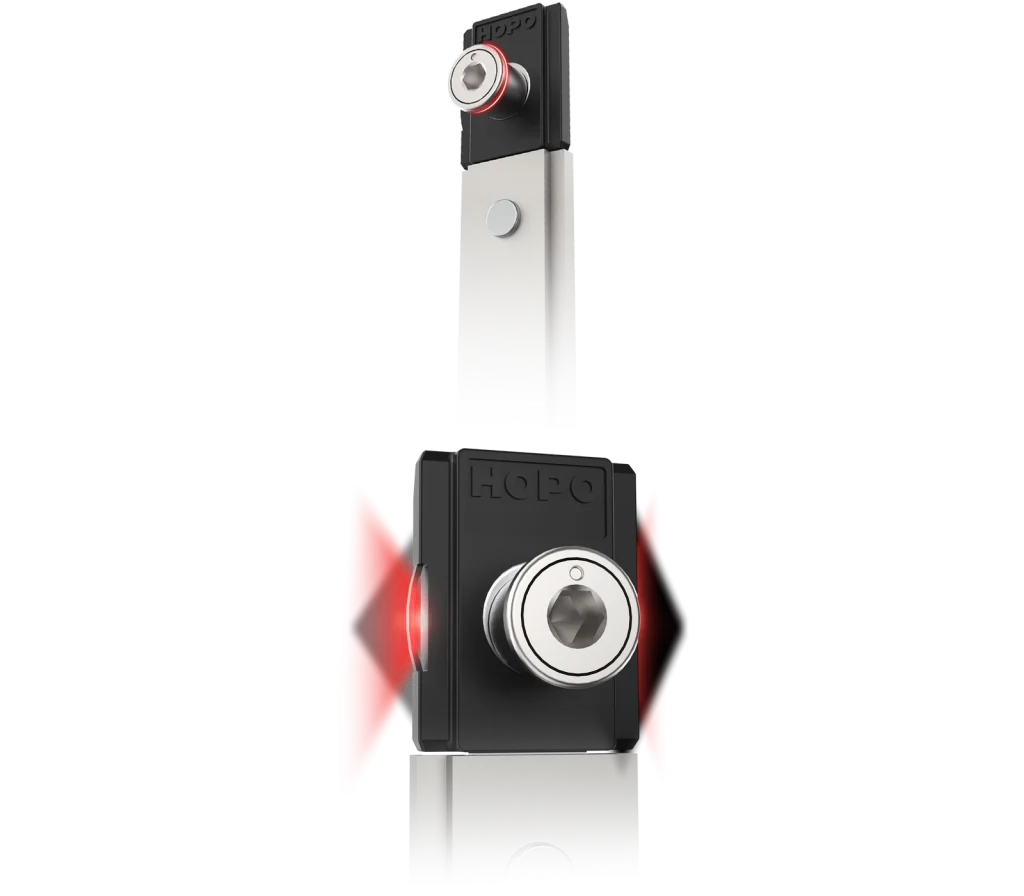

Secure Locking with Less Rattle

A unidirectional anti-pry roller locking rod works with reinforced strikers. An elastic anti-rattle insert helps reduce sash movement and operating noise, while the gear case incorporates an anti-misalignment device.

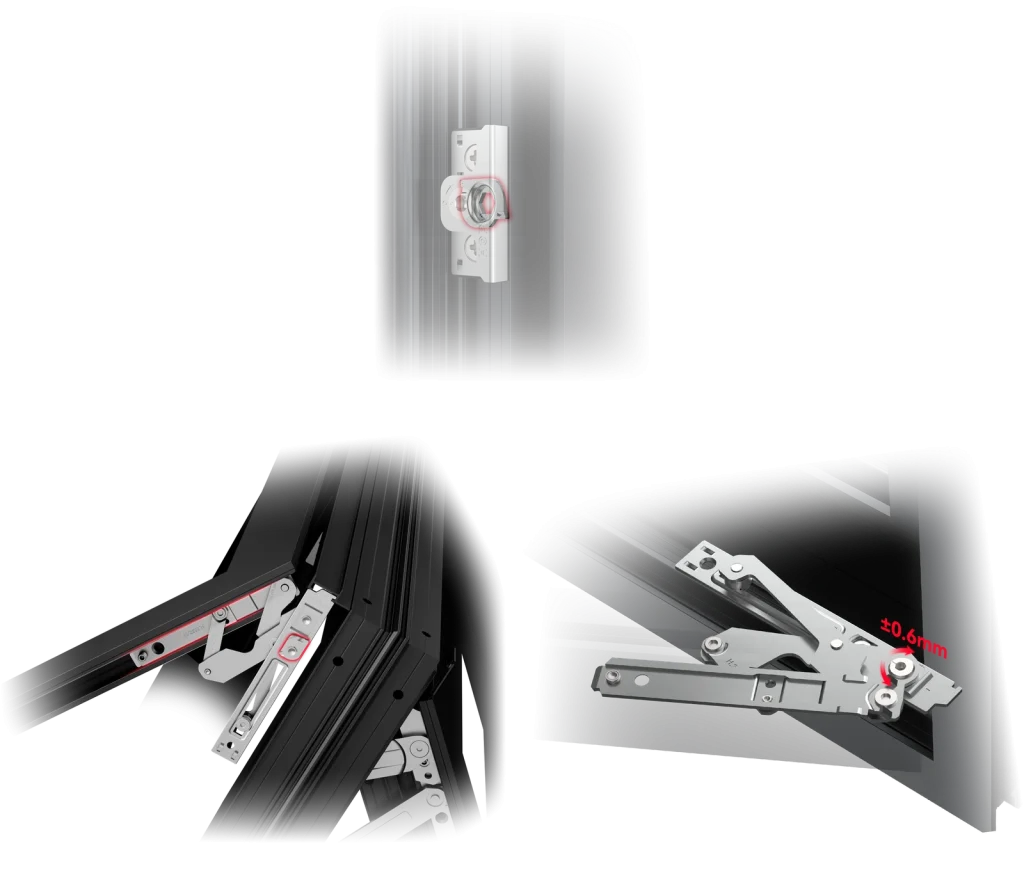

Straightforward Installation and Adjustment

Clamp-mounted strikers and slot-mounted screen hinges simplify assembly. Locking points offer ±0.5 mm eccentric adjustment, while the screen hinge provides ±0.6 mm lateral adjustment to accommodate installation tolerances.

NITOLY SERIES

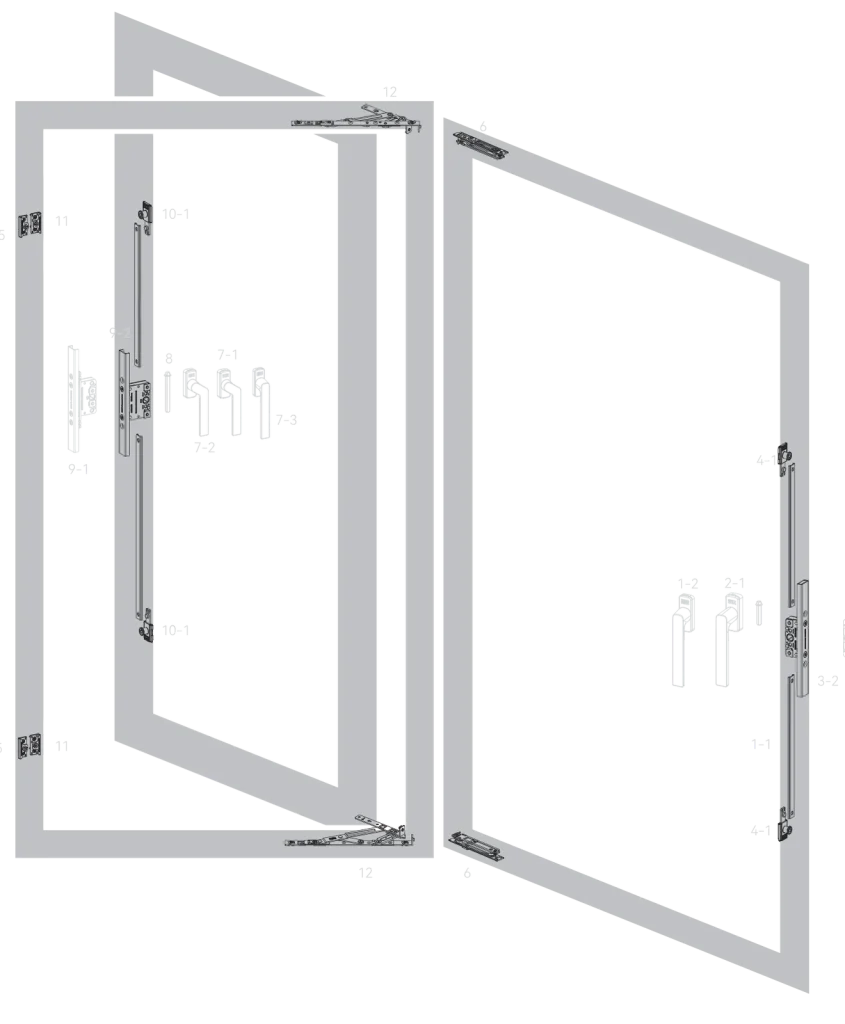

Solution Configuration

Rows 1-6 describe the inward-opening screen sash; rows 7-12 describe the outward-opening glass sash. Choose one handle style for each sash, its matching spindle, the required gear-case backset and locking-rod option. Hinge finishes, hinge types and handed parts are alternatives. Quantities belong to the selected configuration and are not cumulative across alternatives. Confirm the final glass-sash opening against the selected hinge and profile.

1-1

PH954 Rosette Handle

Screen sash. Handle alternative; height 54.6 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH954.00.01C068H5
1-2

PH962 Handle

Screen sash. Handle alternative; height 36.5 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH962.00.068H5
1-3

PH348 Rosette-Free Handle

Screen sash. Handle alternative; height 41.3 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH348.00.068H2
2-1

SP07 Square Spindle

Screen sash. For handles 1-1 or 1-2; exposed length 25 mm.

1 pc SP07.07.25C021X
2-2

SP07 Square Spindle with Screws

Screen sash. For handle 1-3; exposed length 26 mm; two 25 mm M4 countersunk screws.

1 pc SP07.07.2T26C021X
3-1

N45 Gear Case

Screen sash. 10.5 mm backset; select the backset to suit the profile.

1 pc AGC45.10.384H5
3-2

N45 Gear Case

Screen sash. 13 mm backset; alternative to 3-1.

1 pc AGC45.13.384H5
4-1

N70 Locking Rod

Screen sash. Select N70 or N71 locking rods.

2 pc ALR70.01.38H4
4-2

N71 Locking Rod

Screen sash. Alternative to N70 locking rods.

2 pc ALR71.00.38H5
5

N70 Striker

Screen sash locking configuration.

2 pc ALP70.00.38H5
6

Screen Sash Hinge

Screen sash. 180° opening; 15 kg capacity. Select one of the two hinge finish options.

1 set CATH29.01.38H5
6

Screen Sash Hinge - Non-Polished Finish

Screen sash. 180° opening; 15 kg capacity; alternative non-polished finish.

1 set CATH29.01.01C38H5
7-1

PH955 Handle

Glass sash. Handle alternative; select the required handing where applicable; height 27 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH955.00.01C068L/RH5
7-2

PH956 Handle

Glass sash. Handle alternative; select the required handing where applicable; height 33.7 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH956.00.01C068L/RH5
7-3

PH962 Handle

Glass sash. Handle alternative; height 36.5 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH962.00.068H5
7-4

PH349 Rosette-Free Handle

Glass sash. Handle alternative; select the required handing; height 33.8 mm. Matte black (068), silver (113) or antique bronze (049). The listed code is the catalogue code for the black finish.

1 pc PH349.00.068L/RH2
8-1

SP07 Square Spindle

Glass sash. For handles 7-1, 7-2 or 7-3; exposed length 60 mm; other lengths available.

1 pc SP07.07.60C021X
8-2

SP07 Square Spindle with Screws

Glass sash. For handle 7-4; exposed length 60 mm; two 55 mm M4 countersunk screws.

1 pc SP07.07.2T60C021X
9-1

N45 Gear Case

Glass sash. 25 mm backset; select the backset to suit the profile.

1 pc AGC45.25.384H5
9-2

N45 Gear Case

Glass sash. 30 mm backset; alternative to 9-1.

1 pc AGC45.30.384H5
10-1

N70 Locking Rod

Glass sash. Select N70 or N71 locking rods.

2 pc ALR70.01.38H4
10-2

N71 Locking Rod

Glass sash. Alternative to N70 locking rods.

2 pc ALR71.00.38H5
11

N70 Striker

Glass sash locking configuration.

2 pc ALP70.00.38H5
12

FH26 Friction Stay

Glass sash hinge option. Catalogue hinge rating: 90° opening; 50 kg capacity.

1 pair FH26.2216.13C38H5
12

FH25 C-Groove Dust-Proof Hinge - Left

Alternative glass sash hinge. Left-hand; catalogue hinge rating: 86° opening; 50 kg capacity. Select the required handing.

1 pair FH25.2216.3T12C38LH5
12

FH25 C-Groove Dust-Proof Hinge - Right

Alternative glass sash hinge. Right-hand; catalogue hinge rating: 86° opening; 50 kg capacity. Select the required handing.

1 pair FH25.2216.3T12C38RH5
