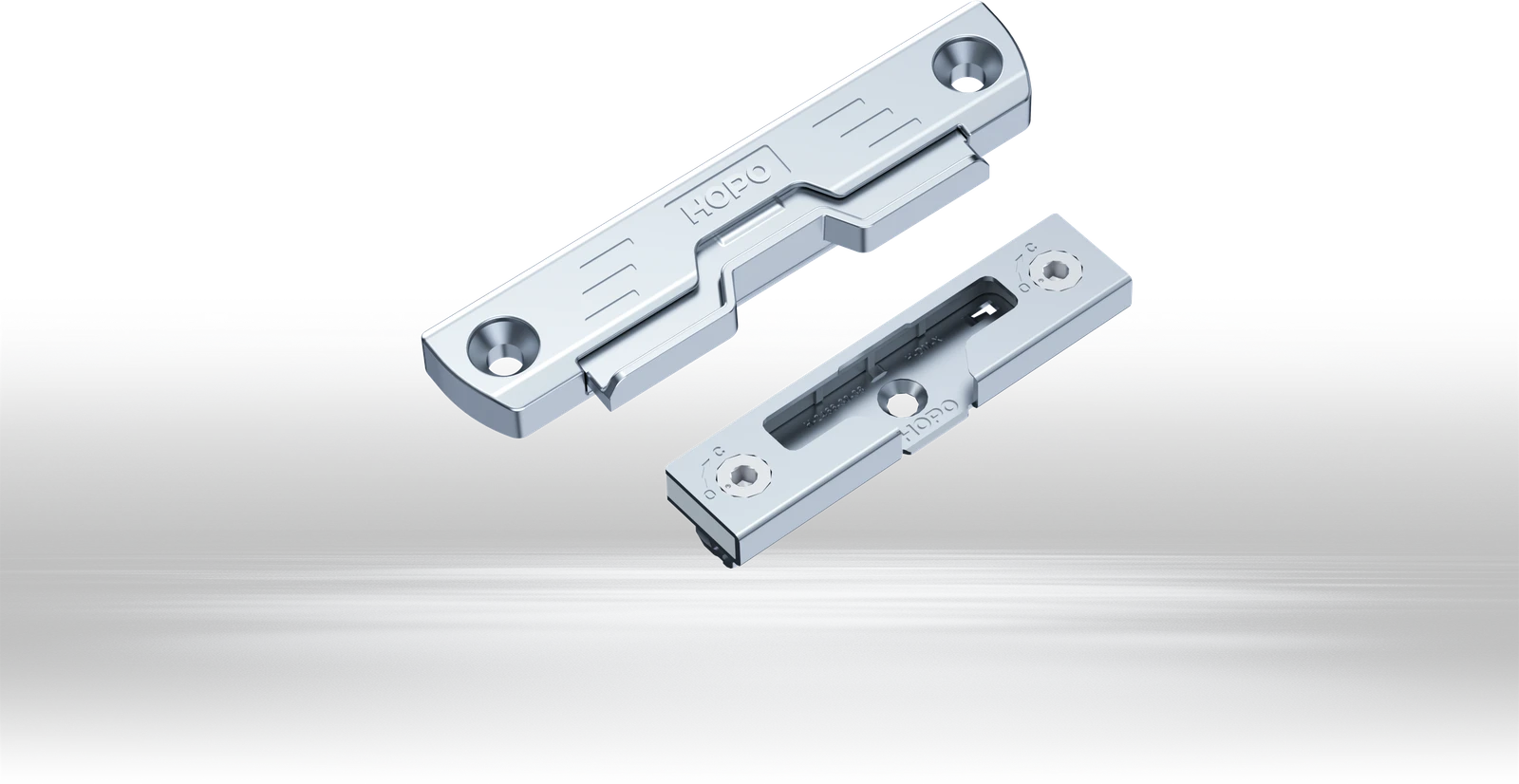

Nitoly brings coordinated tilt-and-turn operation to UC-groove window profiles. Anti-misoperation devices, anti-pry locking points and roller-assisted sash support work together to keep the sash controlled through its opening modes.
Modular extension components support different sash dimensions, while clamp-mounted hinges and accessible adjustment points simplify installation and alignment.
The dimensions below apply to the base hardware configuration. Select width and height extensions to suit the final sash size, and confirm the complete configuration with HOPO.
NITOLY SERIES

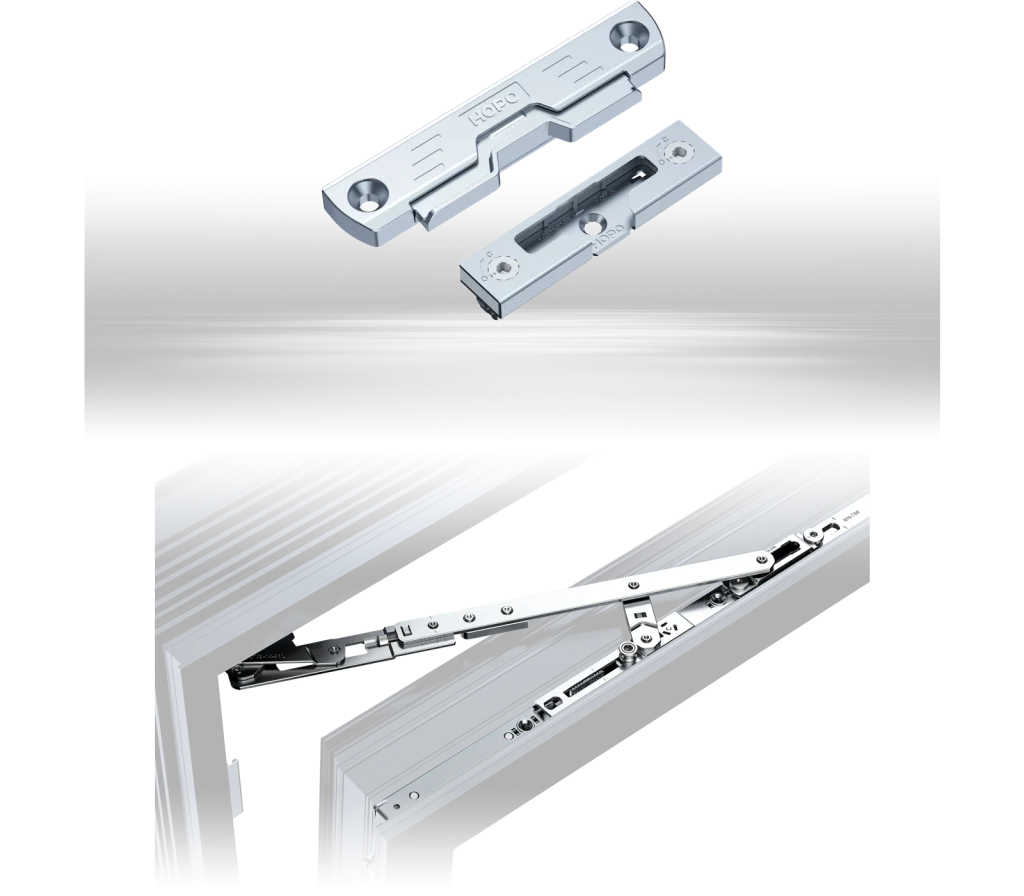

The Nitoly process combines structurally integrated components with a corrosion-resistant surface. The catalogue describes resistance to coastal salt spray, acid rain and long-term exposure, with a hinge structure developed for repeated operation.

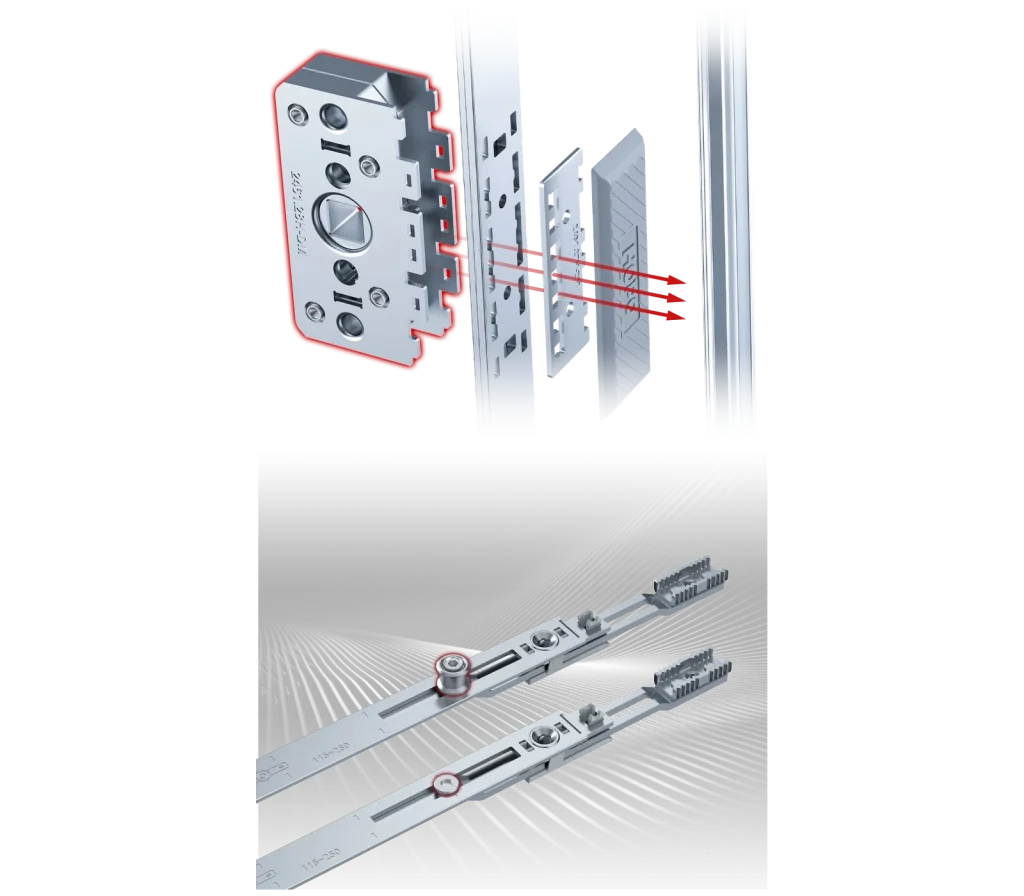

Quick-change gear-case backsets support profile adaptation. Extension ends are available with or without locking points, allowing the drive and locking arrangement to be configured around larger sashes.

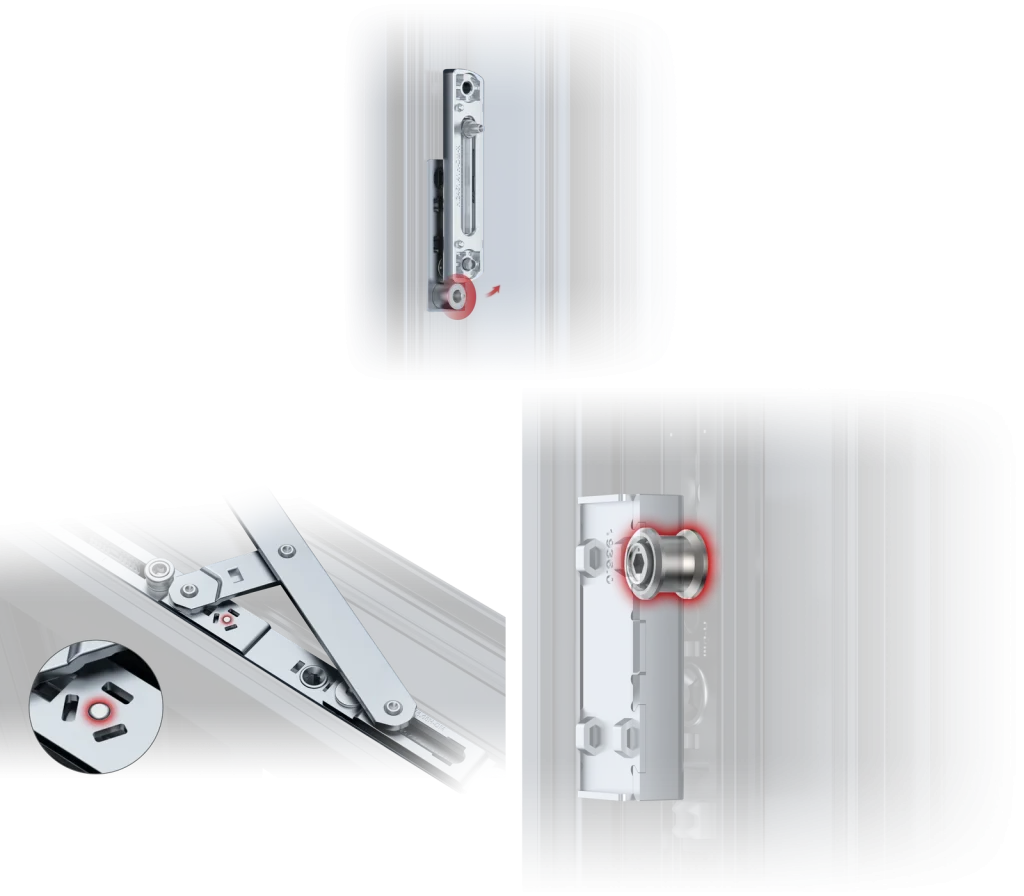

A dedicated anti-misoperation device prevents handle rotation while the sash is open. Roller-assisted support helps resist sash sag, while anti-pry locking points, reinforced strikers and tilt-position protection support secure, controlled movement.

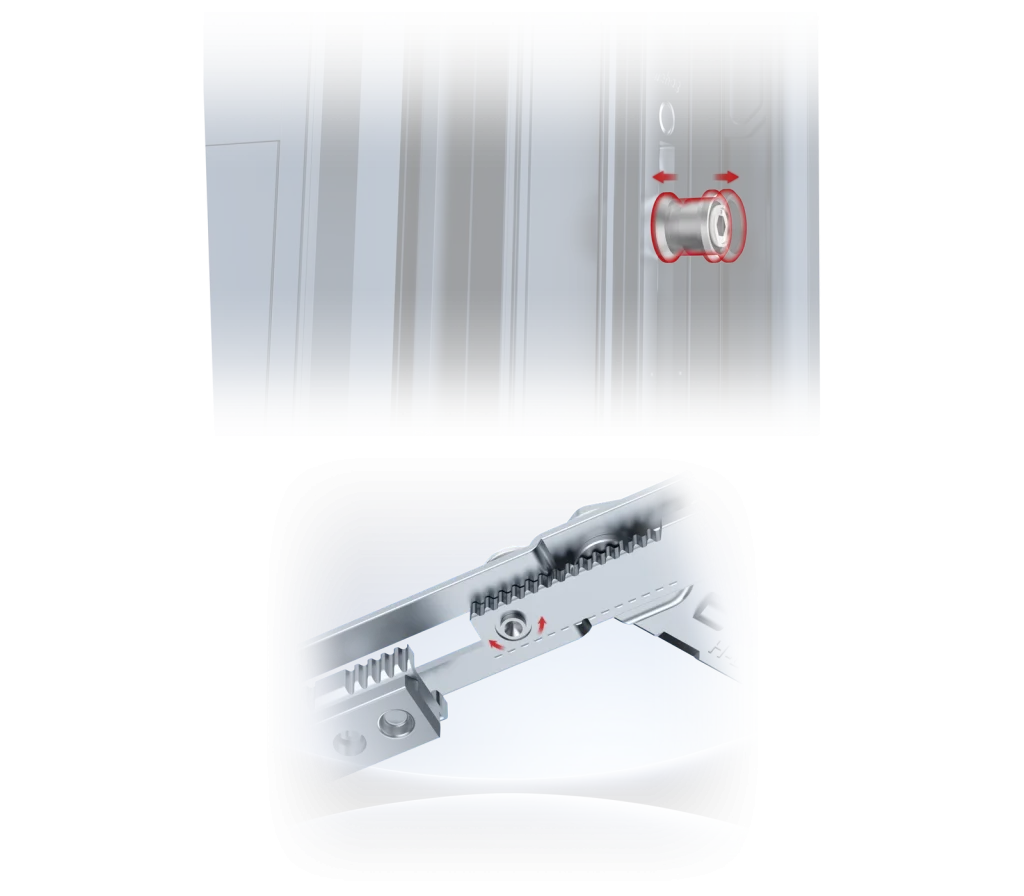

The locking point provides +1.5 mm height self-adjustment and 1 mm eccentric adjustment as stated in the catalogue. Upper-hinge compression can be adjusted by ±1 mm to fine-tune sealing at the corner.

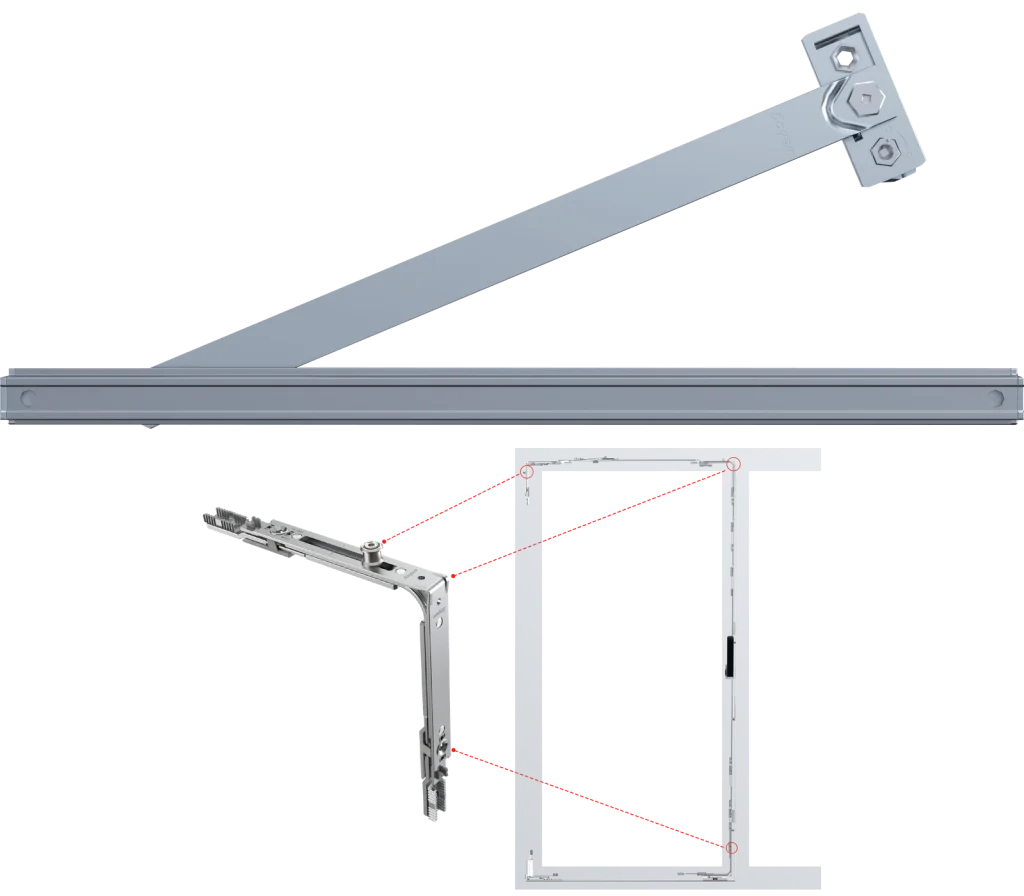

The friction stay helps prevent the sash from striking the frame in wind. A corner-drive option can add locking support on the hinge side, helping the configured window maintain even closing pressure.

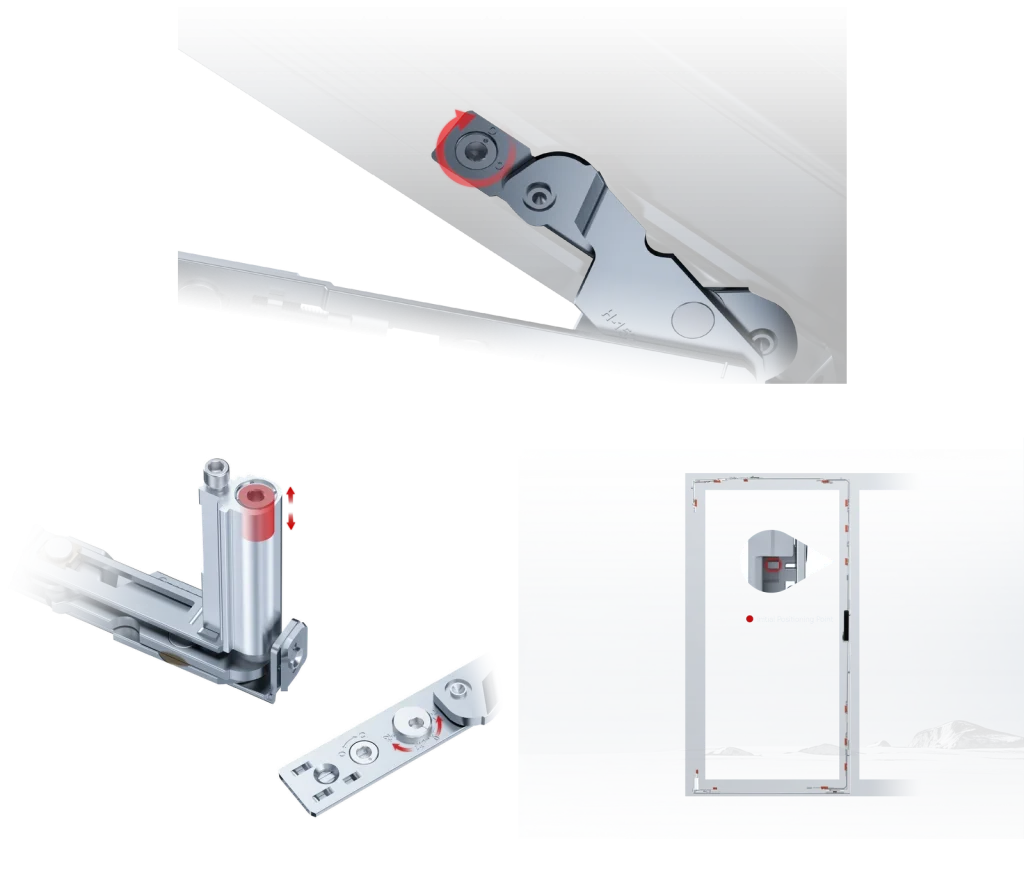

The upper and lower hinges use clamp mounting without drilling. An eccentric pin and clamping nut block secure the hinge with a 90° installation turn. Initial positioning points on the drive assembly and accessible hinge adjustments help simplify fitting.
NITOLY SERIES
The table shows a right-hand base configuration for sash widths of 495-760 mm and heights of 695-965 mm. Select matching left- or right-hand protection devices, lift plates and hinge assemblies. A quantity of 0 identifies an unused alternative in the illustrated right-hand configuration. Items 11-13 provide optional or size-dependent additions; confirm the complete selection for the final sash size.
Base right-hand catalogue example: 90° opening, maximum load 100 kg, sash width 495-760 mm and sash height 695-965 mm.
PH954.00.01C068H5 Base configuration; match to the specified handle and profile.
SP07.07.26C021X Base transmission unit as named in the catalogue.
GK20.15.38H4 Base configuration quantity.
PCT20.00.38H5 Base configuration quantity; additional strikers are listed separately below.
ALP23.00.38H5 Base configuration.
PLP21.00.38H5 Left-hand alternative. Printed quantity 0 belongs to the illustrated right-hand example; select the required handing.
POW20.00.223LH4 Right-hand device fitted in the catalogue example; alternative to the left-hand part.
POW20.00.223RH4 Left-hand alternative. Printed quantity 0 belongs to the illustrated right-hand example; match device and hinge handing.
AOWP20.00.38LX Right-hand lift plate fitted in the catalogue example.
AOWP20.00.38RX Base configuration quantity.
PK20.25.38H5 Left-hand alternative. Printed quantity 0 belongs to the illustrated right-hand example; select the required handing.
CPTT10.40.38LH5 Right-hand hinge assembly fitted in the catalogue example; 90° opening and maximum 100 kg system load.
CPTT10.40.38RH5 Optional width extension: for sash widths 760-900 mm, add one of this component and one security striker under item 11.
PK20.25.38H5 Optional width extension: add with the item 11 extension end for sash widths 760-900 mm.
ALP23.00.38H5 Optional height extension group 12: use one of each of its three components at SH 925-1,465 mm; two of each at SH 1,425-1,965 mm; three of each at SH 1,925-2,465 mm.
ALP23.00.38H5 Optional height extension group 12: use one of each of its three components at SH 925-1,465 mm; two of each at SH 1,425-1,965 mm; three of each at SH 1,925-2,465 mm.
PK20.25.38H5 Optional height extension group 12: use one of each of its three components at SH 925-1,465 mm; two of each at SH 1,425-1,965 mm; three of each at SH 1,925-2,465 mm.
PE20.25.00C38H5 Optional accessory; catalogue quantity 1. Confirm the stay selection for the final sash configuration.
PTR20.00.38H5 Tell us a little about your project or product needs. Our team will review your information and get back to you with the right window and door hardware support.
