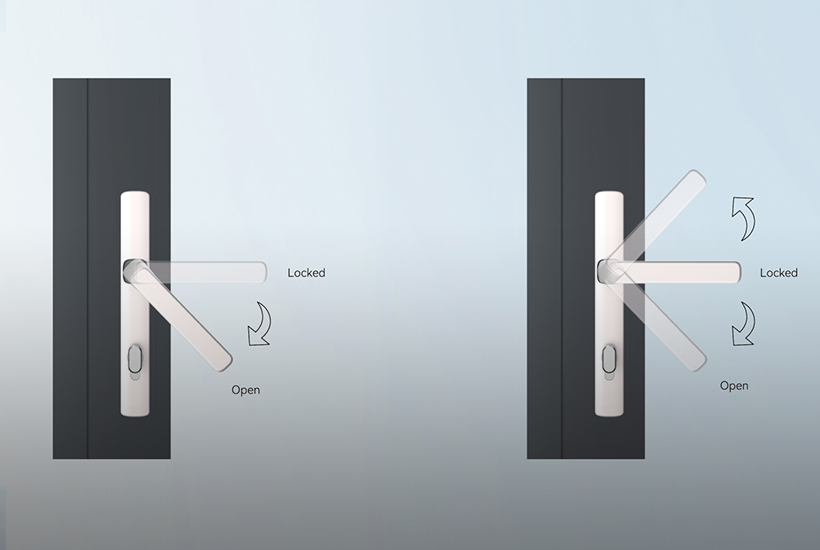

Operation Diagram
Single-lock system & multi-point lock system
CONCEALED-HINGE DOOR SERIES
Concealed-Hinge Casement Door System
The concealed-hinge casement door system combines single- or multipoint locking with concealed hinges and active- and passive-leaf shoot-bolt options. Stainless-steel and aluminum-alloy components support a clean closed-door appearance, adjustment and long-term operation for single- or double-leaf configurations.
Technical Information
The capacities, height ranges and cycle value below are reproduced from the existing configuration and solution-advantage content. Confirm the profile, door geometry, hinge quantity, sash weight and final locking arrangement before specification.
- System type
- Concealed-hinge casement door hardware system
- Locking arrangements
- Single-lock or multipoint-lock configuration
- Standard hinge load
- Up to 150 kg with 2 hinges
- Maximum hinge load
- Up to 180 kg with 3 hinges
- Illustrated sash-height ranges
- 2,090-2,310 / 2,310-2,660 / 2,660-3,010 mm
- Cycle test
- More than 200,000 opening and closing cycles
- Hinge visibility
- Completely concealed when the door is closed
CONCEALED-HINGE DOOR SERIES
Solution Advantages

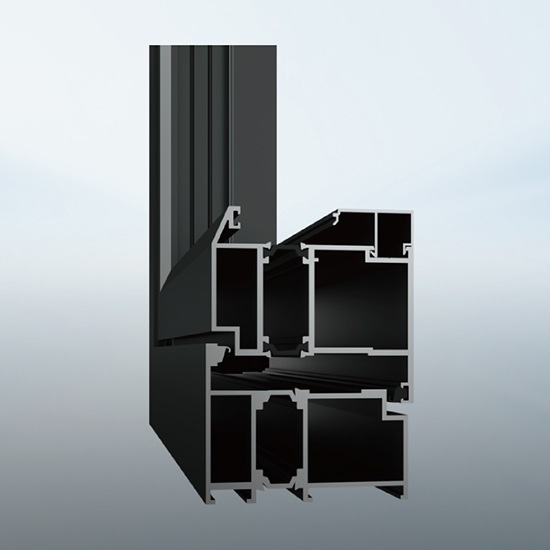

Profile Information
Stable Quality

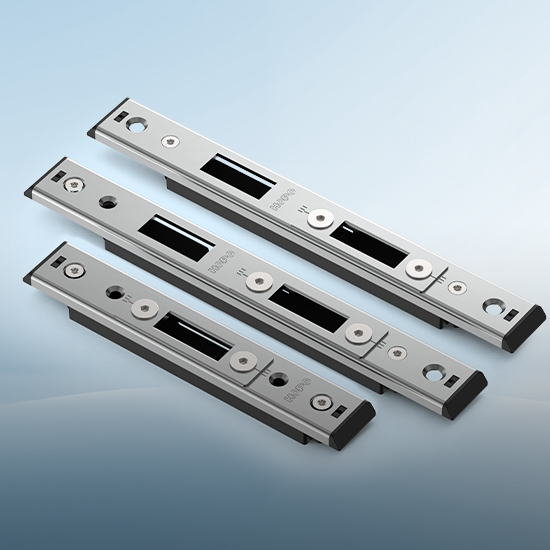

The entire hardware set is made of premium stainless steel for superior durability and refined texture, offering excellent scratch and wear resistance.
Stable Quality

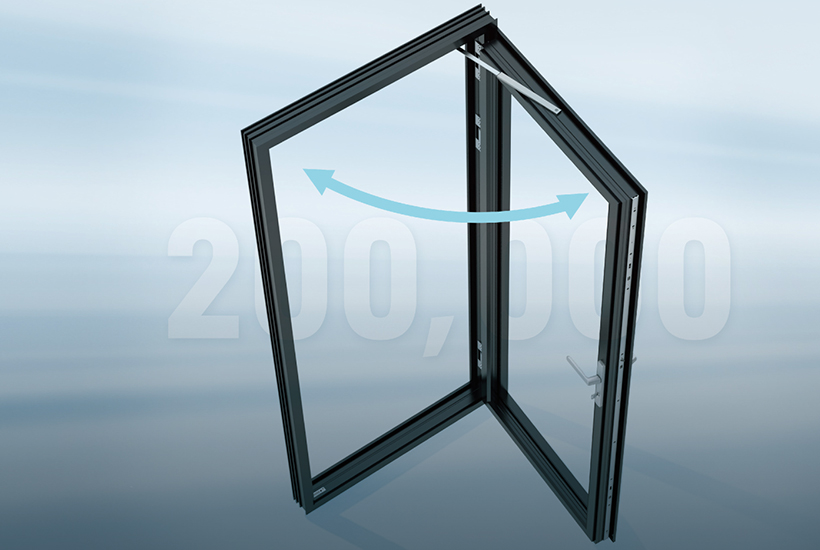

Tested for over 200,000 opening and closing cycles to ensure long-term stability and reliability.
Stable Quality

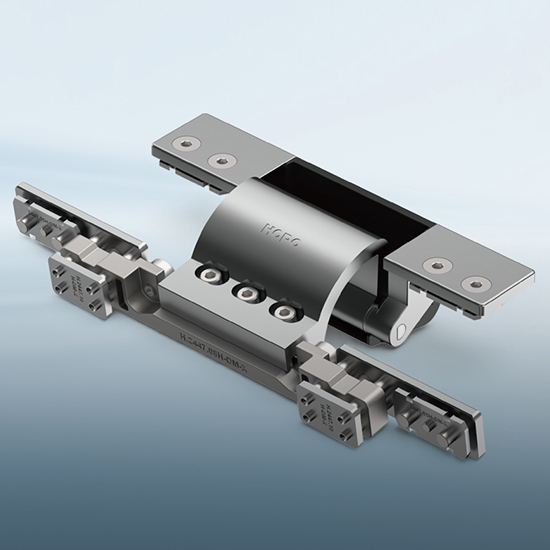

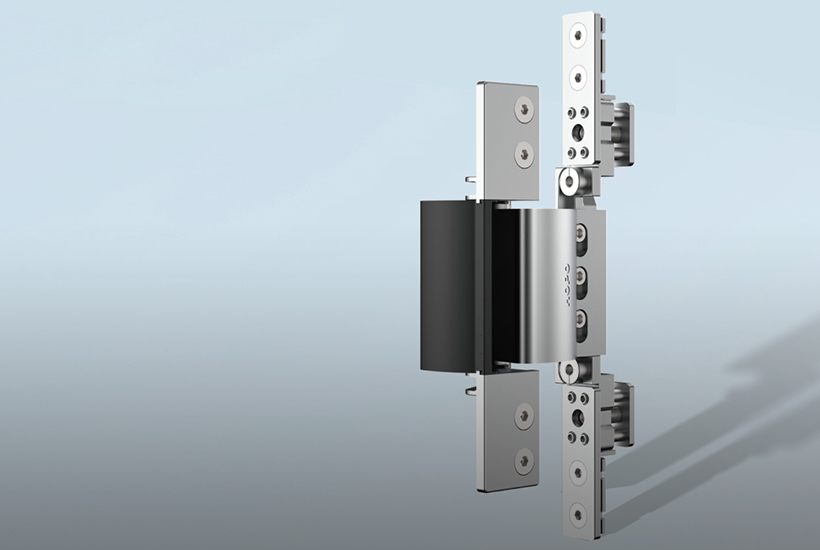

The hinge body combines precision stainless steel and aluminum alloy for superior strength, corrosion resistance, and extended service life.
Stable Quality
The brushed hinge surface with anodized silver finish resists fingerprints, scratches and abrasion.
Sleek Appearance

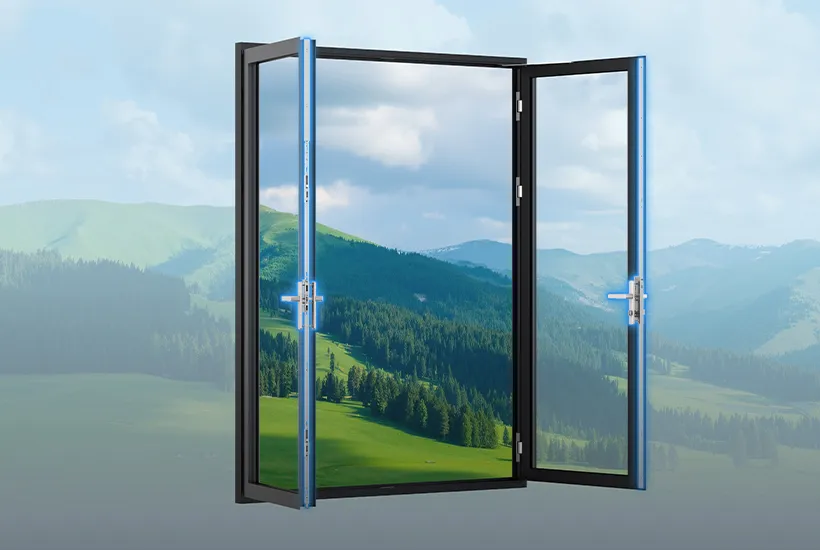

Multi-point locks and passive-leaf shoot bolt feature an integrated panel design for a unified structure and clean,elegant look.
Sleek Appearance

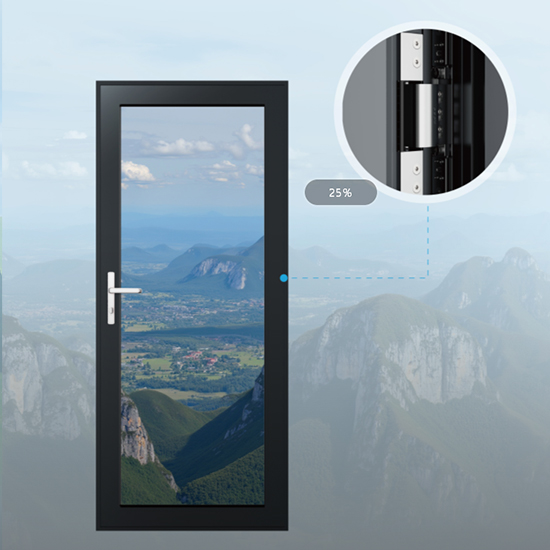

The hinge is completely hidden when the door is closed, leaving no visible components and enhancing the overall visual harmony.
CONCEALED-HINGE DOOR SERIES
Solution Configuration
The list below preserves the single-leaf, double-leaf active-sash and double-leaf passive-sash tables, including alternative shoot-bolt lengths, repeated item numbers, quantities, units, product codes and notes.
-
1
1 set
605 Door Handle Set
with cylinder hole, 168 antibacterial matte blackoptional 012 silver
HSD605.168168H5 -
2
1 pc
C99 Cylinder
Other specifications optional
C99.7030C4T029 -
3
1 pc
Integrated Multi-Point Lock
–
SDLH57.25.24C38H5 -
4
1 set
Locking Plate
–
ALPD53.00.38H5 -
5
1 pc
Extended Shoot Bolt
40: Sash height: 2090-2310 mm75: Sash height: 2310-2660 mm111: Sash height: 2660-3010 mm(choose one)
ASB23.00.40C38X -
6
1 pc
Extended Shoot Bolt
ASB23.00.75C38X -
7
1 pc
Extended Shoot Bolt
ASB23.00.111C38X -
8
2 pcs
Single Sash Shoot-Bolt Plate
–
ASLP23.00.38X -
9
3 pcs
Concealed Hinge
Use 2 hinges for sashes up to 150 kg or 3 hingesfor sashes up to 180 kg
HBH103.00.38H5 -
10
1 pc
Friction Stay
Optional
ATR22.00.38H5 -
1
1 set
605 Door Handle Set
with cylinder hole, 168 antibacterial matte blackoptional 012 silver
HSD605.168168H5 -
2
1 pc
C99 Cylinder
Other specifications optional
C99.7030C4T029 -
3
1 pc
Integrated Multi-Point Lock
–
SDLH57.25.24C38H5 -
4-1
1 pc
Extended Shoot Bolt
40: Sash height: 2090-2310 mm75: Sash height: 2310-2660 mm111: Sash height: 2660-3010 mm(choose one)
ASB23.00.40C38X -
4-2
1 pc
Extended Shoot Bolt
ASB23.00.75C38X -
4-3
1 pc
Extended Shoot Bolt
ASB23.00.111C38X -
5
2 pcs
Anti-Dust Shoot Bolt Plate
–
ASLP22.00.38X -
6
3 pcs
Concealed Hinge
Use 2 hinges for sashes up to 150 kg or 3 hingesfor sashes up to 180 kg
HBH103.00.38H5 -
7
1 pc
Friction Stay
Optional
ATR22.00.38H5 -
8
1 set
605 Door Handle Set
with cylinder hole, 168 antibacterial matte blackoptional 012 silver
HSD615.168168H5 -
9-1
1 pc
Extended Shoot Bolt
40: Sash height: 2090-2310 mm75: Sash height: 2310-2660 mm111: Sash height: 2660-3010 mm(choose one)
ASB23.00.40C38X -
9-2
1 pc
Extended Shoot Bolt
ASB23.00.75C38X -
9-3
1 pc
Extended Shoot Bolt
ASB23.00.111C38X -
10
2 pcs
Passive-Sash Shoot-Bolt
Integrated locking plate function
ASB22.25.24C38H5 -
11
3 pcs
Concealed Hinge
Use 2 hinges for sashes up to 150 kg or 3 hingesfor sashes up to 180 kg
HBH103.00.38H5 -
12
1 pc
Friction Stay
Optional
ATR22.00.38H5
