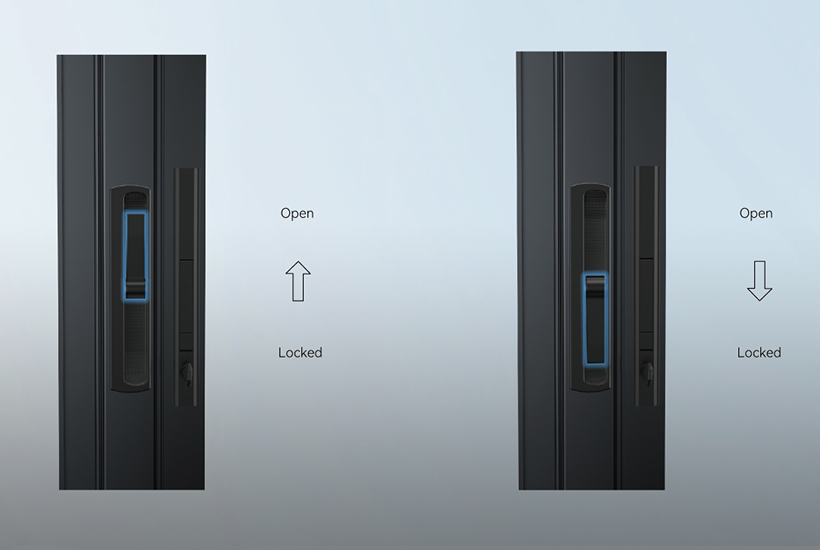

Operation Diagram
Operate the handle upward to open and downward to lock
INTEGRATED WINDOW-SCREEN SERIES

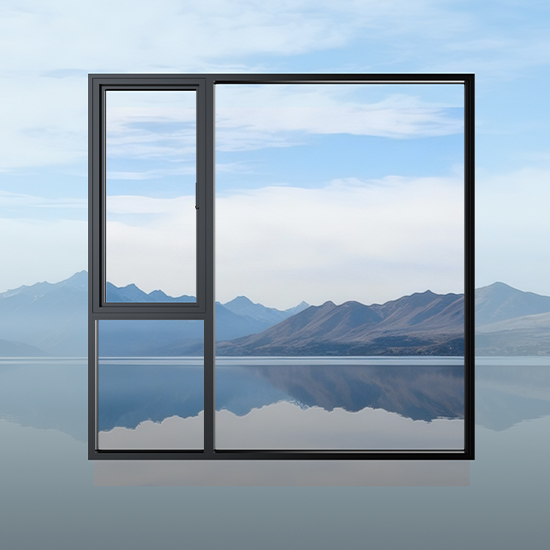

Integrated Window-and-Screen System Overview
The integrated window-and-screen system coordinates an outward-opening glass sash with a screen sash. Side-mounted and press-to-open handle options, adjustable glass-sash friction, magnetic assistance and dedicated screen hinges support controlled ventilation and everyday operation.
Technical Information
The capacities and durability values below are reproduced from the existing product page. Confirm sash size, profile, glazing, screen construction and the complete-window test results before specification.
- Opening operation
- Handle upward to open; downward to lock
- Glass-sash hinge capacity
- Up to 80 kg
- Screen-sash hinge capacity
- Up to 15 kg
- Screen-sash opening
- 180°
- Glass-sash friction
- Adjustable at the hinge
- Optional anti-fall cable
- 2,500 N tensile rating
- Glass-sash hinge durability test
- 35,000 cycles
- Screen-sash hinge durability test
- 25,000 cycles
INTEGRATED WINDOW-SCREEN SERIES
Solution Advantages

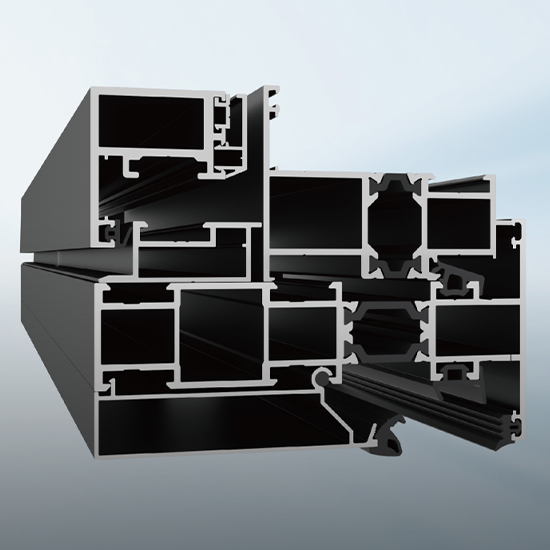

Profile Information
Concealed Side Installation
The sash handle features a side-mounted design concealed within the profile cavity, creating a flush, streamlined appearance.
Concealed Side Installation

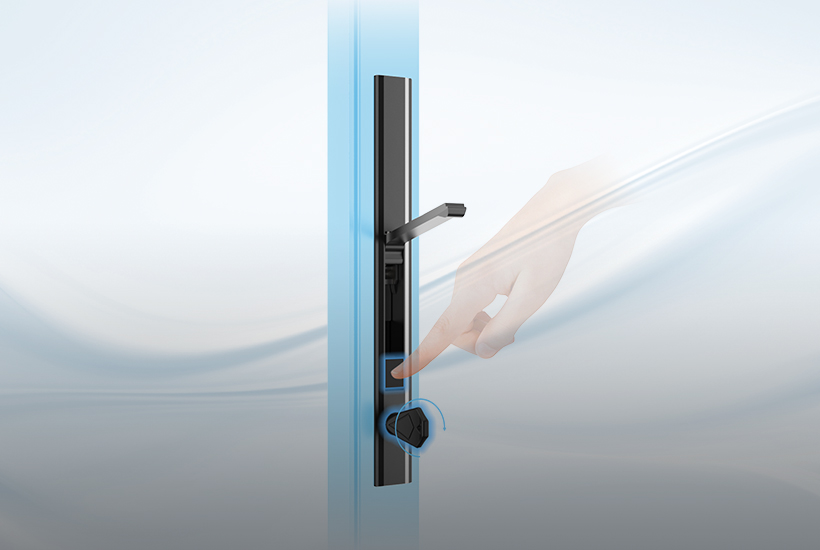

The sash handle supports one-touch press-to-open operation for effortless control. Equipped with a simple safety lock, offering daily protection with peace of mind.

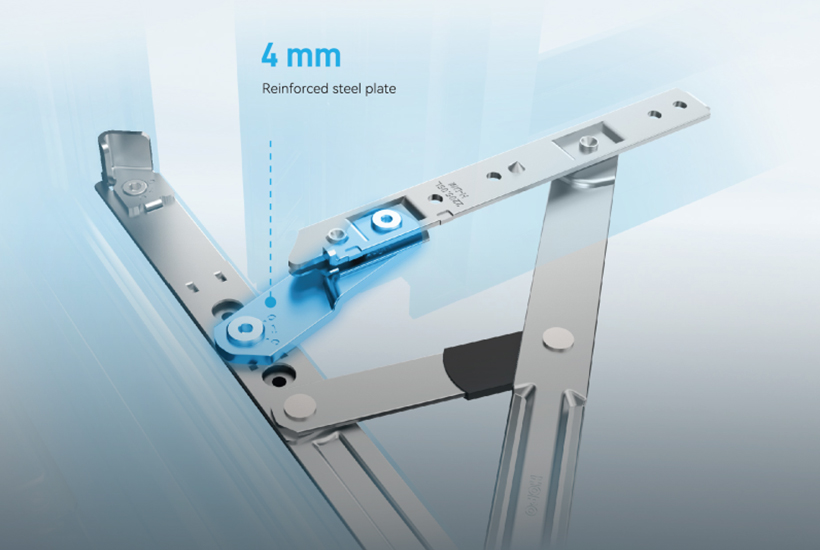

Enhanced Load Capacity
The hinge load-bearing area adopts a 4 mm reinforced steel-plate structure, supporting up to 80 kg for reliable performance on large and heavy sashes.

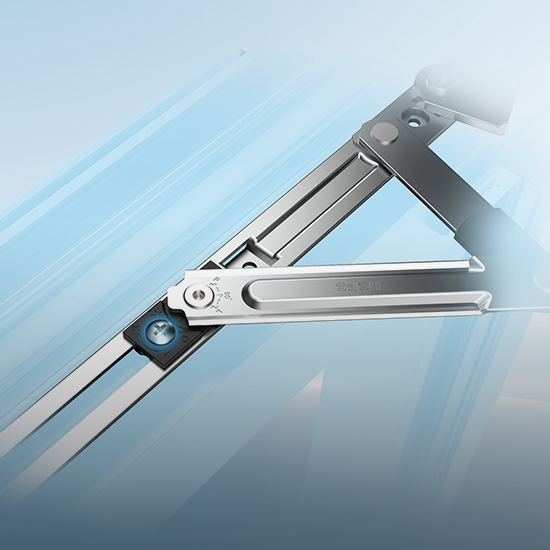

Enhanced Load Capacity

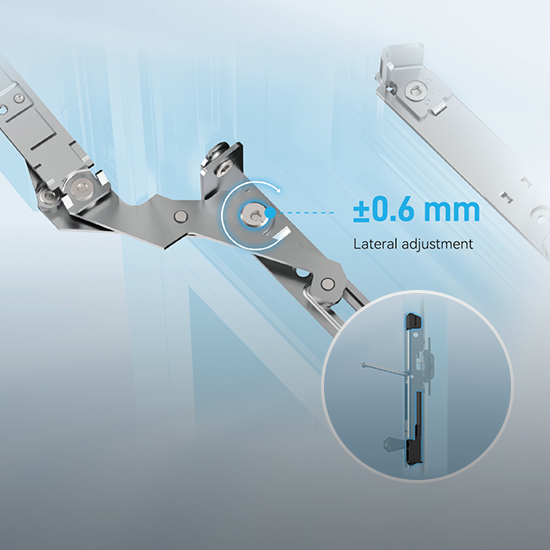

Glass sash hinge features adjustable friction control. Tightening the screw increases damping to suit varying wind pressures and user preferences.

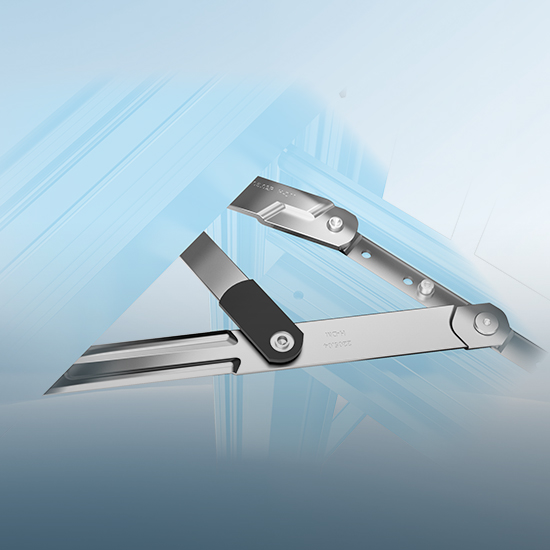

Enhanced Load Capacity
The screen hinge is made of premium stainless steel for superior corrosion resistance, supporting up to 15 kg to meet the needs of large screen panels.

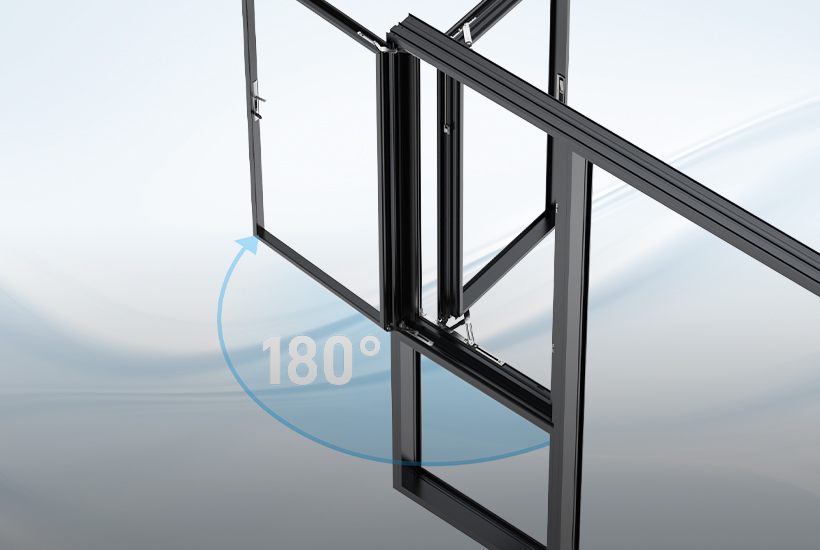

180° Opening Screen Sash
The screen hinge allows a full 180 openingwith no obstruction,enhancing airflow, visibility, and space utilization.

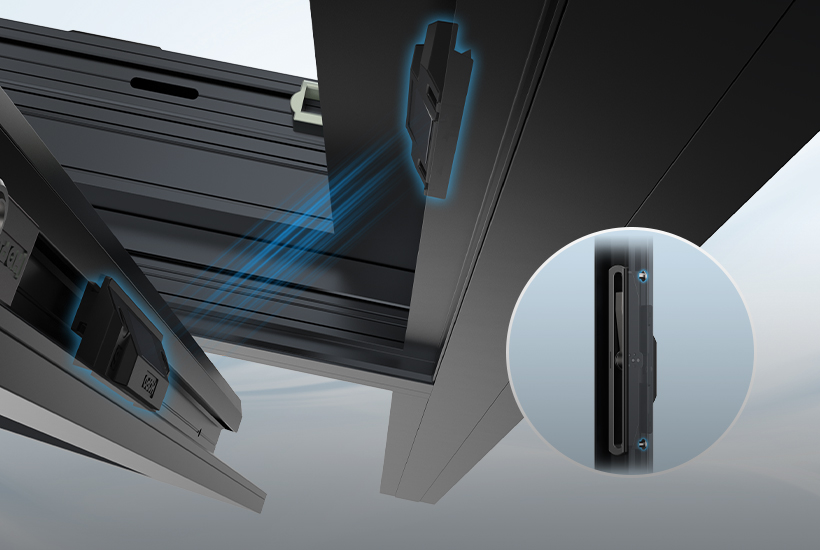

Magnetic Soft-Close
Magnetic assistance enables smooth automatic closing with elastic rebound from the gasket. Gentle suction minimizes impact noise for quieter, more comfortable operation.
Easy Installation
Magnetic-assisted design enables smooth auto-closing while effectively reducing operational noise.
Easy Installation

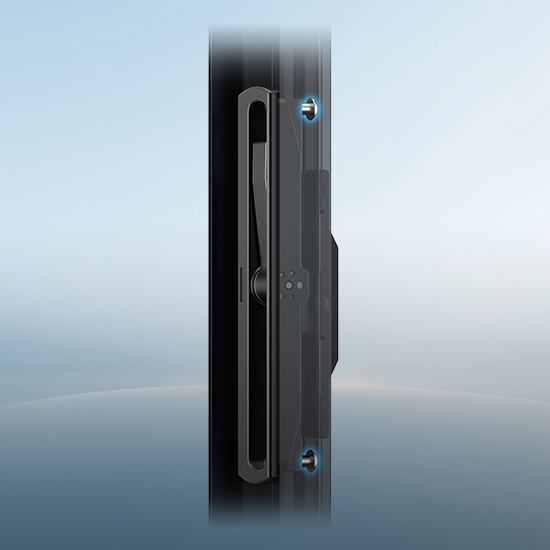

The glass sash handle uses a dual-screw C-groove fixingmethod.
Easy Installation

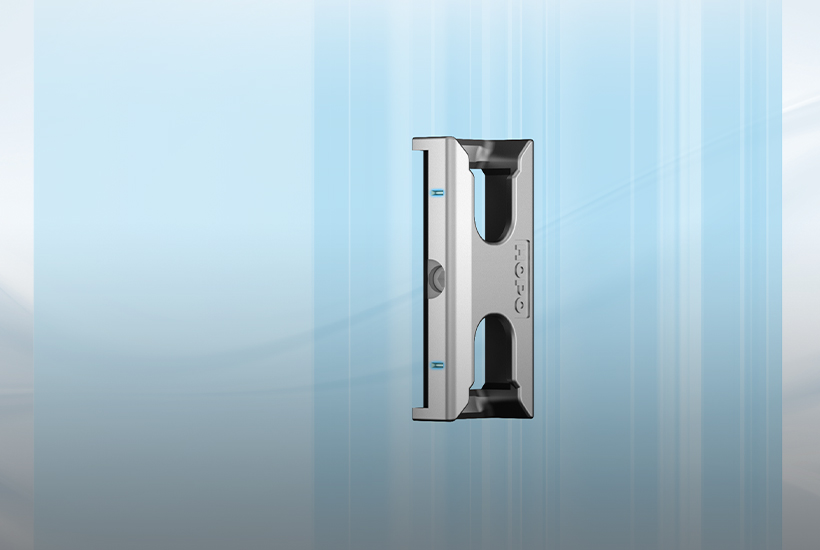

Locking plate includes alignment marks for precise one-step installation.

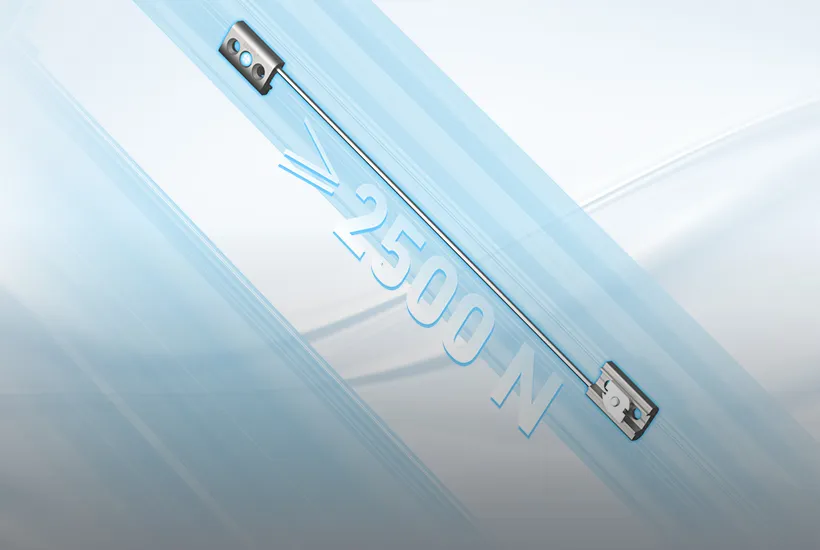

Anti-Fall Option
Optional high-strength anti-fall cable rated at 2500 Ntensile strength ensures enhanced safety for outward-opening windows.

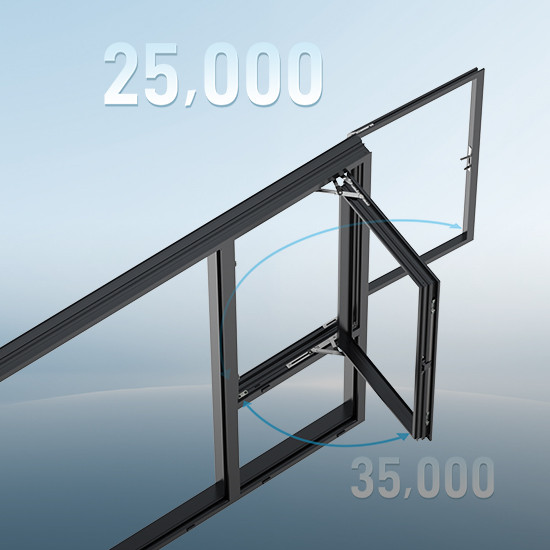

Quality Assurance
Passed 35,000-cycle and 25,000-cycle durability tests for glass and screen sash hinges, ensuring lasting performance and worry-free reliability.
INTEGRATED WINDOW-SCREEN SERIES
Solution Configuration
The component list below preserves the 14 rows, quantities, units and product codes from the existing integrated window-and-screen configuration table.
-
1
1 pc
MA500 Handle
MAL500.021.168H5 -
2
1 pc
Transfer Rod
APT20.00.021 -
3
2 pcs
Safety Locking Rod
ALR28.00.021H4 -
4
2 pcs
Safety Locking Plate
ALP33.00.021H4 -
5
1 pcs
Frame-Sash Flush 180° Light-Duty Hinge
CATH24.00.1T38H5 -
6
2 sets
HSA Magnetic Auxiliary Device
AB100.00.06H4 -
7
1 pc
AH200 Handle (Outward-Opening
AH200.16.168H4 -
8
1 pc
Outward-Opening Transfer Rod
APT21.11.223S04 -
9
2 pcs
Safety Locking Rod
ALR28.00.021H4 -
10
2 pcs
Safety Locking Plate
ALP33.00.021H4 -
11
1 Pair
C-groove Hinge (Right)
FH18.2216.15C38RH5 -
12
1 pc
Anti-Sag Block
AAS10.00.01 -
13
1 pc
Flip Support Plate
ASP20.00.021 -
14
1 pc
Anti-Fall Device
ADD31.00.31C068H2
