U TIMBER 13 SERIES
U Timber 13 Series Tilt-and-Turn System

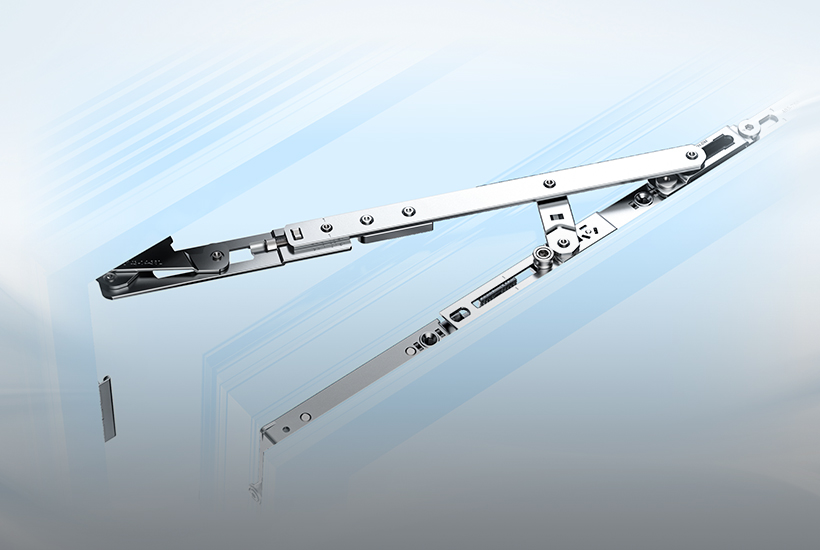

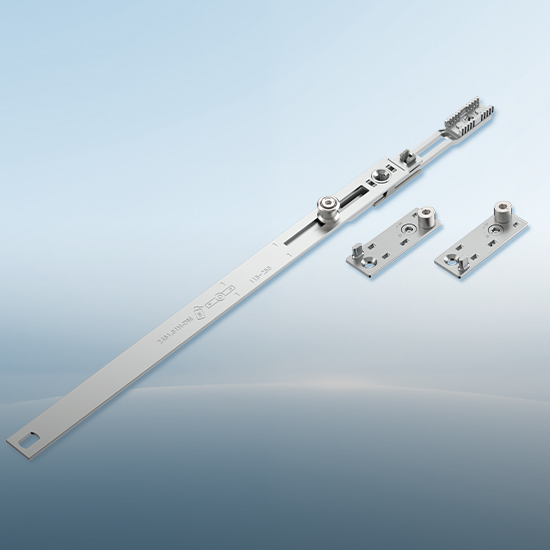

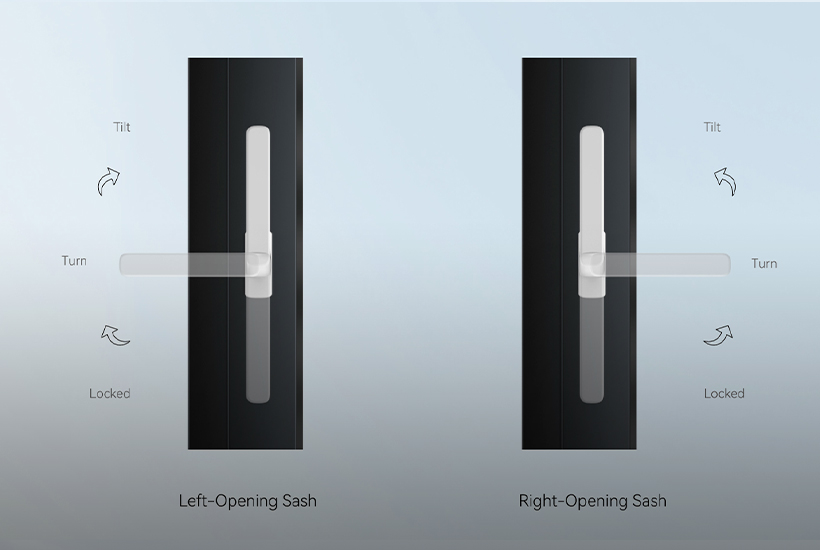

The U Timber 13 series tilt-and-turn system coordinates a handle, transmission, anti-misoperation device, anti-pry locking points and hinge assembly for U-groove timber windows. Corrosion-resistant components, drill-free installation and rolling-lift anti-sag support are combined with adjustment at the locking points and upper and lower hinges.
Technical Information
The information below is limited to adjustment ranges, construction and installation features stated on the existing product page. Confirm the timber profile, sash dimensions, load and complete-window performance before specification.
- System series
- U Timber 13 tilt-and-turn
- Profile application

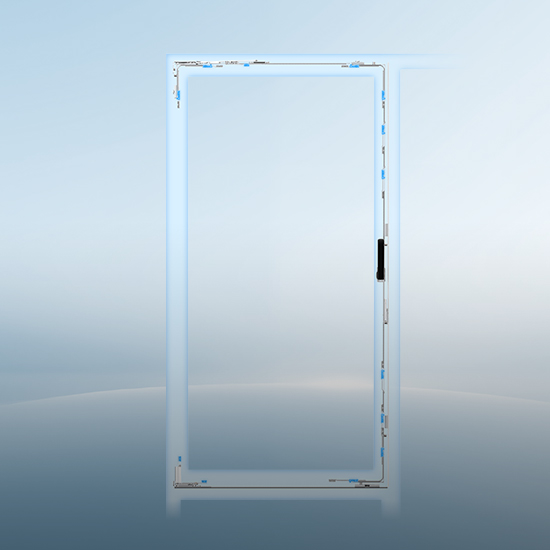

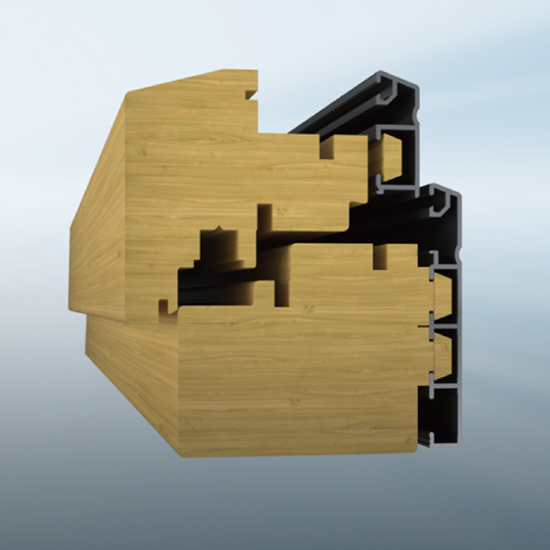

- U-groove timber window
- Locking-point height adjustment
- +1.5 mm
- Locking-point eccentric adjustment
- 1 mm, as stated in the existing page
- Upper-hinge adjustment
- 1 mm at the upper hinge
- Upper-hinge horizontal adjustment
- -4 to +2 mm
- Lower-hinge horizontal adjustment
- -1 to +2 mm
- Lower-hinge vertical adjustment
- 0 to +3 mm
U TIMBER 13 SERIES
Solution Advantages
Profile Information
HOPO U-Groove Wood Tilt-Turn Window Hardware Control System
Rust-Resistant, Corrosion-Resistant, Precision Craftsmanship
HOPO U-Groove Wood Tilt-Turn Window Hardware Control System

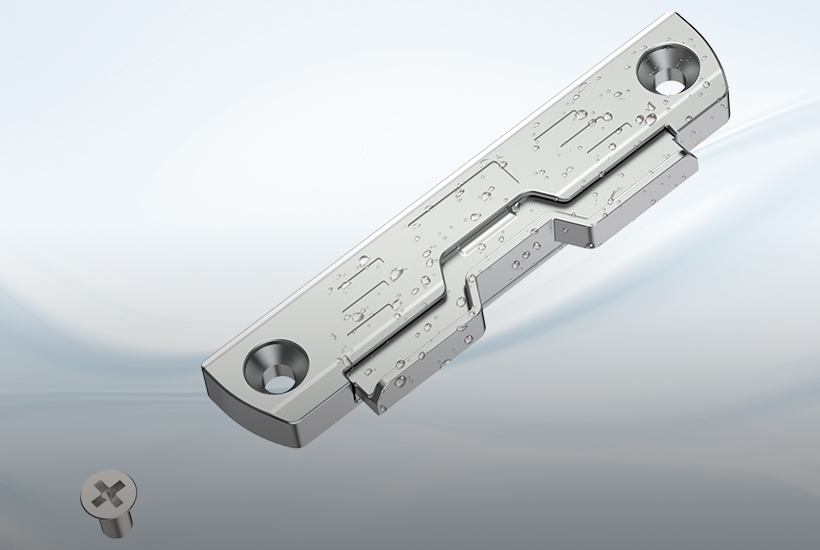

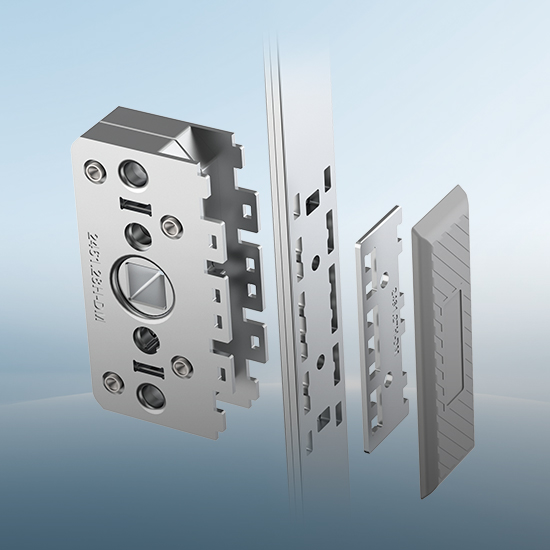

Drill-free installation design preserves surface coating integrity and enhances corrosion protection.
HOPO U-Groove Tilt-Turn Window Hardware Control System
Performs reliably across temperature extremes -from tropical humidity to cold regions - maintaining lasting brilliance.
Flexible Adjustment, Multiple Adaptations
Backset allows quick replacement, improving installation efficiency.
Flexible Adjustment, Multiple Adaptations
Offered in locking and non-locking configurations,minimizing inventory pressure while meetingmulti-point locking and sealing requirements.
Flexible Adjustment, Multiple Adaptations
Patented rolling-lift and anti-sag technology effectively prevents sash deflection and ensures lasting stability.
Flexible Adjustment, Multiple Adaptations
Reliable safety system with permanent anti-misoperation protection for consistent and secure operation.
Flexible Adjustment, Multiple Adaptations
Prevents incorrect operation in tilt position, ensuring user safety and smooth functionality
Flexible Adjustment, Multiple Adaptations

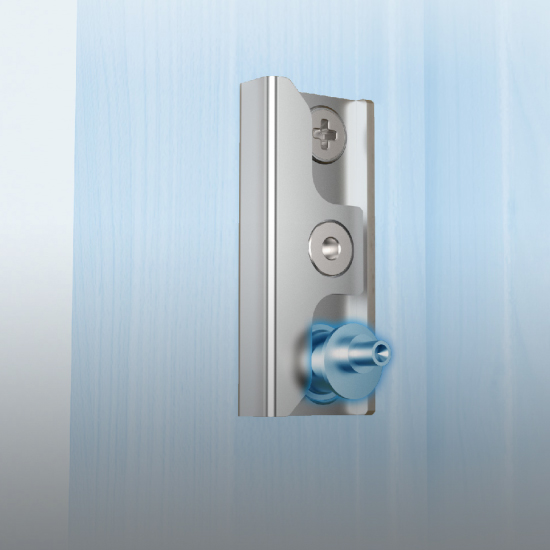

Anti-prying locking points andlocking plates design enhances overall security and protection levels.
Flexible Adjustment, Multiple Adaptations

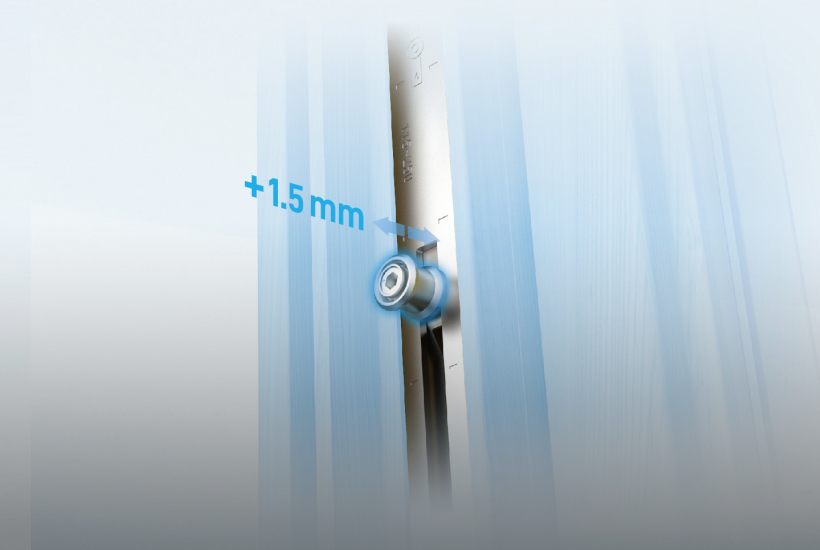

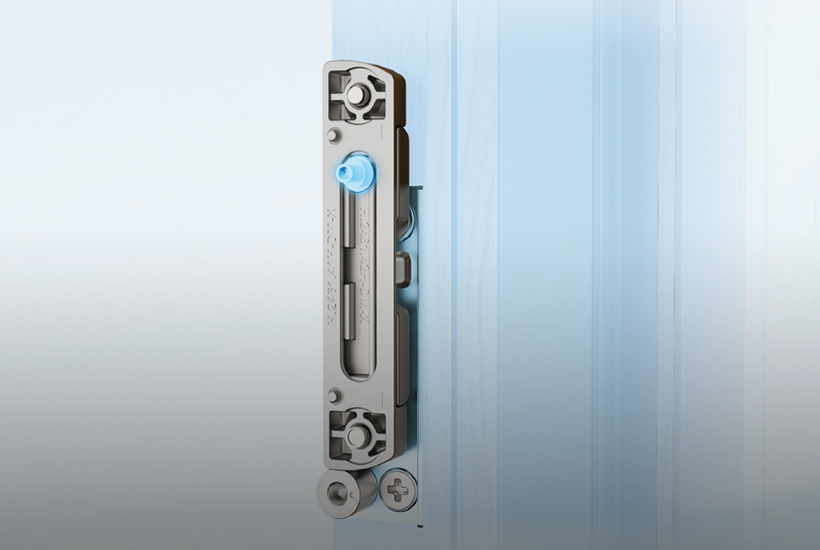

Locking point adjustable up to +1.5 mm in height and 1 mm in eccentricity ensures precise engagement and airtight sealing.
Superior Sealing & Strong Resistance

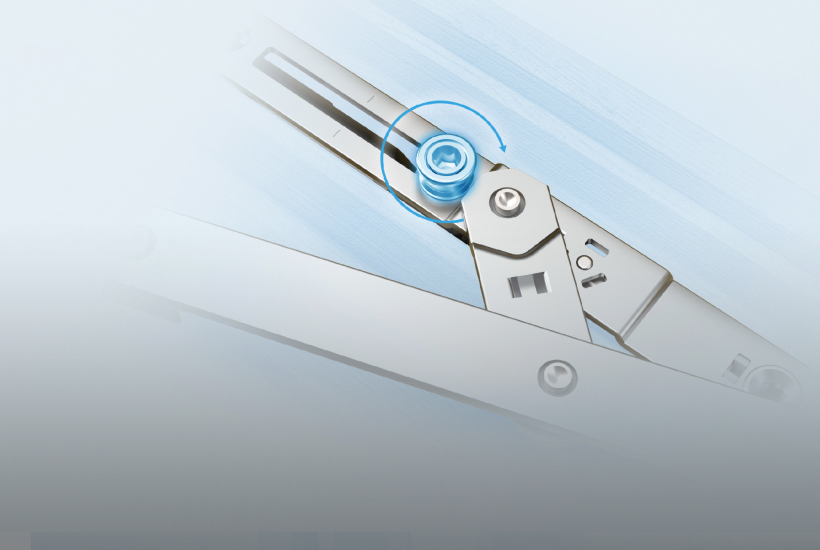

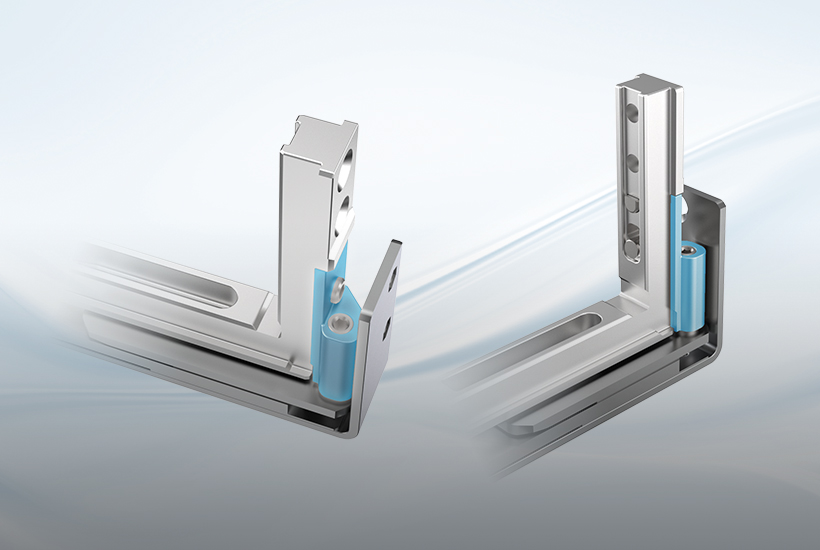

Upper hinge adjustable by 1 mm to enhance corner sealing performance
Superior Sealing & Strong Resistance

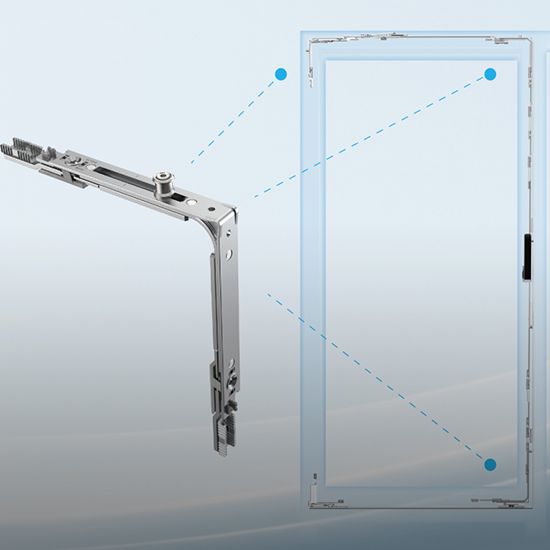

Upper hinge can be equipped with a corner transmission unit to enhance compression and wind-pressure resistance.
Multi-Dimensional Adjustment

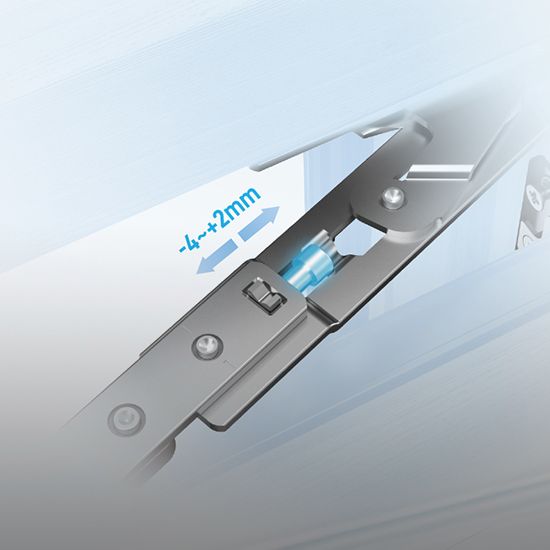

The upper hinge is horizontally adjustable from -4mm to+2 mm.
Multi-Dimensional Adjustment

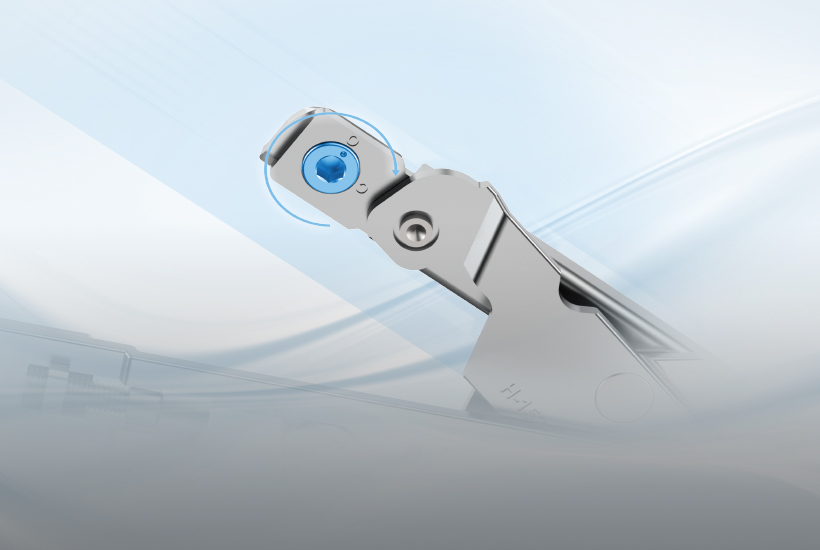

The lower hinge is horizontally adjustable from -1 mm to +2 mm and vertically adjustable from 0 mm to +3mm.
Easy Installation

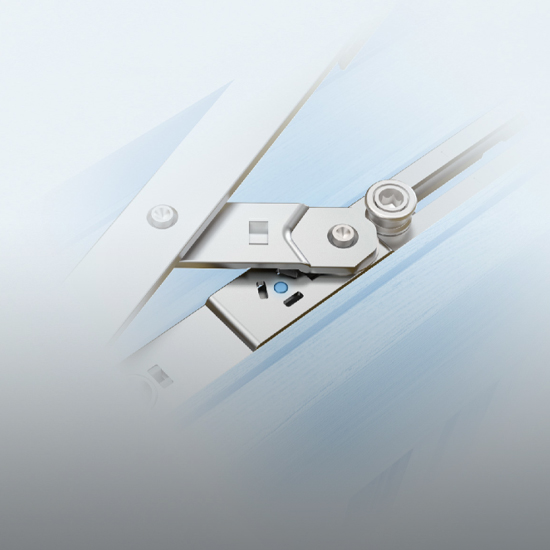

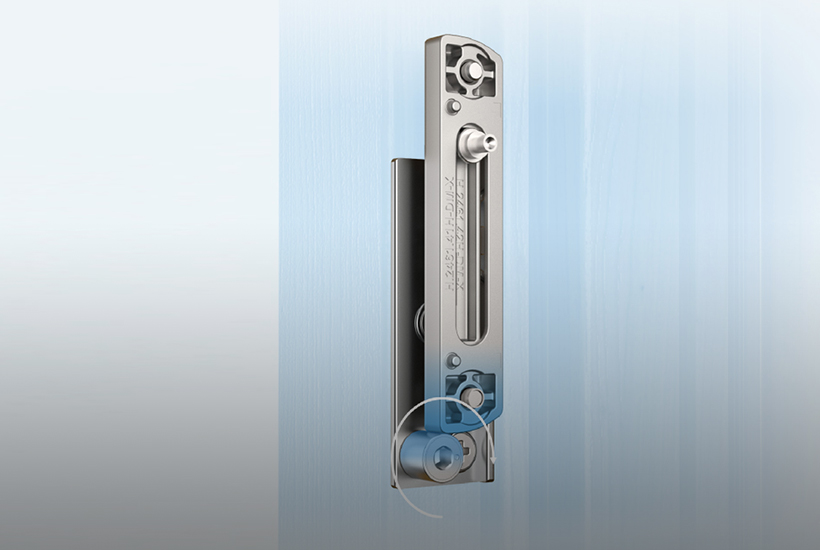

Upper hinge adopts an eccentric shaft and nut-block clamping support for quick 90 positioning and secure fastening.
Easy Installation

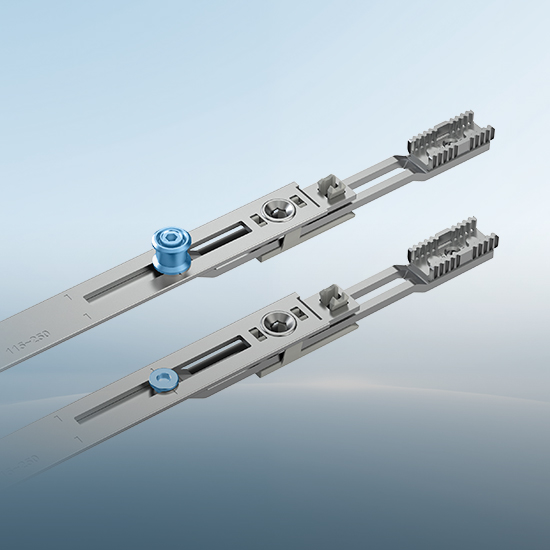

Transmission assembly includes an initial positioning point, enabling one-step, precise, error-free installation.
U TIMBER 13 SERIES
Solution Configuration
The component list below preserves the 12 rows, quantities, units and product codes from the existing U Timber 13 configuration table.
-
1
1 pc
PH940 Handle
PH940.00.077H5 -
2
1 pc
Square Spindle
SP07.12.35C021X -
3
2 pcs
M4 Countersunk Screw
H.2104.21.40C38X-01 -
4
1 pc
Transmission Device
GK20.15.38H4 -
5
3 pcs
Corner Transmission Device
PCT20.00.38H5 -
6
5 pcs
Safety Locking Plate
PLPXX-01 -
7
1 pc
Stainless-Steel Tilt Locking Plate
PLPXX-02 -
8
1 pc
Anti-Misoperation Device (Right)
POW20.00.223RH4 -
9
1 pc
Anti-Misoperation Lifting Plate (Right)
POWPXX-01 -
10
2 pcs
Extender (Anti-Pry Lock Point)
PK20.25.38H5 -
11
2 pcs
Extender
PE20 .25.00C38H5 -
12
1 set
Hinge Assembly (Right)
PPTTXX.-01
