UC-GROOVE SERIES

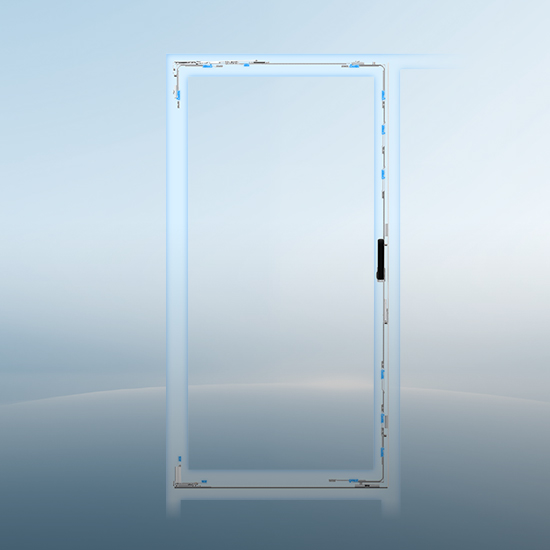

UC-Groove Tilt-and-Turn System Overview
The UC-groove tilt-and-turn system combines a rosette handle, transmission components, anti-misoperation protection, anti-pry locking points and right- or left-hand hinge options. The illustrated base configuration supports a 100 kg sash and a 90° opening, with optional extensions for wider and taller sashes.
Technical Information
The application ranges below are reproduced from the existing configuration and solution-advantage content. Select the required width and height extensions and confirm the final profile and complete-window design.
- Maximum sash load
- 100 kg
- Opening angle
- 90°
- Base configuration sash width
- 495-760 mm
- Base configuration sash height
- 695-965 mm
- Width extension
- Optional for sash widths 760-900 mm
- Height extension ranges
- 925-1,465 / 1,425-1,965 / 1,925-2,465 mm
- Locking-point height adjustment
- +1.5 mm
- Locking-point eccentric adjustment
- ±1 mm
- Lower-hinge adjustment
- -1 to +2 mm horizontal; 0 to +3 mm vertical
UC-GROOVE SERIES
Solution Advantages

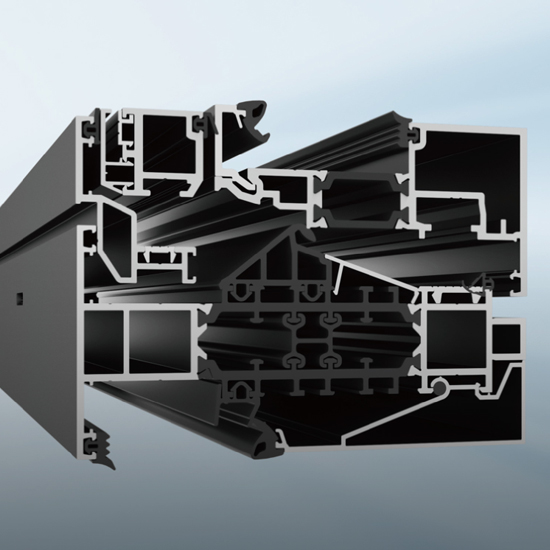

Profile Information
HOPO UC-Groove Tilt-Turn Window Hardware Control System
Rust-Resistant,Corrosion-Resistant, Precision Craftsmanship
High-grade anti-corrosion stainless steel ensures lasting stability and durability.
HOPO UC-Groove Tilt-Turn Window Hardware Control System
Drill-free installation design preserves surface coating integrity and enhances corrosion protection.
HOPO UC-Groove Tilt-Turn Window Hardware Control System
Performs reliably across temperature extremes -from tropical humidity to cold regions -maintaining lasting brilliance.
Flexible Adjustment, Multiple Adaptations

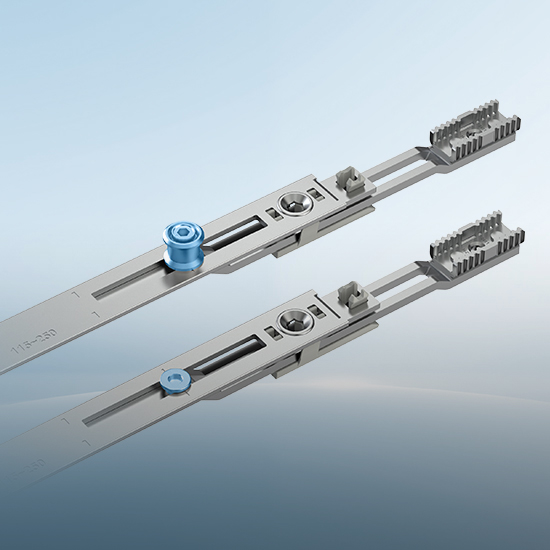

Backset allows quick replacement, improving installation efficiency.
Flexible Adjustment, Multiple Adaptations
Offered in locking and non-locking configurations,minimizing inventory pressure while meetingmulti-point locking and sealing requirements.
Flexible Adjustment, Multiple Adaptations

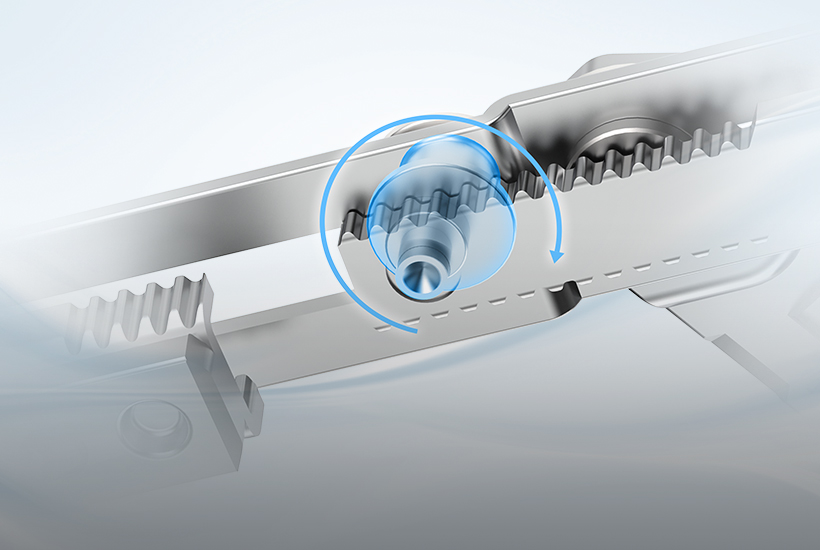

Patented rolling-lift and anti-sag technologyeffectively prevents sash deflection and ensureslasting stability.
Flexible Adjustment, Multiple Adaptations
Reliable safety system with permanent anti-misoperation protection for consistent and secure operation.
Flexible Adjustment, Multiple Adaptations

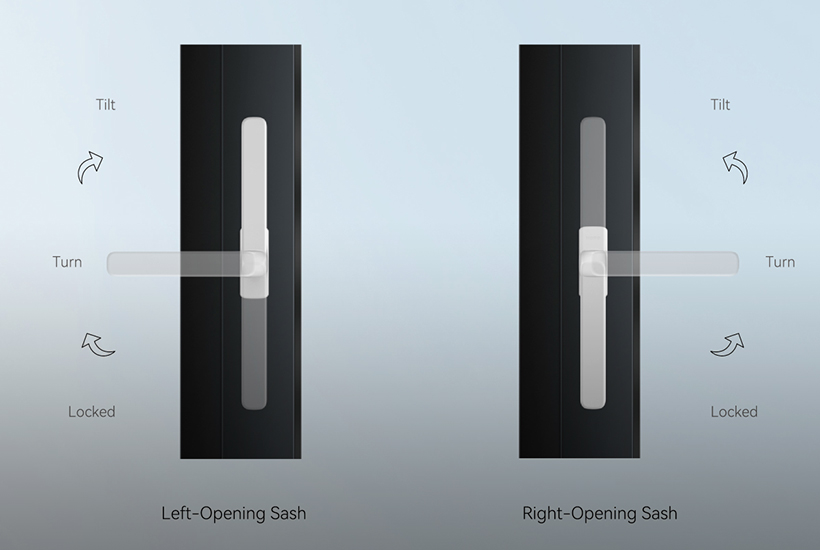

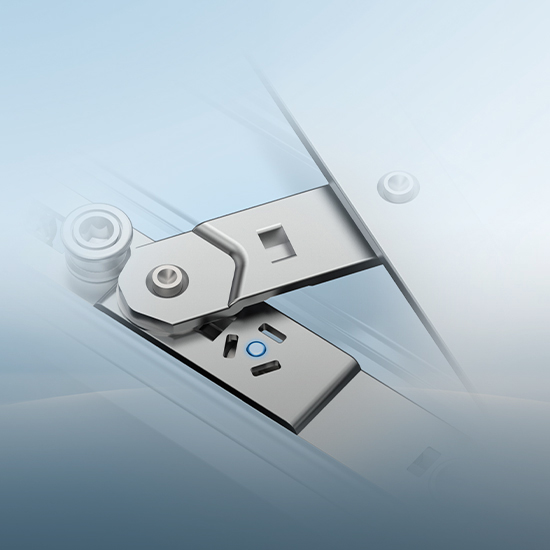

Prevents incorrect operation in tilt position, ensuring user safety and smooth functionality
Flexible Adjustment, Multiple Adaptations

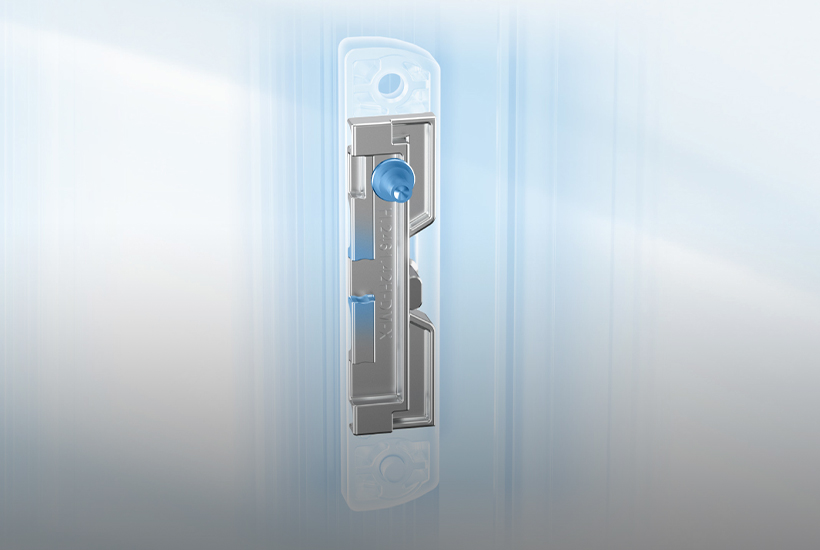

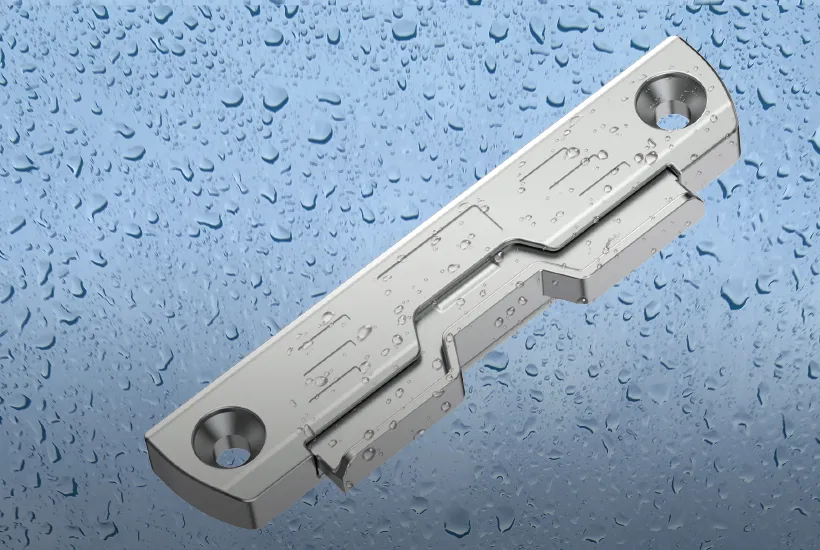

Anti-prying locking points andlocking plates design enhances overall security and protection levels.
Flexible Adjustment, Multiple Adaptations

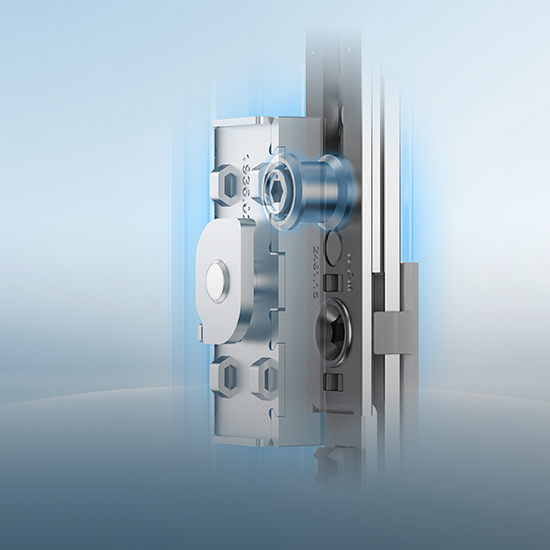

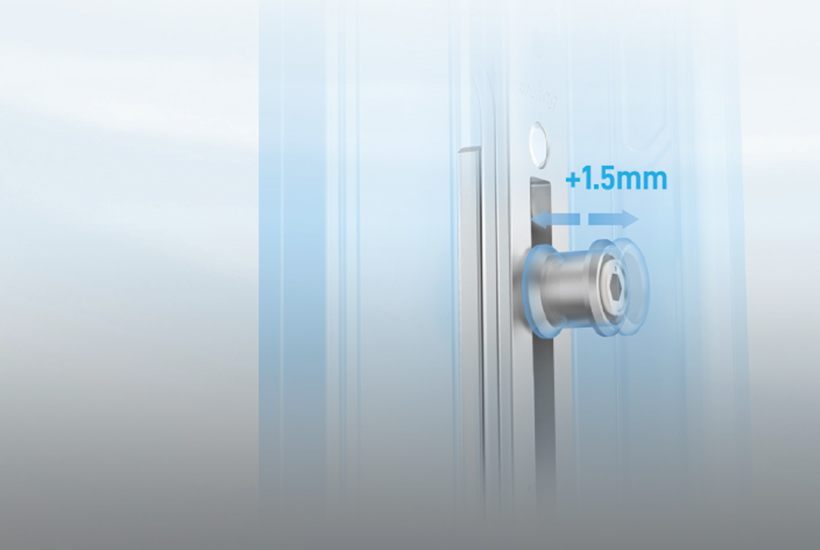

Locking point adjustable up to +1.5 mm in height and ±1 mm in eccentricity ensures precise engagement and airtight sealing.
Superior Sealing & Strong Resistance

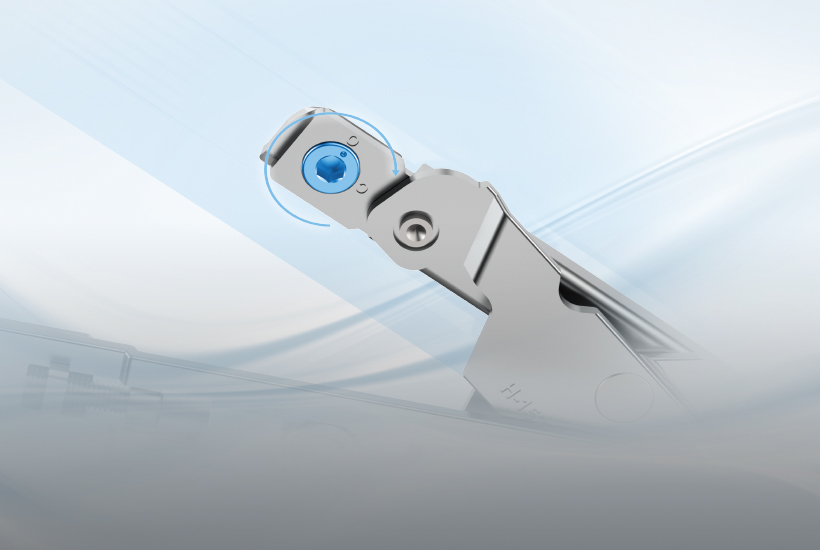

Upper hinge adjustable by ±1 mm to enhance corner sealing performance
Superior Sealing & Strong Resistance

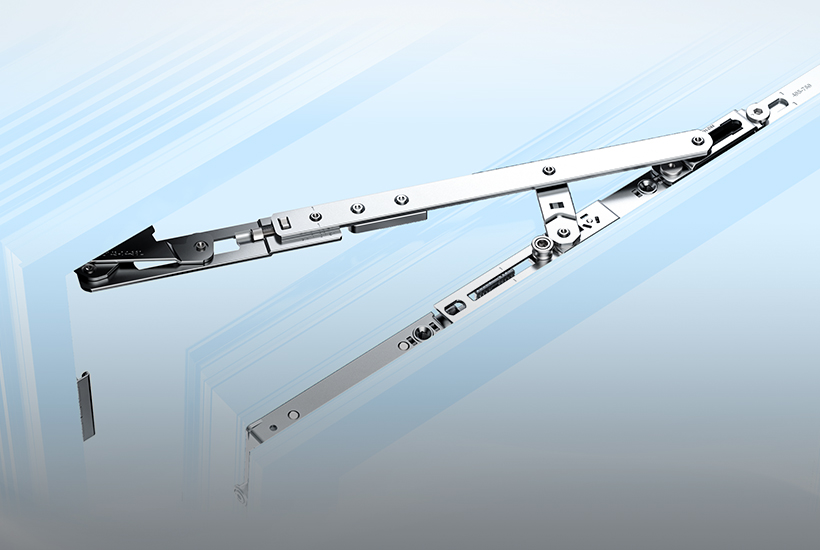

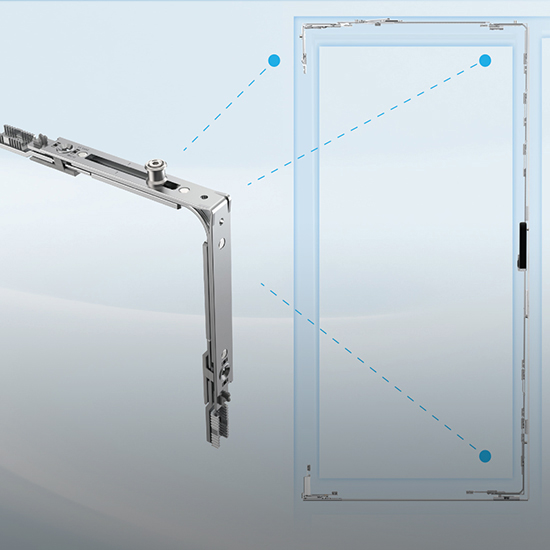

Upper hinge can be equipped with a corner transmission unit to enhance compression and wind-pressure resistance.
Multi-Dimensional Adjustment

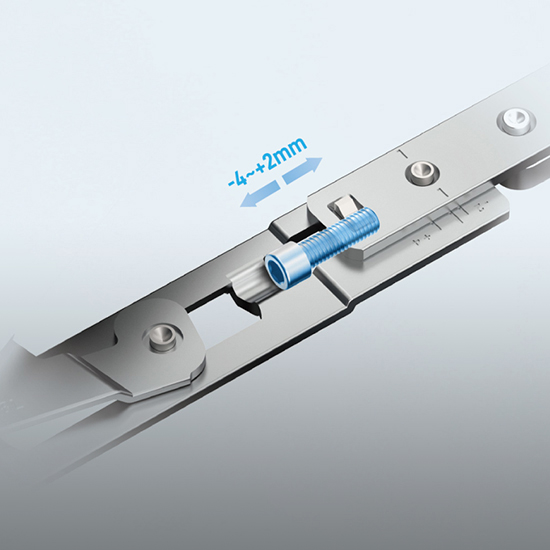

The upper hinge is horizontally adjustable from -4mm to+2 mm.
Multi-Dimensional Adjustment

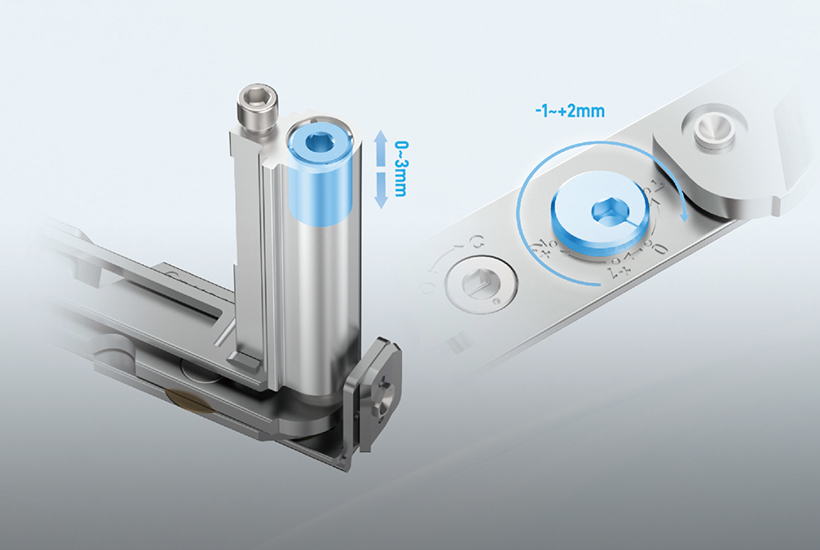

The lower hinge is horizontally adjustable from -1 mm to +2 mm and vertically adjustable from 0 mm to +3mm.
Easy Installation

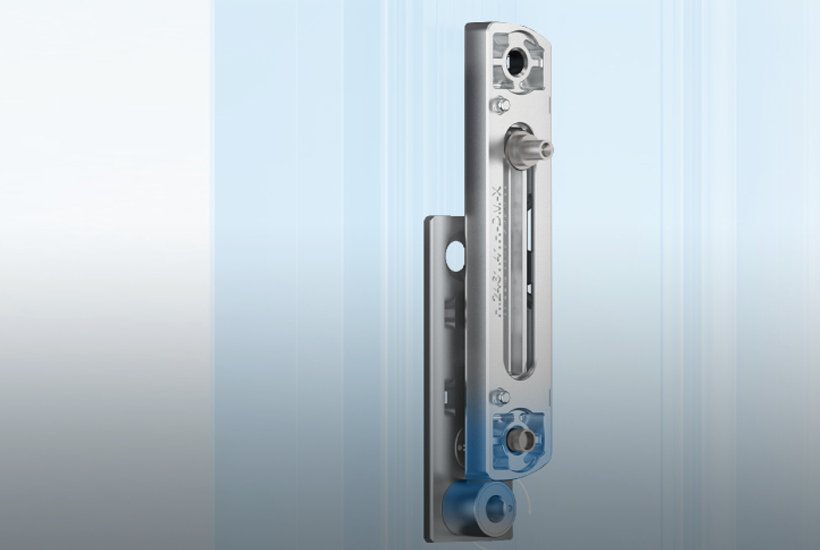

Upper hinge adopts an eccentric shaft and nut-block clamping support for quick 90 positioning and secure fastening.
Easy Installation

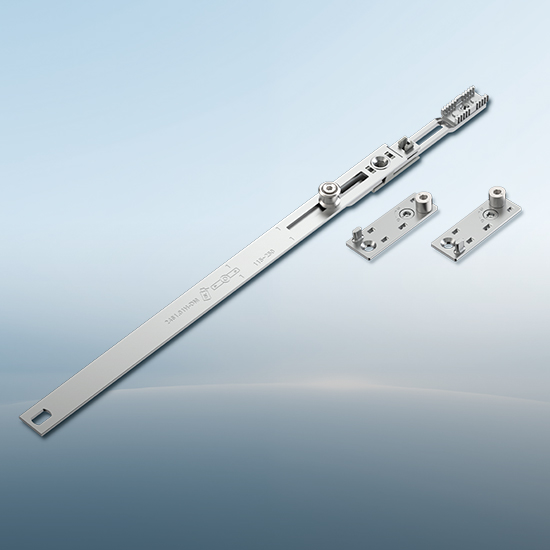

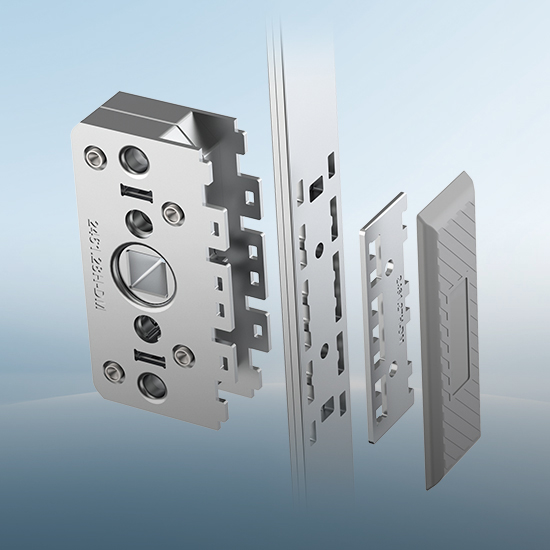

Transmission assembly includes an initial positioning point, enabling one-step, precise, error-free installation.
UC-GROOVE SERIES
Solution Configuration
The component list below preserves every standard and optional row from the existing UC-groove configuration table, including alternative left- and right-hand parts and repeated item numbers.
-
1
1 pc
PH937 Rosette Handle
Opening angle 90° / Max. Load 100kgApplicable sash width 495-760 mmApplicable sash height 695-965 mm
PH937.00.1T168WA3 -
2
1 pc
Square Spindle
SP07.12.30C021X -
3
1 pcs
Transmission Device
GK20.15.38WA4 -
4
3 pcs
Corner Transmission Device
PCT20.00.38WVA5 -
5
4 pc
Safety Locking Plate
ALP23.00.38WA5 -
6
1 pc
Stainless-Steel Tilt Locking Plate
PLP21.00.38WA5 -
7
0 pc
Anti-Misoperation Device (Left)
POW20.00.223LWA4 -
7
1 pc
Anti-Misoperation Device (Right)
POW20.00.223RWA4 -
8
0 pc
Anti-Misoperation Lifting Plate (Left)
AOWP20.00.38LX -
8
1 pc
Anti-Misoperation Lifting Plate (Right)
AOWP20.00.38RX -
9
1 set
Extender (Anti-Pry Locking Point)
PK20.25.38WVA5 -
10
0 set
Hinge Assembly (Left)
CPTT10.40.38LWA5 -
10
1 pc
Hinge Assembly (Right)
CPTT10.40.38RWA5 -
11
1 pc
Extender(Anti-Pry Locking Point)
Required when sash width760-900 mm, 1 piece each
PK20.25.38WA5 -
12
1 pc
Safety Locking Plate
ALP23.00.38WA5 -
13
1 pc
Safety Locking Plate
When sash height 925-1465 mm: onepiece of each optional partWhen sash height 1425-1965 mm: twopieces of each optional partWhen sash height 1925-2465 mm: threepieces of each optional part
ALP23.00.38WA5 -
14
1 pc
Extender (Anti-Pry Locking Point)
PK20.25.XXWA5 -
15
1 pc
Extender
PE20.25.00WA5
