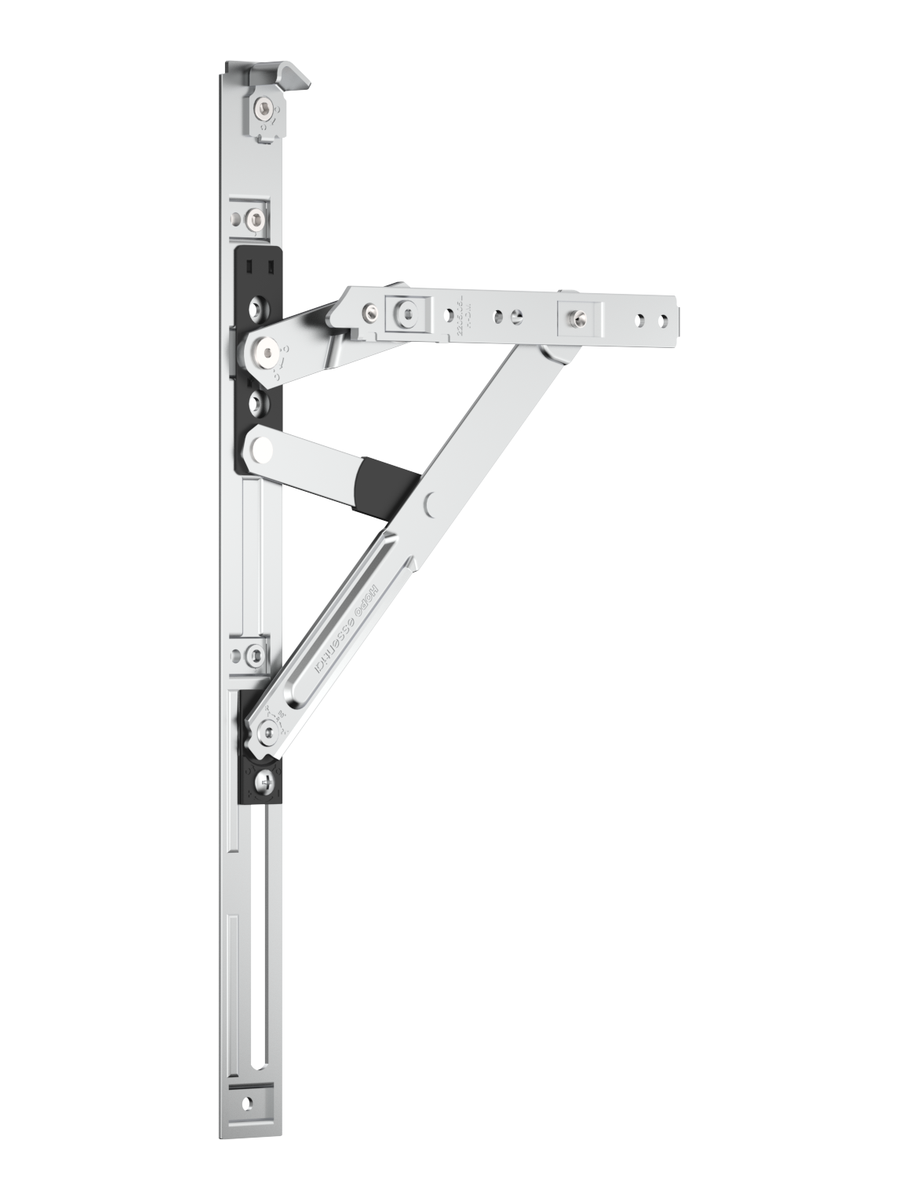

FH17-2916-15C38HE5.1920

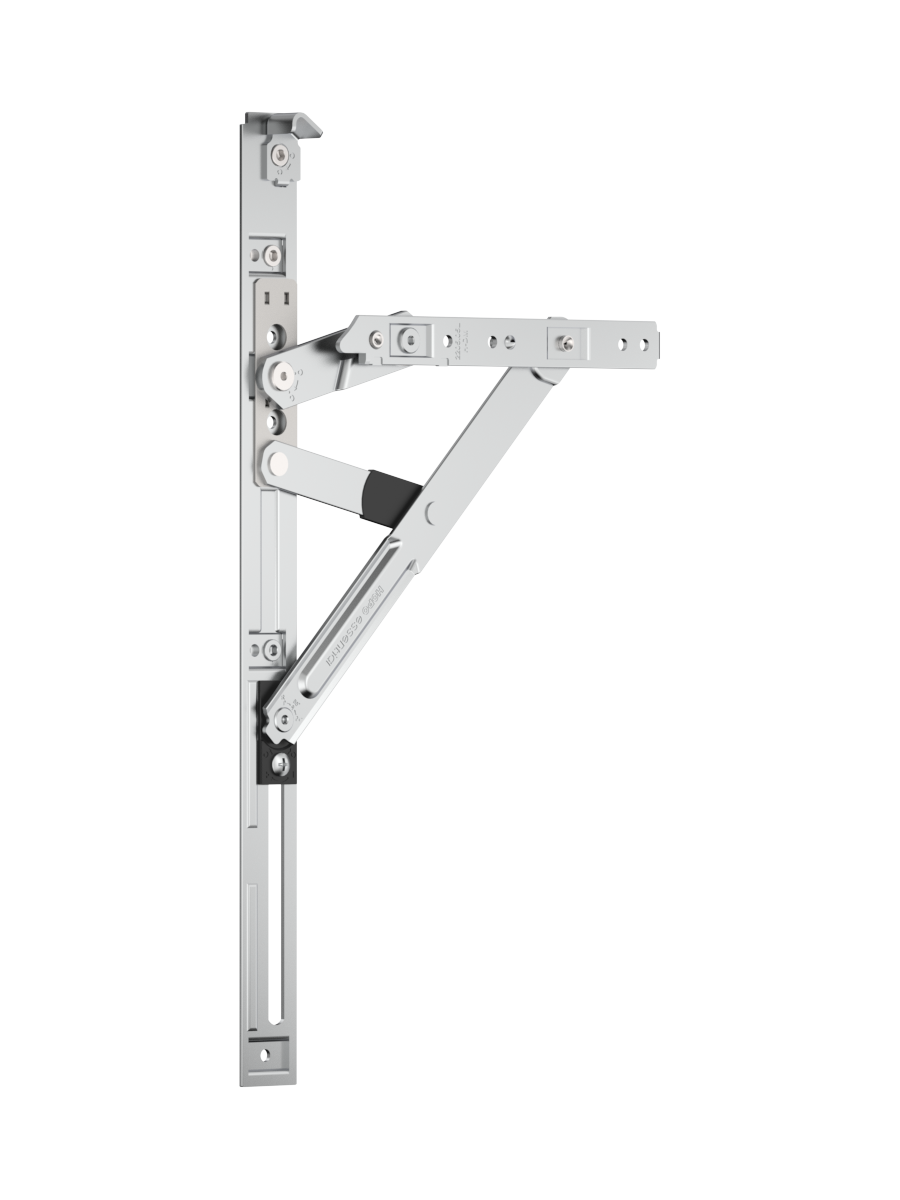

FH17-2916-15C38HE5.2325
FH17 Friction Hinge (Glass Sash)
FH17-2916-15C38HE5.1920
FH17-2916-15C38HE5.2325
Friction HingeHardware Hinge
FH17 Friction Hinge (Glass Sash)
CE Certified
Product Series:HOPO essential
Product Code:FH17.2916.15C38HE5
Hinge Size:15 inches
Main Material:Stainless Steel
Load Capacity:60 kg
Max. Opening Angle:90°
Adjustment:Friction Force Adjustable
Application:K-Groove Conventional and Sash-Frame Flush Outward Opening Profile
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.

Technical drawings and specifications

FH17 Friction Hinge (Glass Sash) — FH17.2916.15C38HE5

FH17.2916.15C38HE5

HOPO Hardware Catalogue 2025 · Catalogue page 73

View full-size drawing

Three-view Drawing

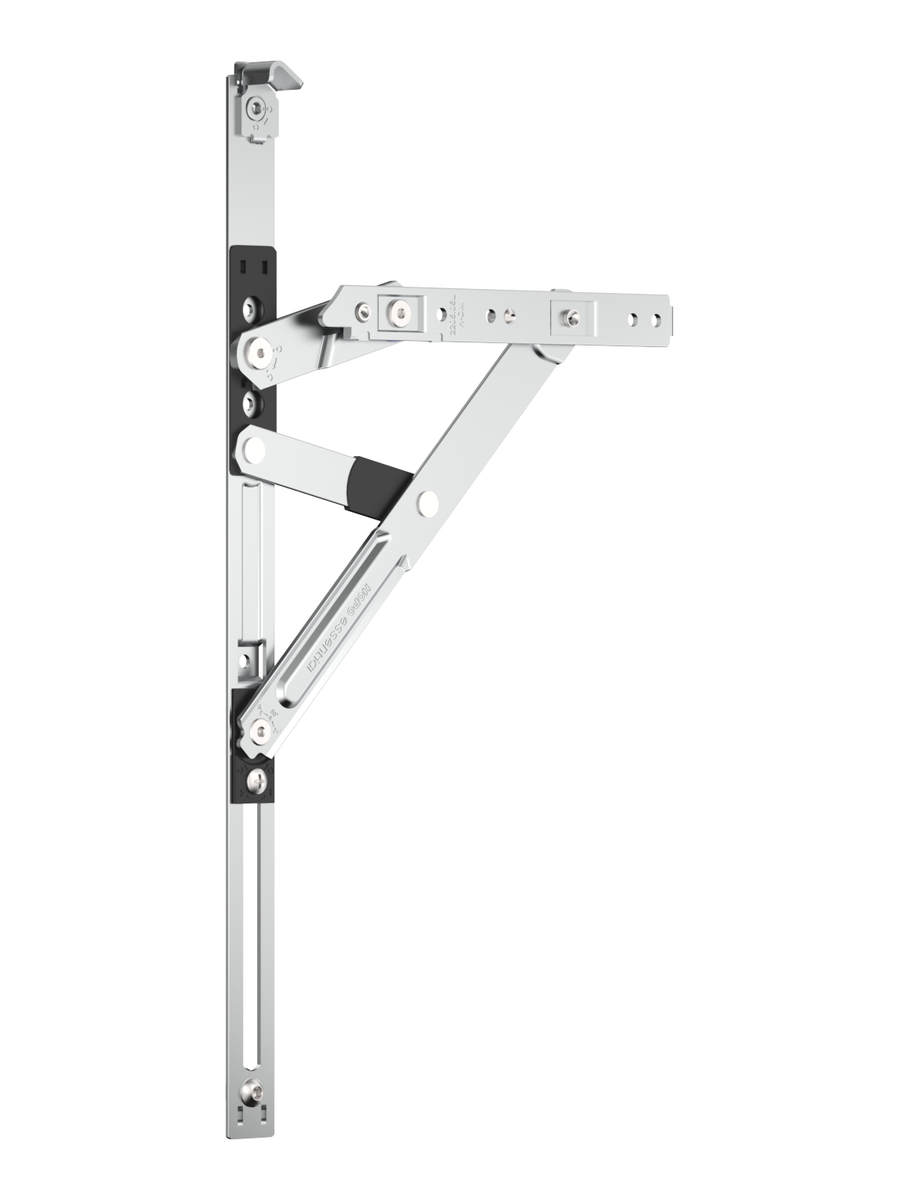

FH17 Friction Hinge (Glass Sash) — FH17.2216.15C38HE5

Listed matching SKUs: FH17.2216.15C38HE5

Source product: BOASS · View full-size drawing

Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
FH17 Friction Hinge (Glass Sash)
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.
FH17-2916-15C38HE5.1920
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.
FH17-2916-15C38HE5.2325
Download TDS Installation Manual
