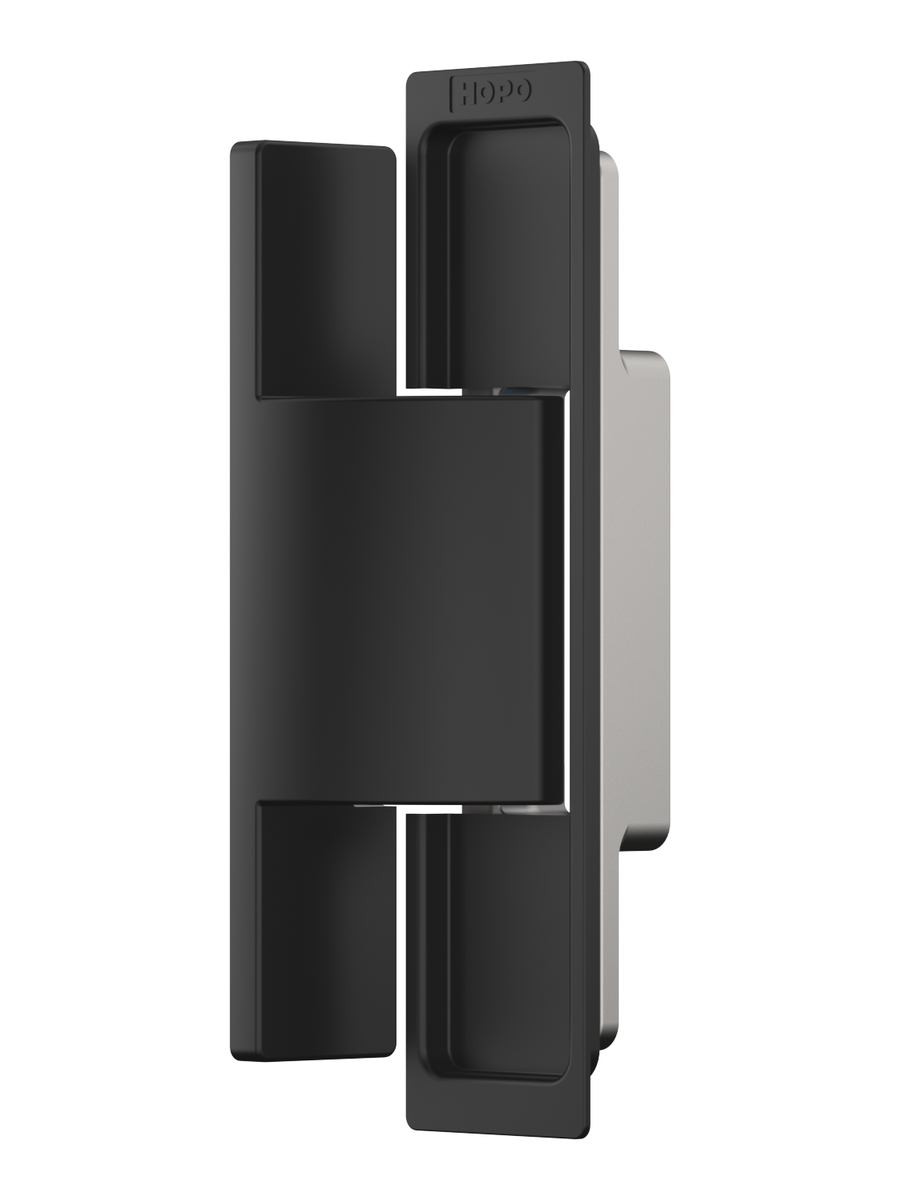

HBH101 Concealed Hinge
HBH101 Concealed Hinge
Concealed HingeHardware Hinge
HBH101 Concealed Hinge
Product Series:HOPO
Product Code:HBH101.00.20CXXH4
Main Material:Stainless Steel
Application:Eco-Door
Load Capacity:2 units/80 kg, 3 units/120 kg
Max. Opening Angle:110°
Surface Treatment:06—Black
Application:Eco-Door
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.

Technical drawings and specifications

HBH101 Concealed Hinge — HBH101.00.20CXXH4

HBH101.00.20CXXH4

HOPO Hardware Catalogue 2025 · Catalogue page 78

View full-size drawing

Drilling diagram

HBH101 Concealed Hinge — HBH101.00.20C06H4

Listed matching SKUs: HBH101.00.20C06H4

Source product: BOASS · View full-size drawing

Installation diagram

HBH101 Concealed Hinge — HBH101.00.20C06H4

Listed matching SKUs: HBH101.00.20C06H4

Source product: BOASS · View full-size drawing

Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
HBH101 Concealed Hinge
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.
Precision hardware detail
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.
Integrated window and door hardware
Download TDS Installation Manual
