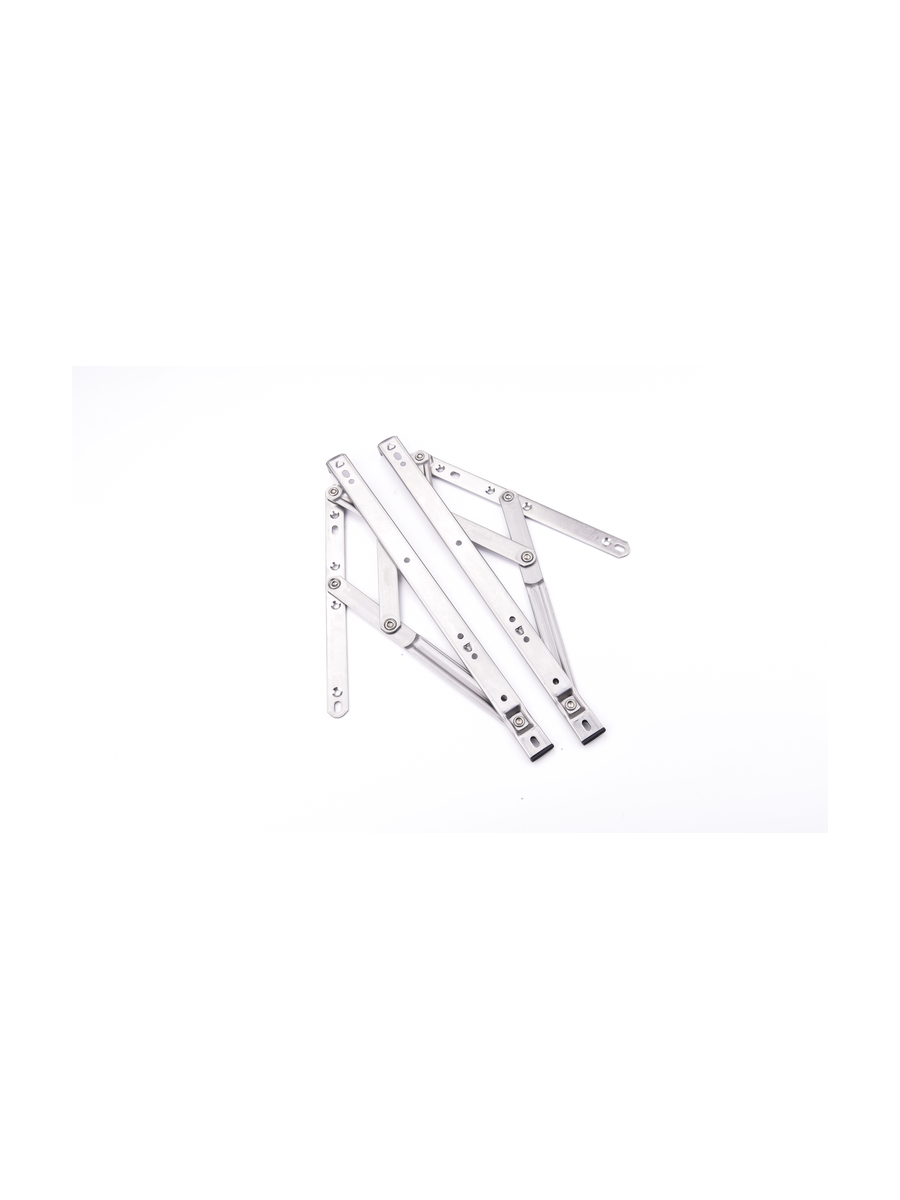

HFH22.16.10C38-4

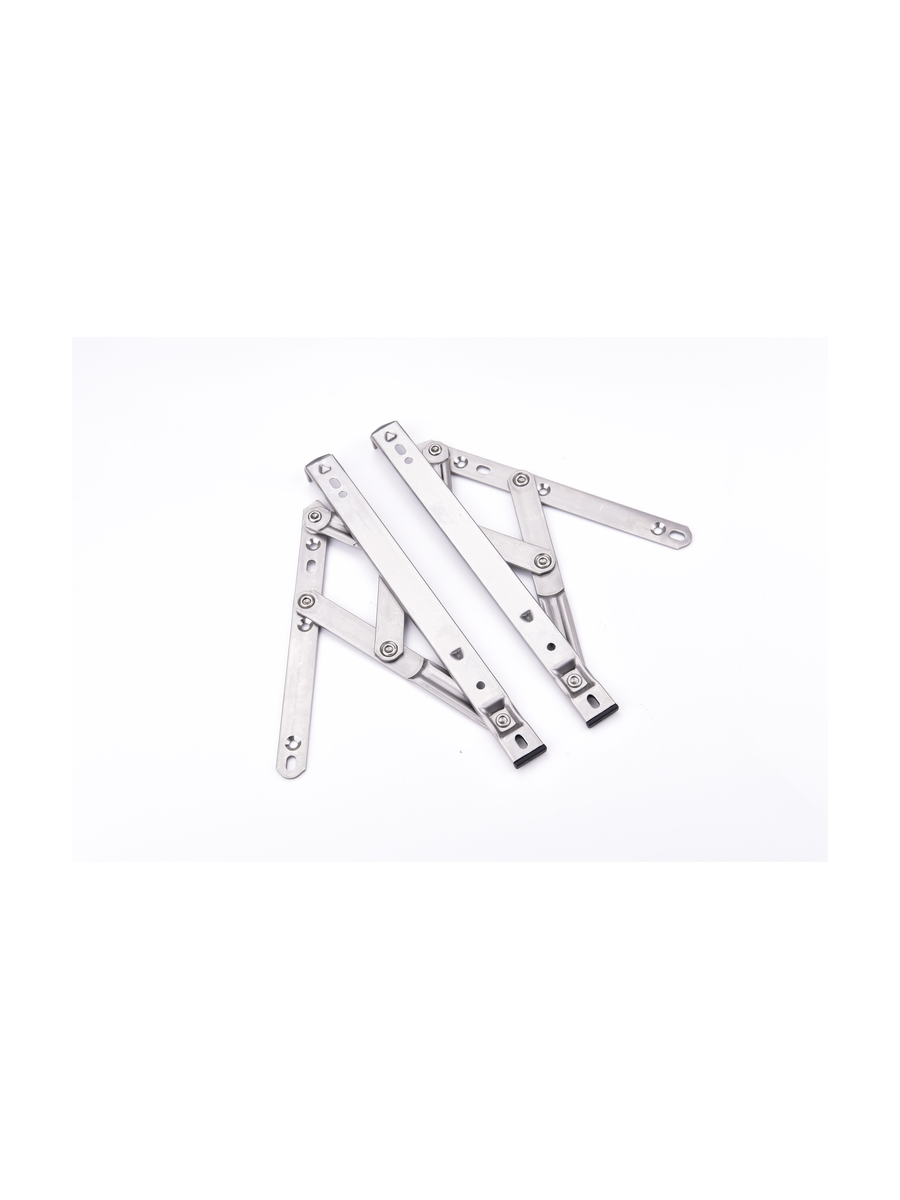

HFH22.16.10C38-5

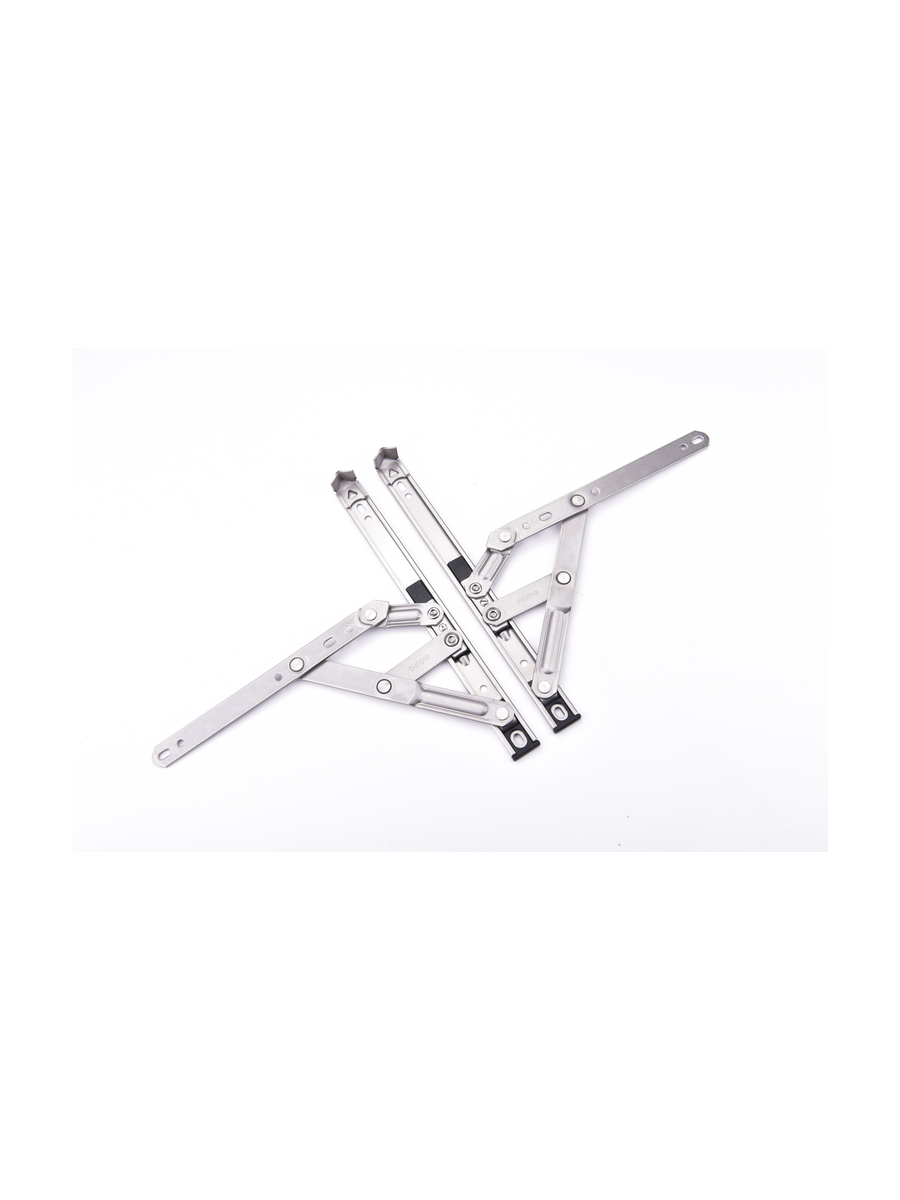

HFH22.16.10C38-7

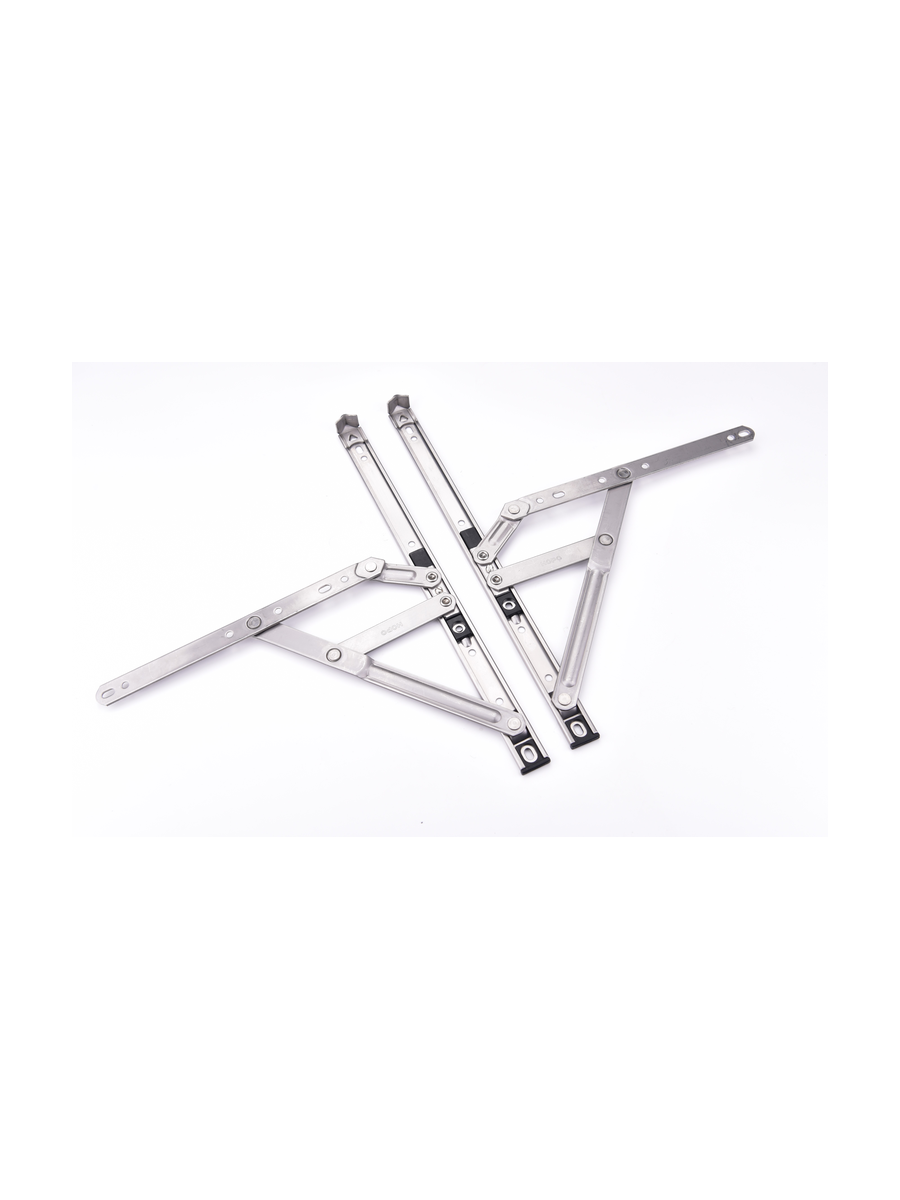

HFH22.16.12C38-1

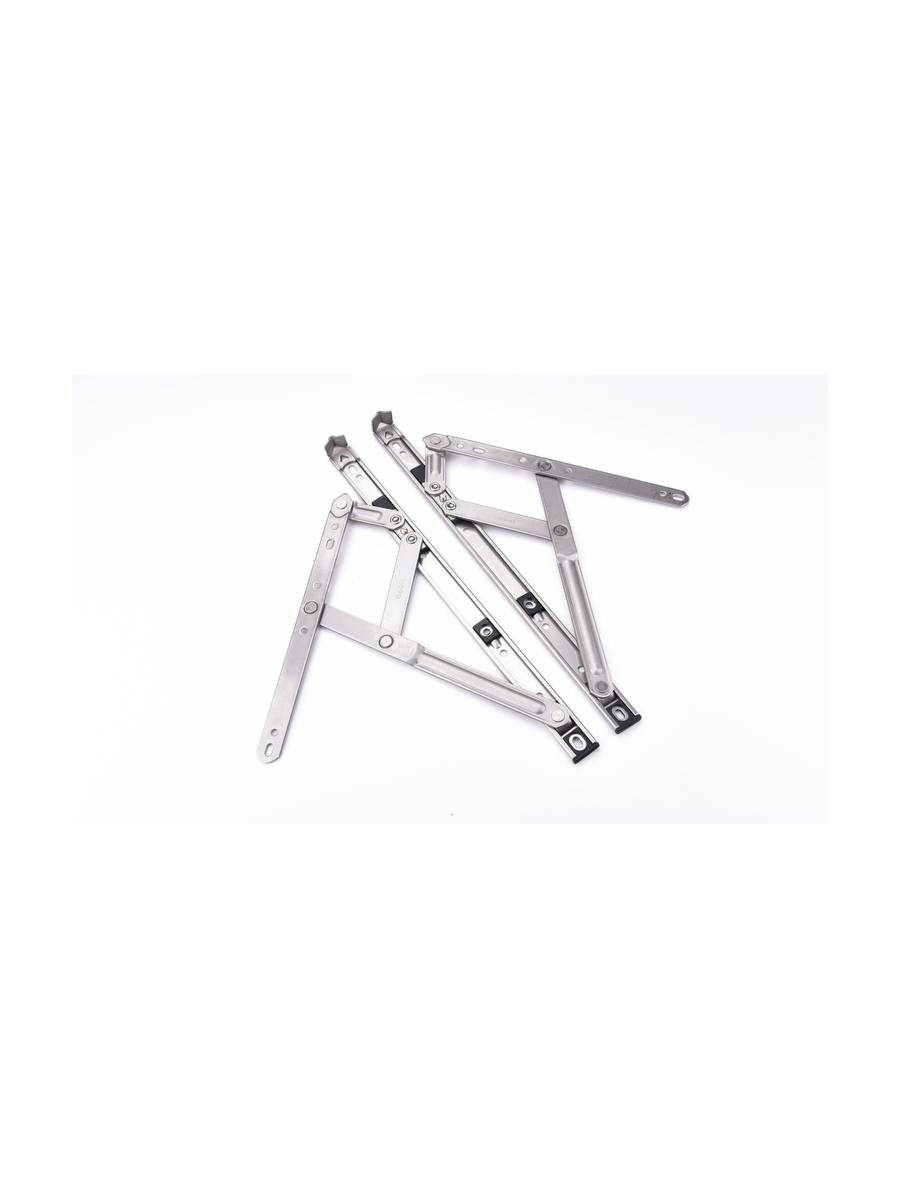

HFH22.16.12C38-2
HFH 22 Friction Hinge (Glass Sash)
HFH22.16.10C38-3
HFH22.16.10C38-4 Copy
HFH22.16.10C38-4
HFH22.16.10C38-5
HFH22.16.10C38-7
HFH22.16.12C38-1
HFH22.16.12C38-2
Friction HingeHardware Hinge
HFH 22 Friction Hinge (Glass Sash)
Product Series:HOPO
Product Code:HFH22.16.10C38
Hinge Size (A):10 inches, 12 inches, 14 inches, 16 inches, 18 inches
Main Material:Stainless Steel
Load Capacity:22 kg (10''), 27 kg (12''), 35kg (14''), 42 kg (16''), 48 kg (18'')
Max. Opening Angle:90°
Application:K-Groove or Non-Grooved Outward Opening Profile
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.

Series reference drawing

HFH22 Friction Hinge (Glass Sash Hinge) — HFH22.16.14C38, HFH22.16.16C38, HFH22.16.18C38

HFH22.16.10C38

Not a complete dimensioned drawing for this SKU.

Stack height: 16.5 mm · Nominal length: 10 in · Opening angle: 87° · Source window weight: 17 kg

BOASS · View full-size drawing

Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
HFH 22 Friction Hinge (Glass Sash)
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.

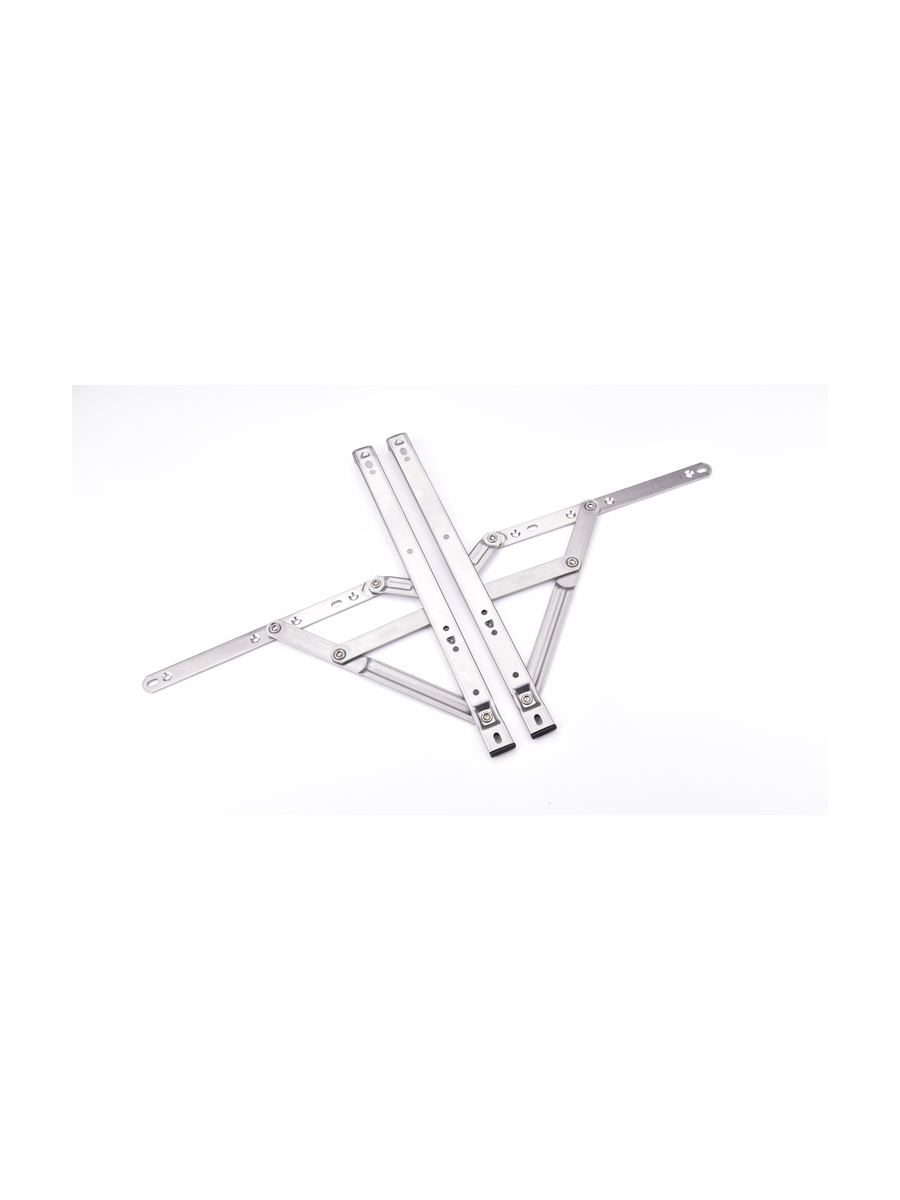

HFH22.16.10C38-3
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.

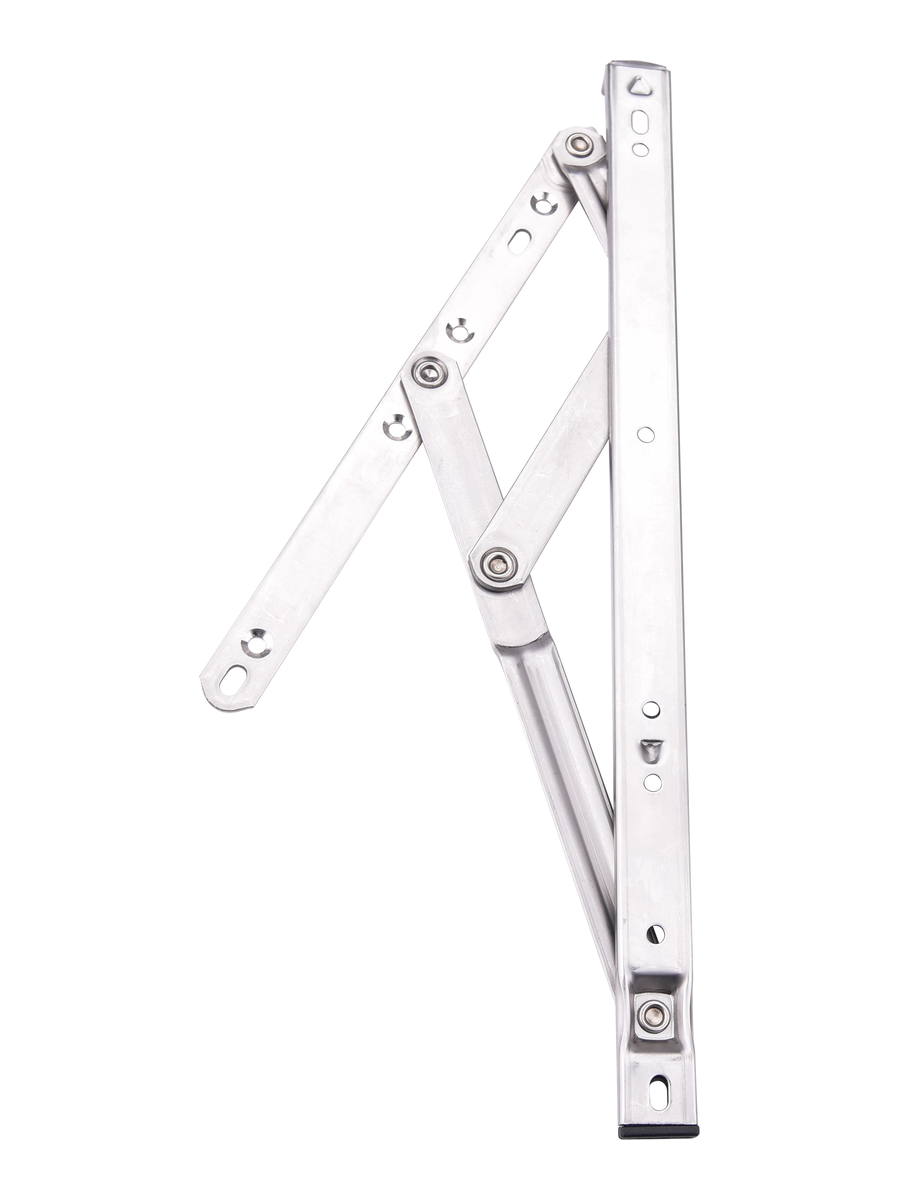

HFH22.16.10C38-4 Copy
Download TDS Installation Manual
