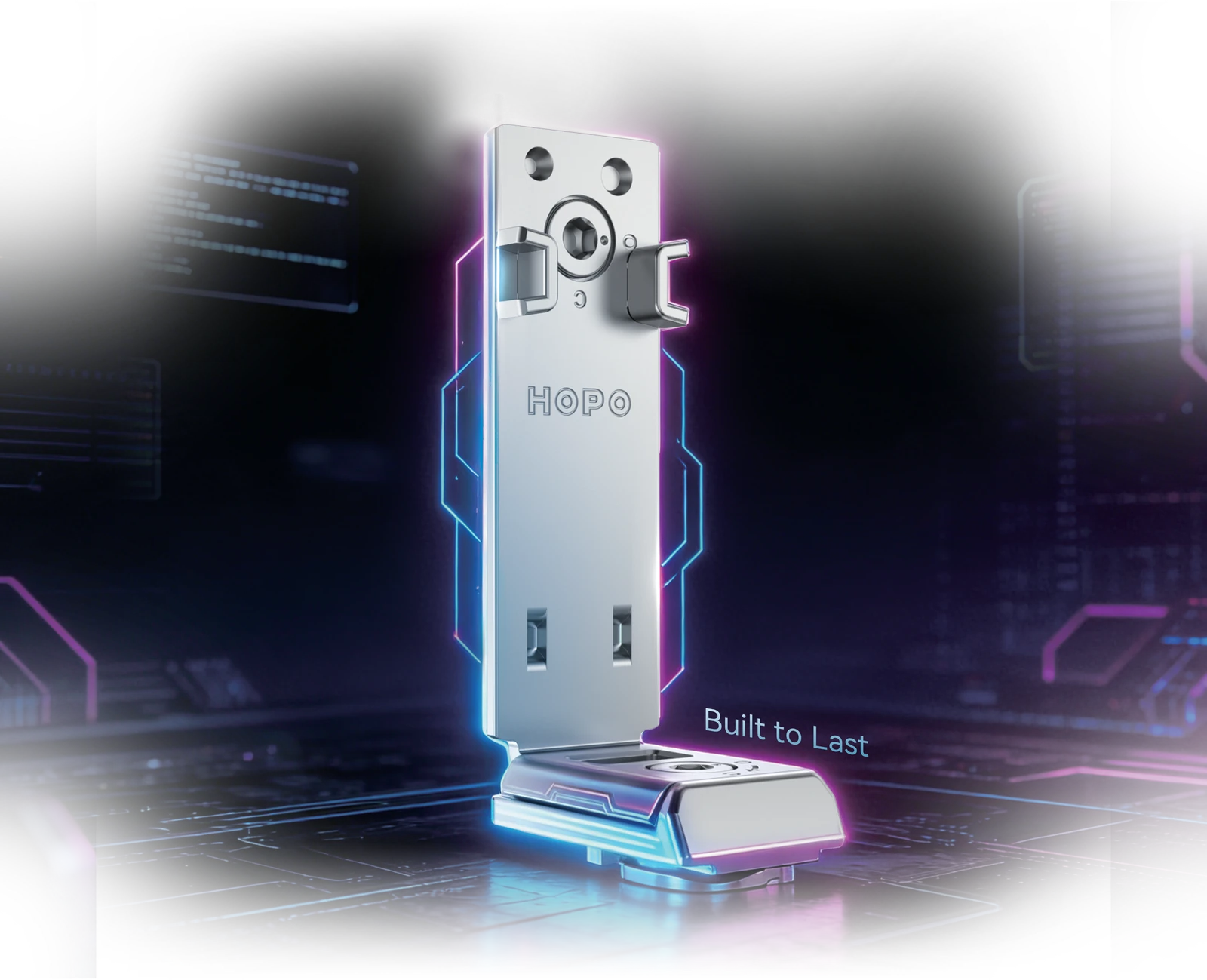

Precision-engineered hardware for C-groove tilt-and-turn windows. The Nitoly system brings together coordinated hinges, drive components and locking points for stable movement, quiet operation and lasting performance.
A 100 kg standard sash load, selectable 90° or 180° opening and a choice of rosette or rosette-free handles support a wide range of residential window designs.
Catalogue application range. Confirm profile compatibility and the final sash configuration before specification.
NITOLY SERIES

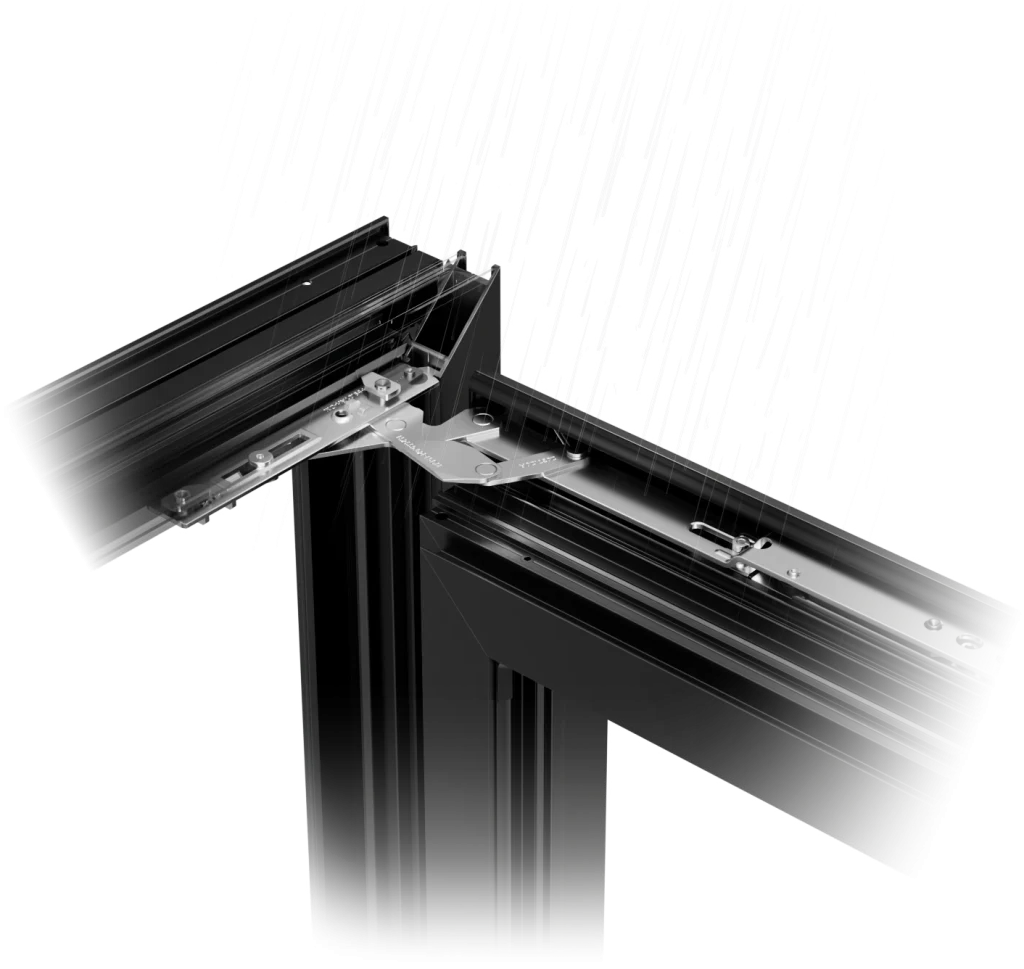

The proprietary Nitoly process combines precision manufacturing with a focus on lasting surface performance. The system is designed to resist coastal salt spray, acid rain and corrosion in demanding environments.

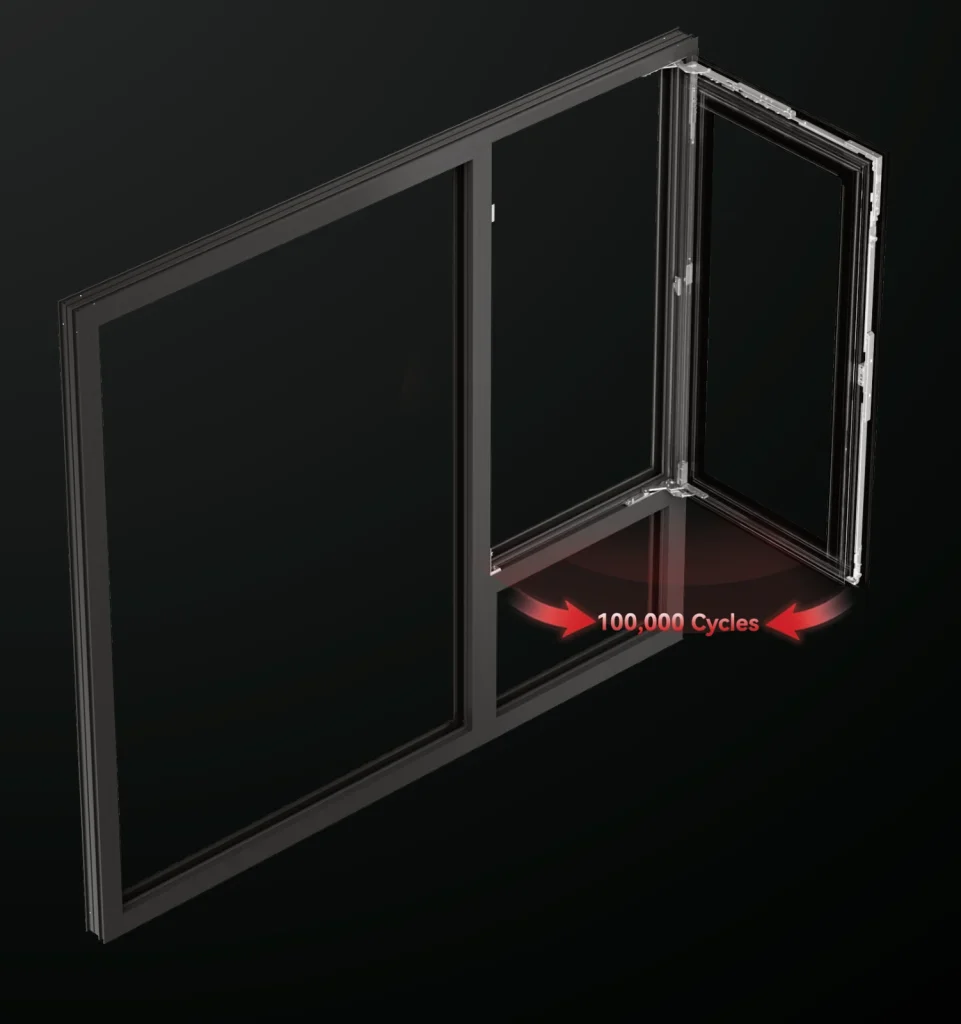

The Nitoly catalogue specifies testing to 100,000 opening and closing cycles. The 180° hinge assembly can be switched to 90° opening, with a standard load capacity of 100 kg.

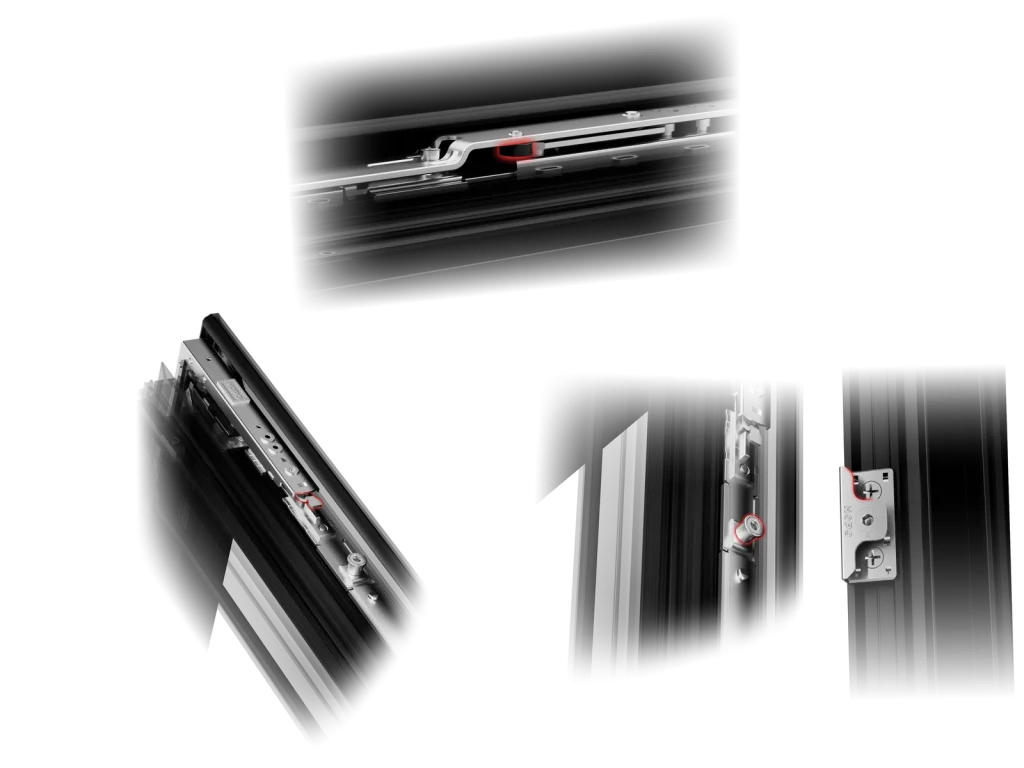

A self-adjusting upper hinge helps reduce sash wobble. Misoperation protection in the drive assembly and corner drive works with anti-pry locking points and strikers to support stable, protected operation.

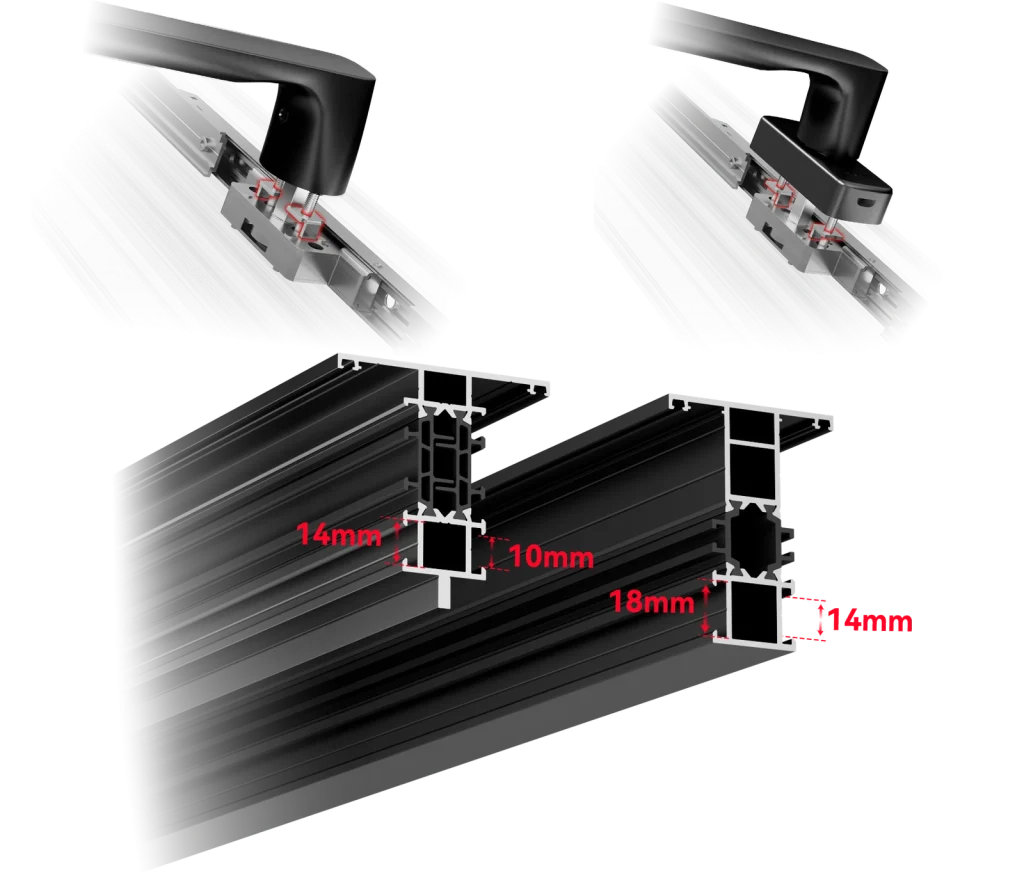

Choose the PH954 rosette handle or the PH348 rosette-free handle in matte black, silver or antique bronze. The gear case includes an anti-misalignment block for reversible installation; each handle style has its matching spindle.

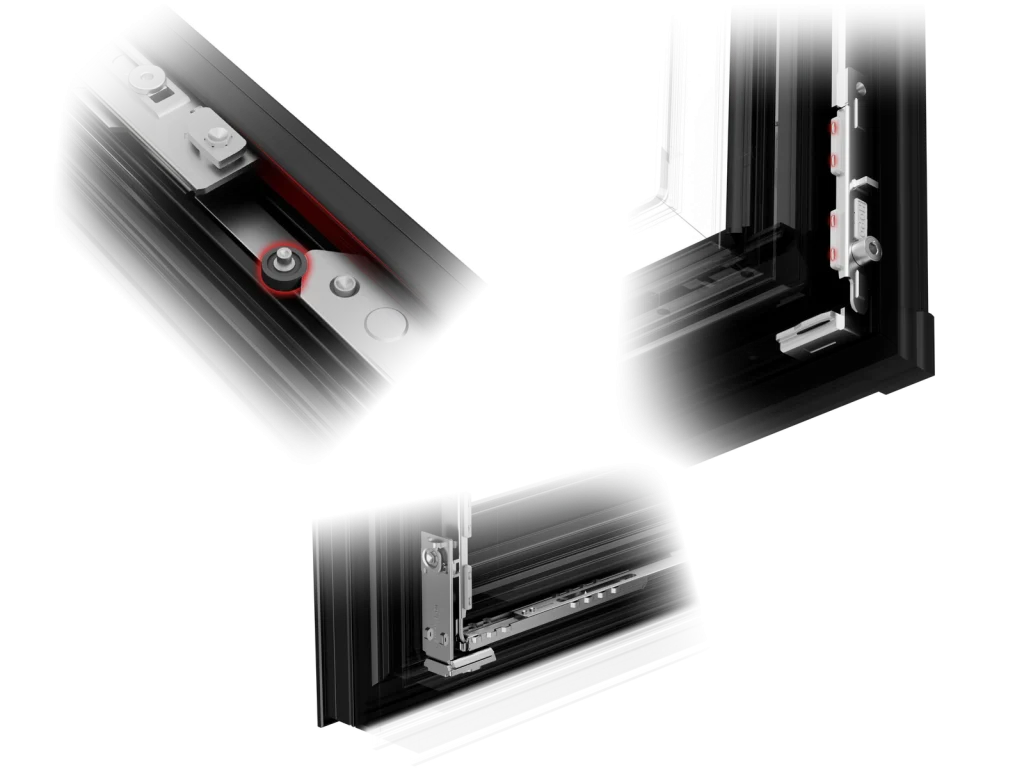

The hinge assembly is designed to avoid gasket interference, while anti-rattle devices in the drive components help reduce operating noise. An optional bottom corner drive supports additional sealing compression.

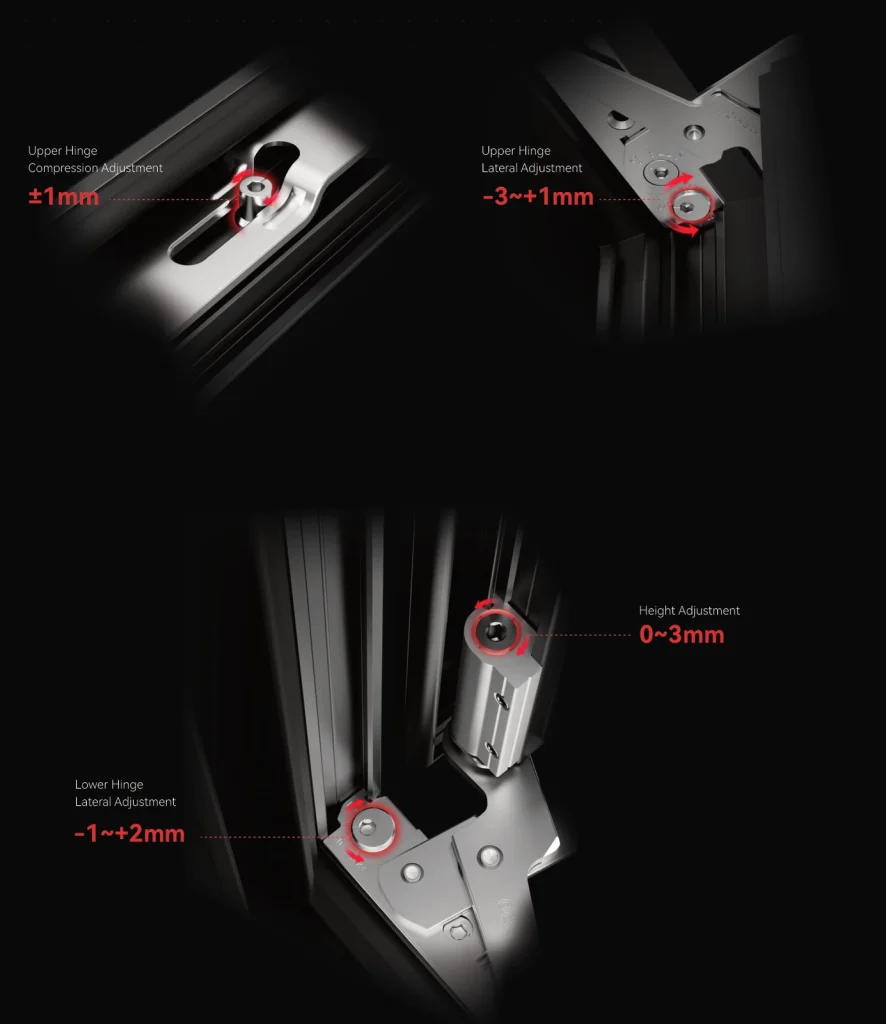

Fine-tune the installed sash with upper-hinge compression adjustment of ±1 mm, upper lateral adjustment of -3 to +1 mm, lower lateral adjustment of -1 to +2 mm and height adjustment of 0 to +3 mm.

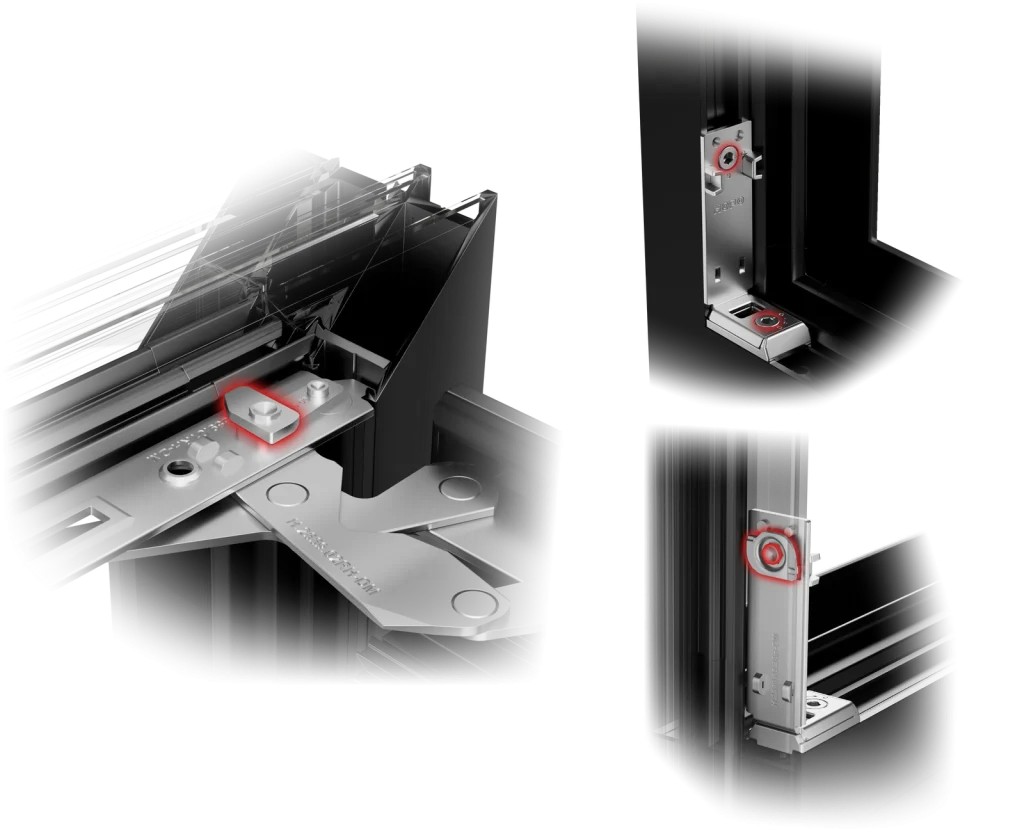

The clamp-mounted hinge can be pre-positioned and secured with a 90° installation turn. The integrated tilt striker and flip support bracket snap into place, simplifying assembly and alignment.
NITOLY SERIES

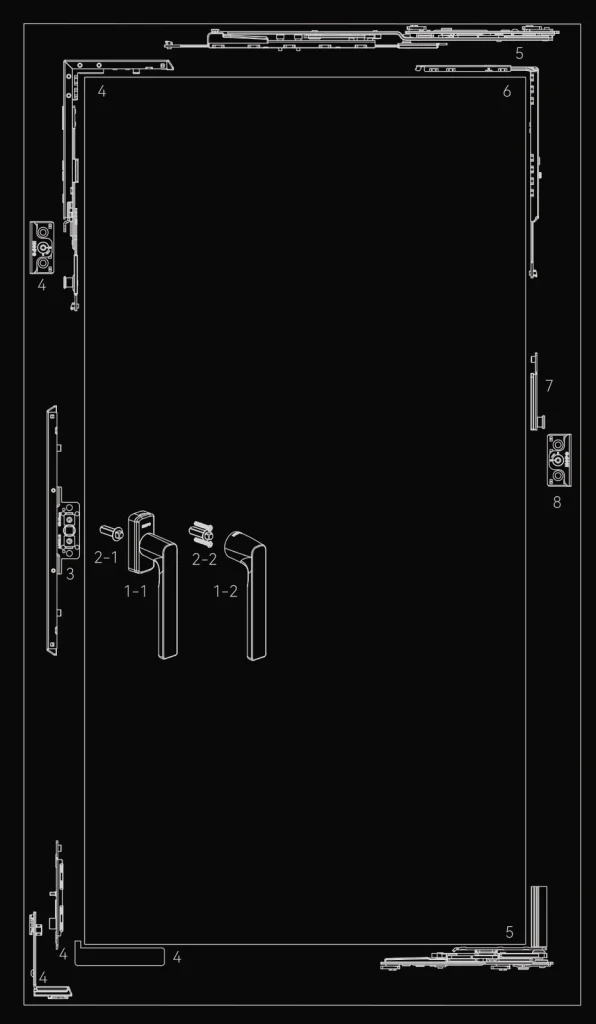

The C-groove hardware layout and catalogue component options are shown below. Select one handle style and finish, its matching spindle, and the appropriate left- or right-hand hinge assembly. Alternative rows are choices, not additional parts required together. Rear-locking components are listed separately for configuration selection.
Matte black (068); height 54.6 mm. Handle/finish option: choose one.
PH954.00.01C068H5 Silver (113); height 54.6 mm. Handle/finish option: choose one.
PH954.00.01C113H5 Antique bronze (049); height 54.6 mm. Handle/finish option: choose one.
PH954.00.01C049H5 Matte black (068); height 41.3 mm. Handle/finish option: choose one.
PH348.00.068H2 Silver (113); height 41.3 mm. Handle/finish option: choose one.
PH348.00.113H2 Antique bronze (049); height 41.3 mm. Handle/finish option: choose one.
PH348.00.049H2 For the PH954 rosette handle; exposed length 25 mm.
SP07.07.25C021X For the PH348 rosette-free handle; exposed length 26 mm; two 55 mm M4 countersunk screws.
SP07.07.2T26C021X 11.7 mm backset.
AGC56.12.384H5 Coordinated tilt-and-turn drive assembly.
AD31.00.384H5 Choose the required handing; 180° opening, switchable to 90°; 100 kg load capacity.
CATT72.35.382LH5 Choose the required handing; 180° opening, switchable to 90°; 100 kg load capacity.
CATT72.35.382RH5 Rear-locking configuration.
AMCT21.00.38H5 Rear-locking configuration.
ALR71.00.38H5 Rear-locking configuration.
