HOPO PRO SERIES
HOPO PRO SERIES
The HOPO Pro Series Heavy-Duty Lift-and-Slide Door Hardware System is designed for large-format, heavy lift-and-slide doors. Turning the handle actuates the lift-and-lower movement and multipoint locking. In the closed position, the sash lowers by approximately 7 mm to compress the perimeter gaskets. The coordinated hardware package combines high load capacity, smooth running, comfortable operation and installation efficiency. Final door performance depends on the profile system, glazing, sealing layout and verified door testing.
The values below describe the current system configuration. Final sash dimensions and project suitability depend on the profile system, glazing, sealing layout and verified door testing.
HOPO PRO SERIES

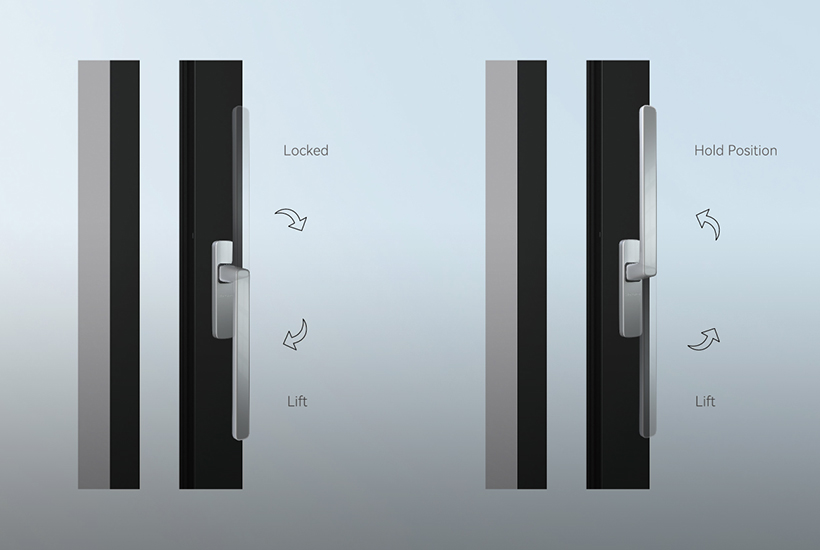

Turning the handle lowers the sash and engages the multipoint locking system, compressing the perimeter gaskets. This supports the air, water, acoustic and wind-load performance of the completed door assembly. Final performance depends on the profile, sealing configuration and verified test results.

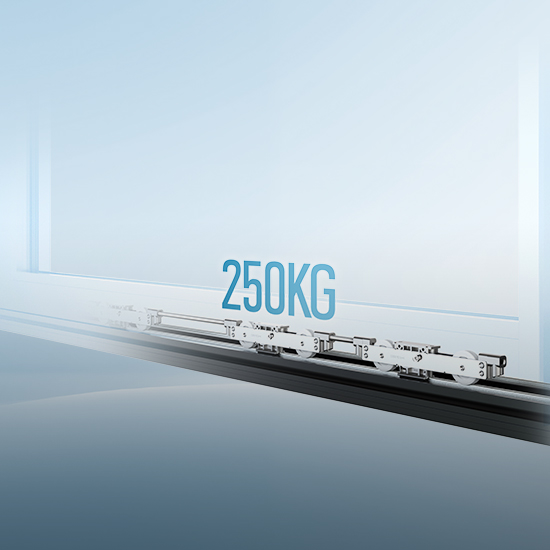

The standard configuration supports a nominal sash weight of up to 250 kg. Additional roller units can extend the load-bearing configuration for larger sashes, while the coordinated roller system promotes smooth and quiet travel.

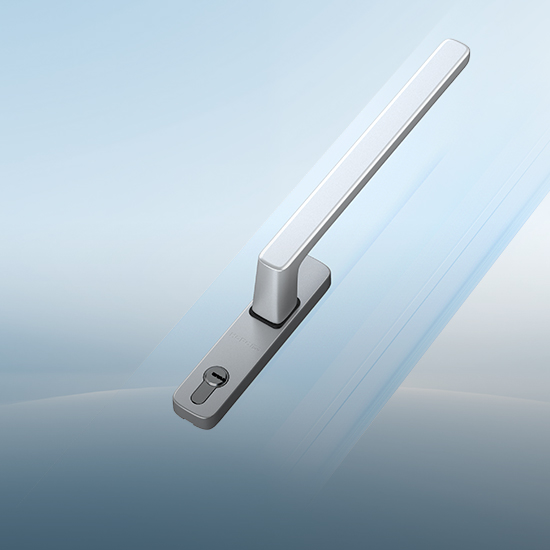

The extended handle provides greater leverage to help reduce operating force and improve grip comfort during daily use.

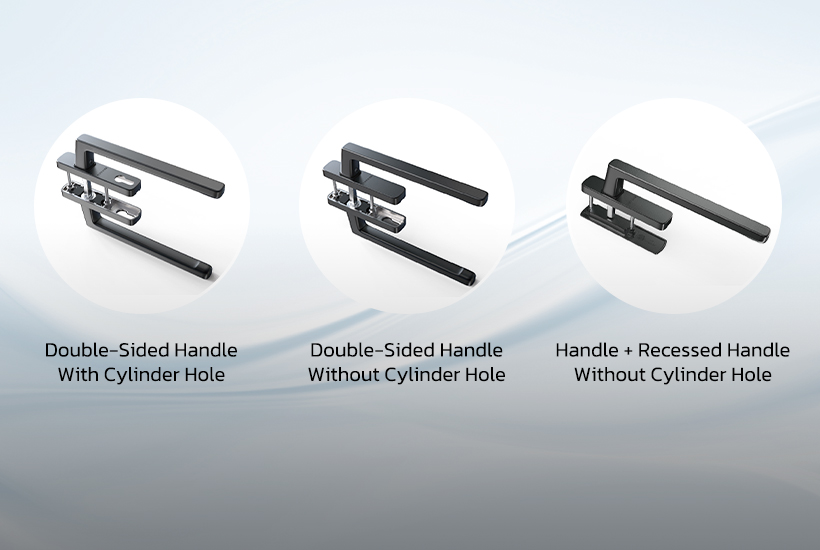

Double-sided handles with or without cylinder preparation, plus a single-sided handle with recessed pull, support different access and locking requirements.

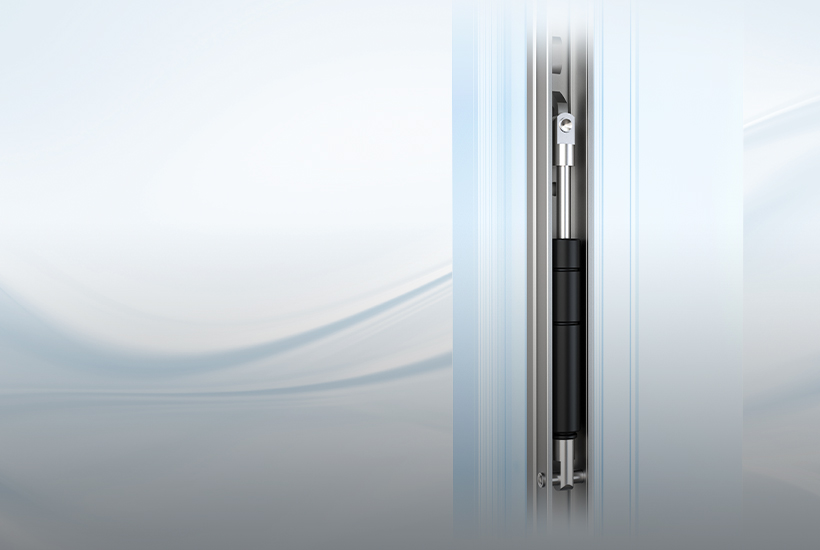

The lift-and-slide drive gear incorporates a damping mechanism to reduce handle kickback as the sash lowers. The upper locking point is concealed within the profile chamber for a cleaner appearance.
The sash can be held at selected positions along its travel to provide controlled ventilation. Security and wind-load performance in a ventilation position depend on the complete door design and verified testing.

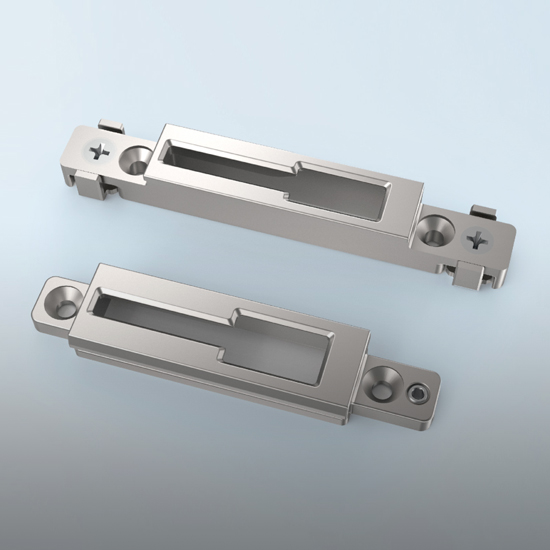

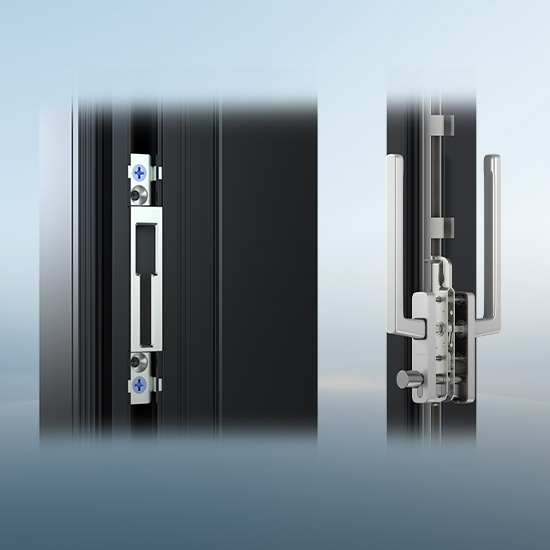

Precision-cast stainless-steel strikers provide robust support at the locking points and help improve resistance to deformation and forced levering.

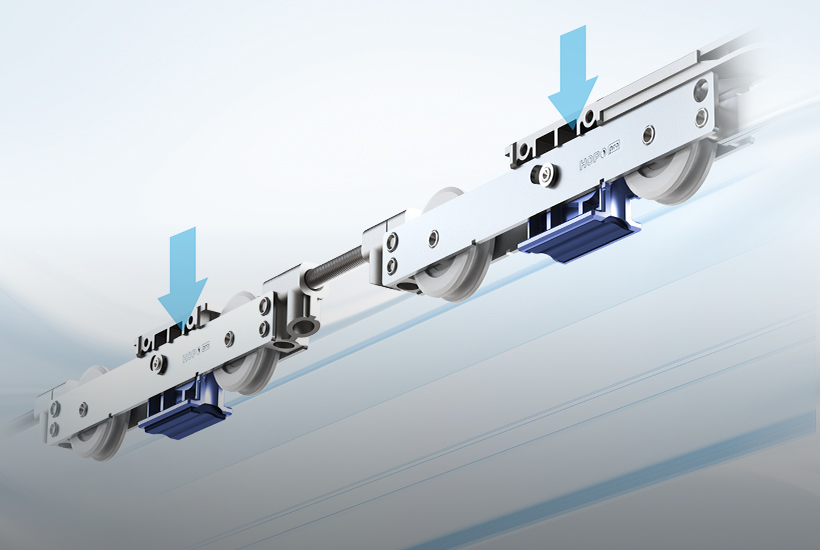

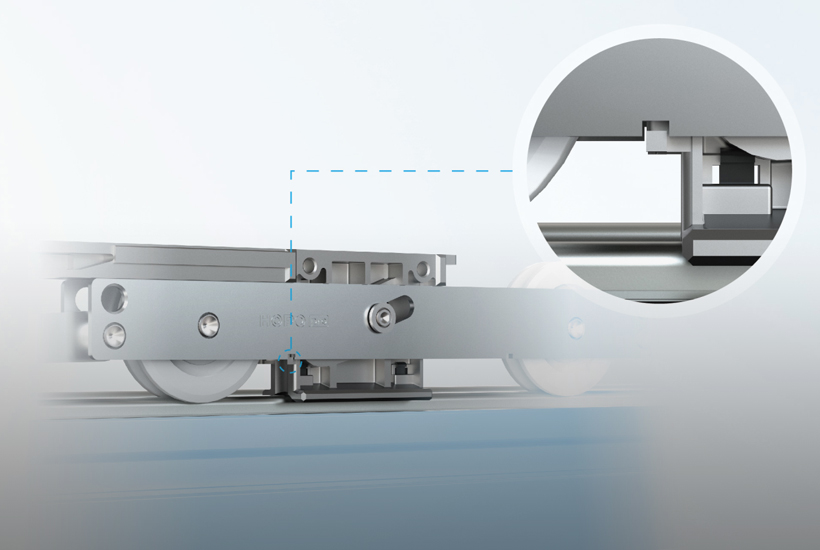

The main and auxiliary roller assemblies incorporate initial-position alignment features for faster, more accurate installation. The strikers support direct screw fixing, while the handle uses a 10 × 10 mm spindle and M6 through-bolted fasteners.

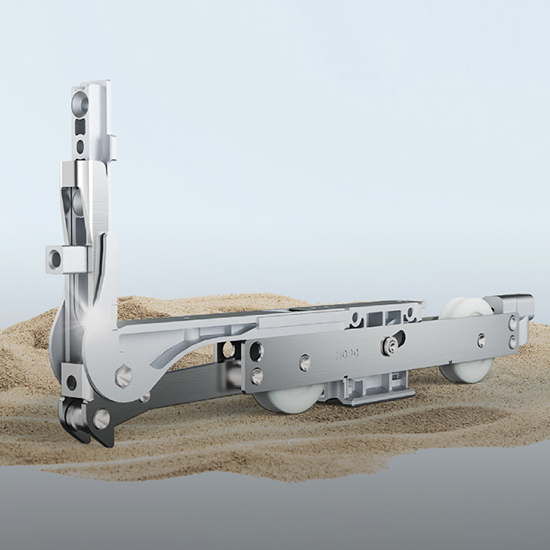

Selected hardware materials and corrosion-resistant surface treatments support reliable long-term use. Specific finish and corrosion-performance data should be matched to the verified product configuration.

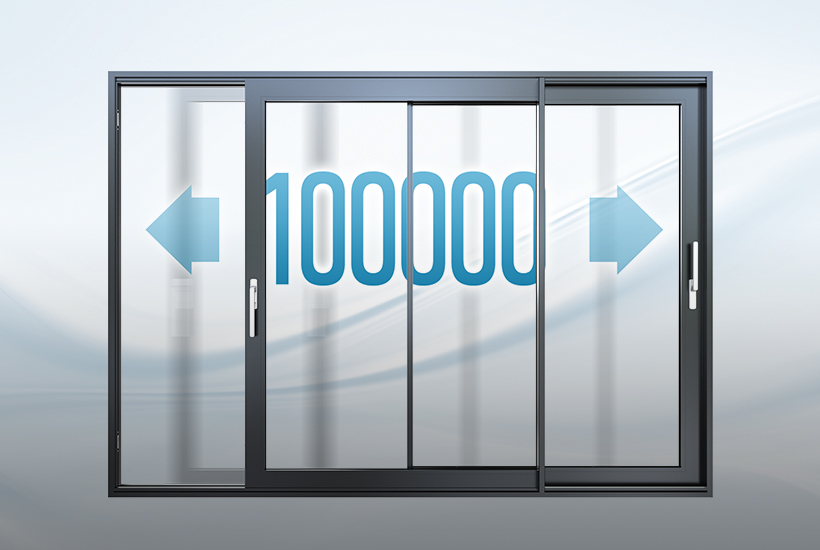

The coordinated hardware system is designed for repeated daily operation and stable long-term performance. Cycle-test claims will be published with the corresponding verified test method and report.
HOPO PRO SERIES
The hardware package is shown alongside its component layout. Standard parts and selectable handle, striker and auxiliary-roller options are presented together for direct comparison. Final selection depends on the profile system, sash weight and project requirements.
168 antibacterial textured black; optional 012 silver; with cylinder preparation
LSHD706.01.012HPRO5 Cylinder specification selectable
C99.XXXXC4T029 168 antibacterial textured black; optional 012 silver; without cylinder preparation
LSHD706.00.012HPRO5 168 antibacterial textured black; optional 012 silver; without cylinder preparation
LSHS706.00.012HPRO5 37.5 mm centre distance
LSG725.20.011HPRO5 13 mm block thickness; optional 16/18/20/21/25 mm
LSAB70.50.13 Stainless steel; choose one of the three according to the profile locking-groove structure
SLP725.01.384X Stainless steel; choose one of the three according to the profile locking-groove structure
SLP725.02.384X Stainless steel; choose one of the three according to the profile locking-groove structure
SLP725.03.38X 250 kg
LSBR725.00.1T015HPRO5 1.5 m; optional 1.1/1.8/2.0 m
LSS70.10.15C38 Optional for a per-sash load of 250–400 kg
