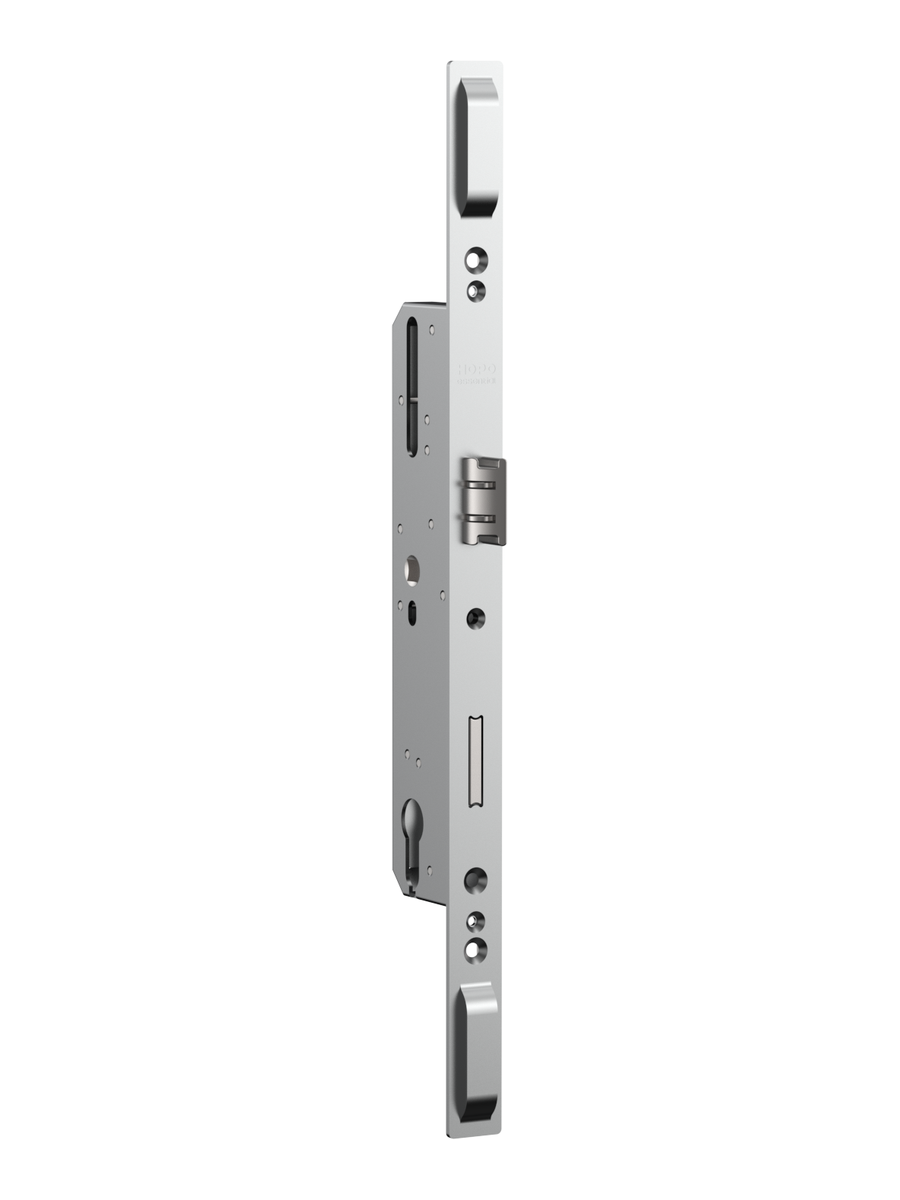

SDLK51 Multi-Point Lock Body
Product Series:HOPO essential
Product Code:SDLK51.33.22C38L/RHE2
Backset:33mm
Faceplate Width:22mm
Center Distance:92mm
Main Material:Stainless Steel
Handing:Left / Right Handed
Transmission Type:Unidirectional Transmission
Application:Swing Door
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Technical drawings and specifications

SDLK51.33.22C38L/RHE2
HOPO Hardware Catalogue 2025 · Catalogue page 168
SDLK51.38.22C38L/RHE2

SDLK51.38.22C38L/RHE2
HOPO Hardware Catalogue 2025 · Catalogue page 168
Drilling diagram

Listed matching SKUs: SDLK51.33.22C38LHE2, SDLK51.33.22C38RHE2, SDLK51.38.22C38LHE2, SDLK51.38.22C38RHE2
Source product: BOASS · View full-size drawing
Hardware advantage 01
Engineered for Smooth Daily Operation
Precision-fit hardware supports stable motion, controlled locking, and reliable use across modern door and window systems.
Hardware advantage 02
Durable Finish for Demanding Environments
Robust materials and protective surface treatment help resist wear, corrosion, and long-term performance drift.
Hardware advantage 03
System-Matched Installation
Compatible product logic helps installers match profiles, accessories, and application needs with greater confidence.
Download TDS
Installation Manual
Installation Manual
