C-Groove Tilt-and-Turn System Overview

The C-groove tilt-and-turn system combines multiple handle, drive and 90° or 180° hinge configurations. The existing configuration tables specify 100 kg for the illustrated standard hinge sets, while optional load-bearing components support up to 180 kg. Middle locking, anti-sag support and multi-directional adjustment options address sealing, sash stability and installation efficiency.

Technical Information

The values below are reproduced from the existing product page, configuration tables and solution-advantage content. Select the hinge set, sash range, handle and locking arrangement for the actual profile and verified complete-window design.

System type: C-groove tilt-and-turn hardware system
Illustrated hinge opening angles: 90° or 180°, depending on the selected hinge set
Illustrated standard hinge load: 100 kg
Optional load-bearing configuration: Up to 180 kg, as stated in the solution advantages
Illustrated sash width range: 370-1,000 mm, depending on the selected hinge set
Illustrated sash height range: 595-2,600 mm, depending on the selected hinge set
Gear-case backset: 13 mm; 6.5 mm optional in the illustrated configuration
Middle-lock guidance: Recommended above 800 mm sash width or 1,200 mm sash height

C-GROOVE SERIES

Solution Advantages

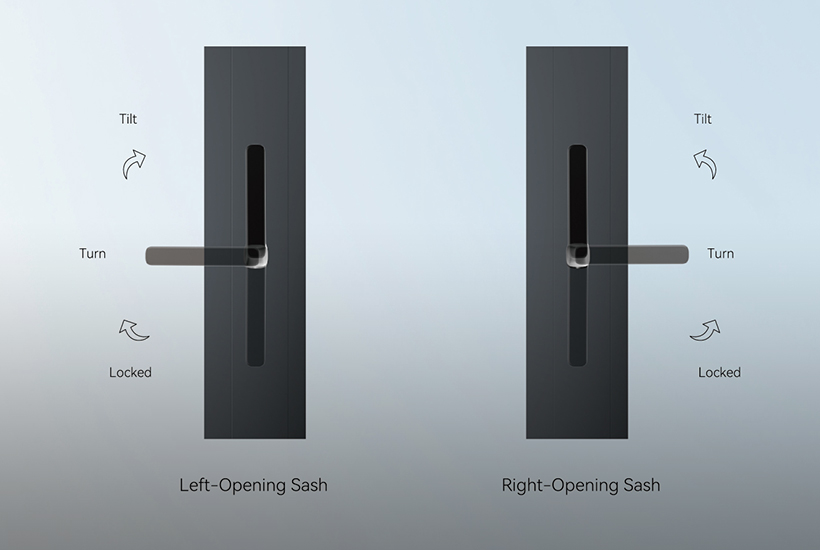

Operation Diagram

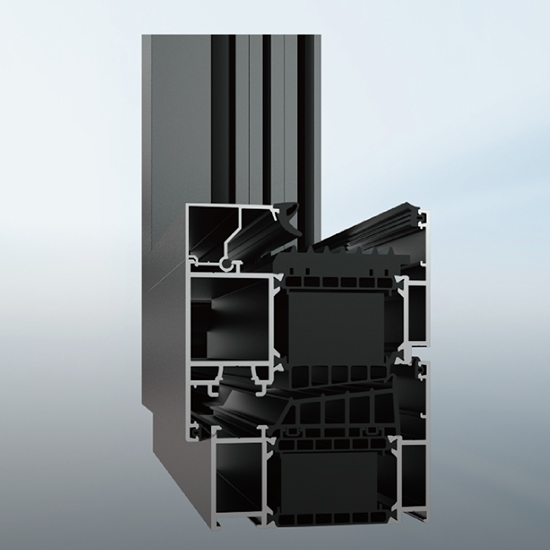

Profile Information

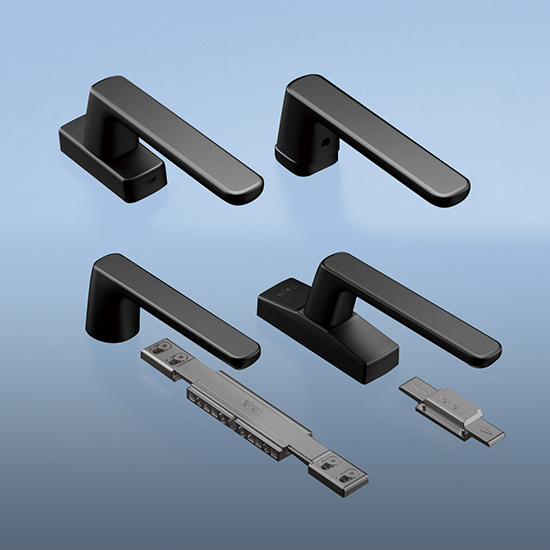

Comprehensive Handle Solutions

There are four options available for selection.

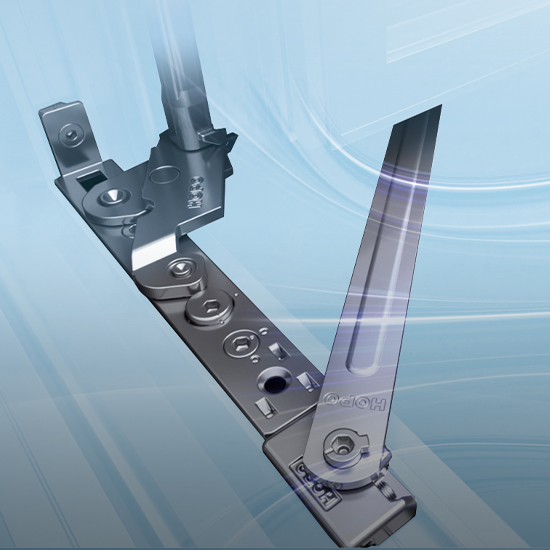

Superior Load Capacity

Optional load-bearing components support up to 180 kg, ensuring reliable stability and safety for your home.

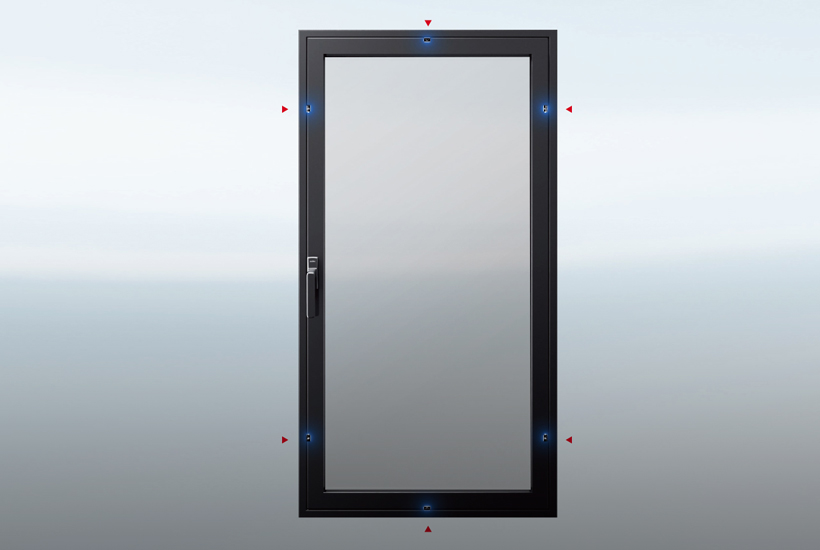

Enhanced Sealing and Wind Resistance

Optional middle lock enables multi-pointlocking to enhance sealing and pressureresistance for lasting thermal comfort.

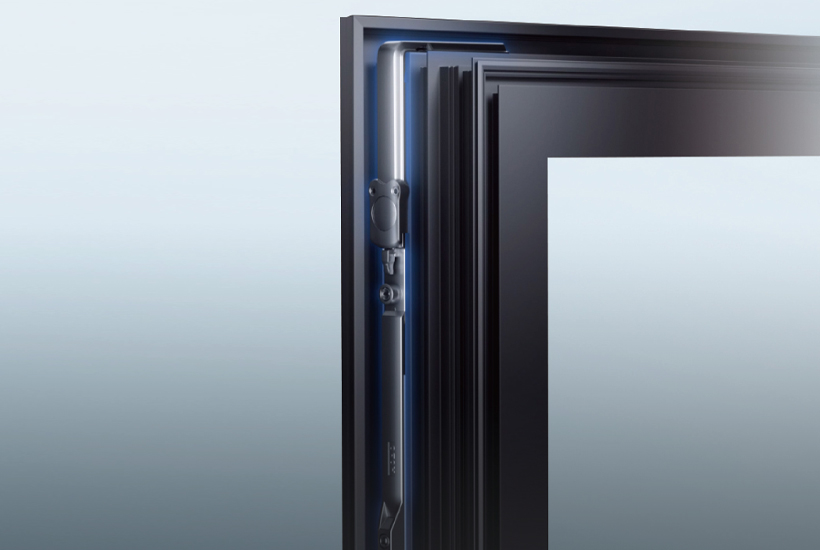

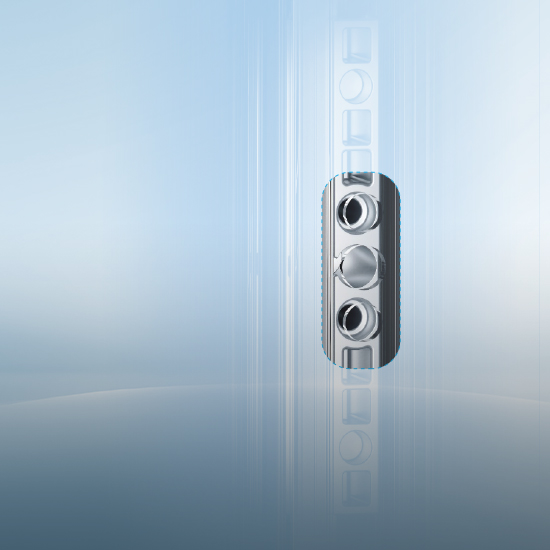

No Wobbling

Exclusive anti-swag structurekeeps the sash stable and secure during every opening.

Friction Open Stay

Provides resistance against strong windand prevents sudden sash movement.

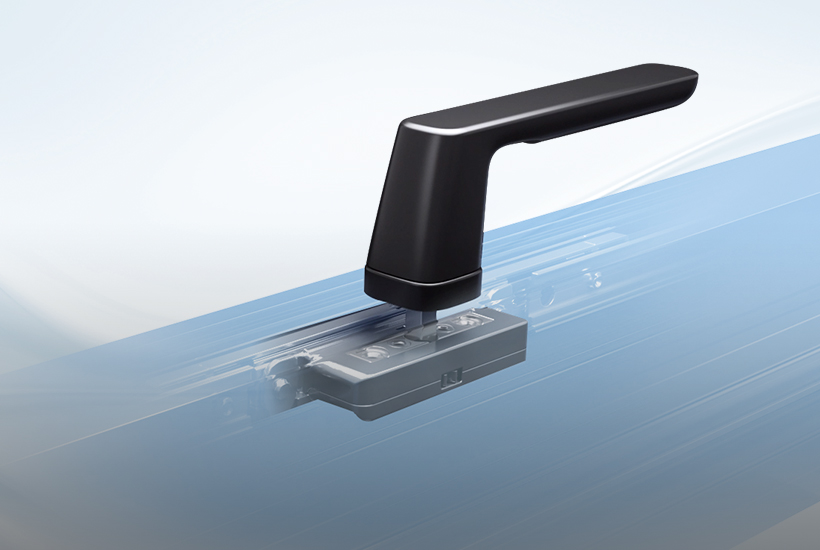

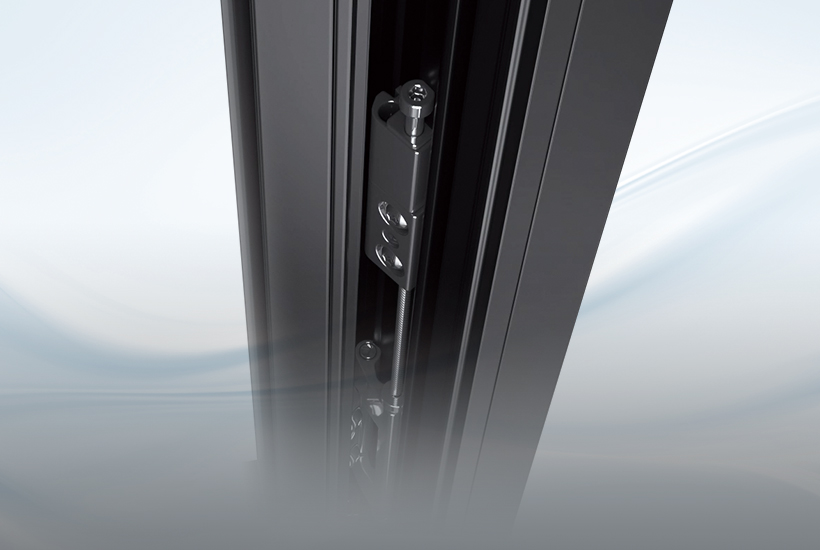

Smooth Opening & Closing

Gear case with clamping piece ensures stable installation and smoother handle operation.

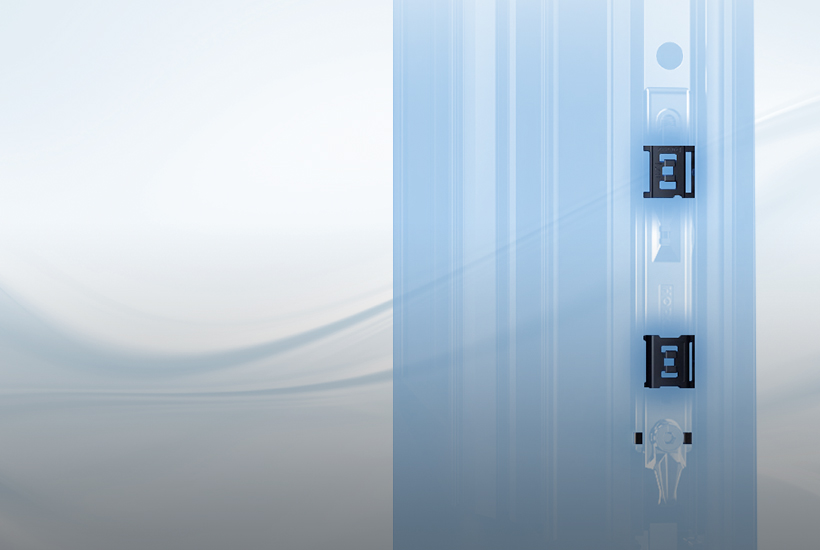

Silent Locking

Added nylon noise-damping block minimizes friction with the sash groove, ensuring silent and smooth operation.

Easy Installation

Milling-free gear case design simplifies assembly and reduces installation time.

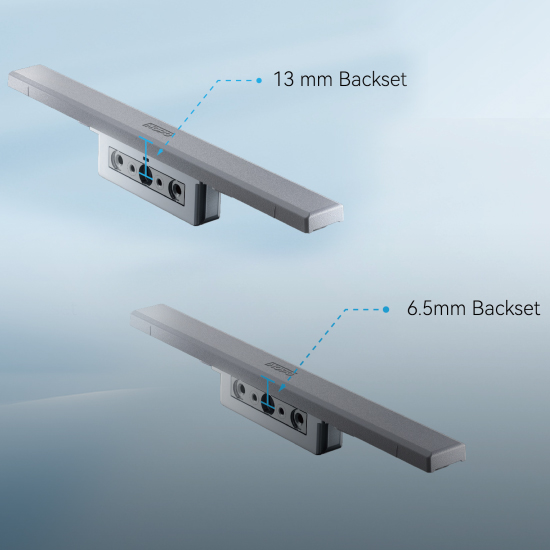

Multiple Backset Options

Available in multiple backset options to ensure easy compatibility with different profile systems.

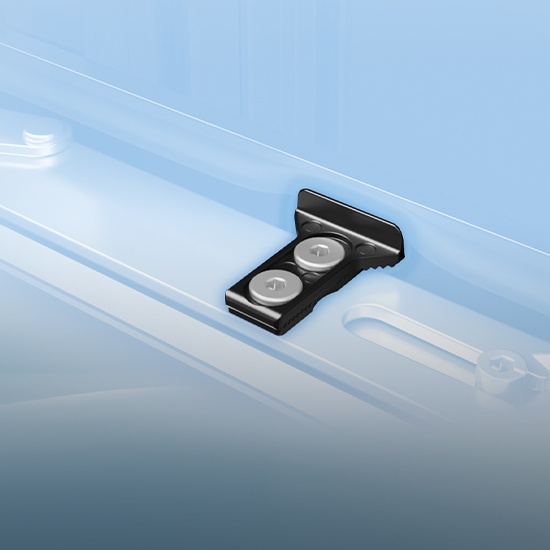

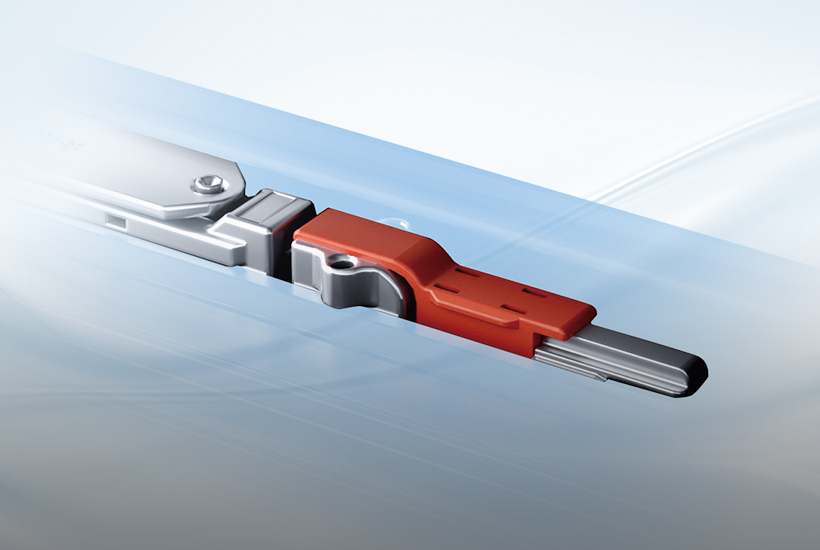

Red Positioning Parts

Eliminates the need to locate the initial installation position - precise alignment in one step.

SAS Quick-Mount Components

Support clamping installation, improving assembly efficiency by
60-70%

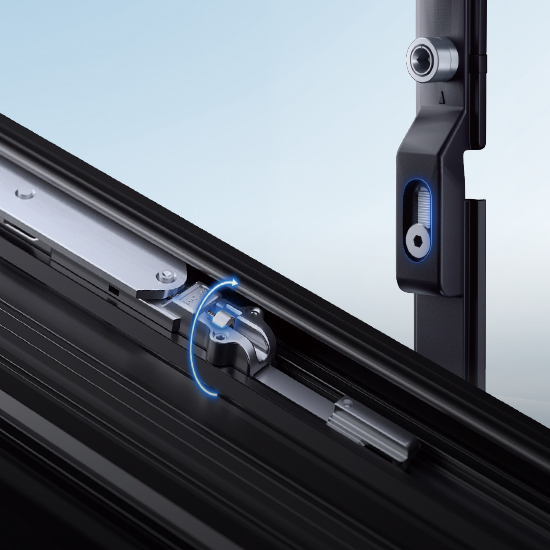

Comprehensive Fine-Tuning Function

Simplifies installation, adjustment, and maintenance withgenerous tolerance design.

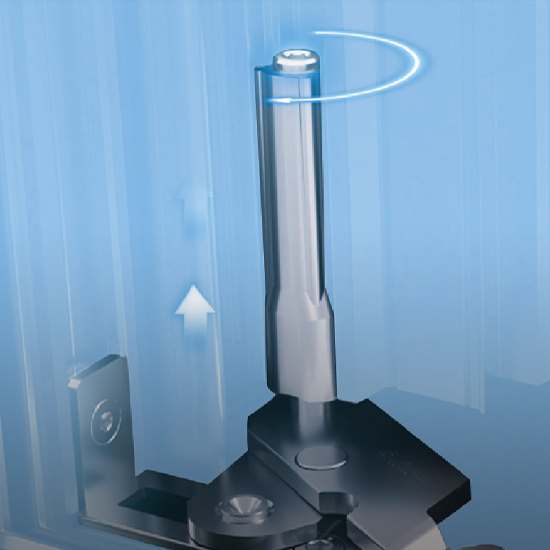

Vertical Adjustment of Lower Hinge

- 90/180 hinges allow +3mm vertical correction forprecise alignment.

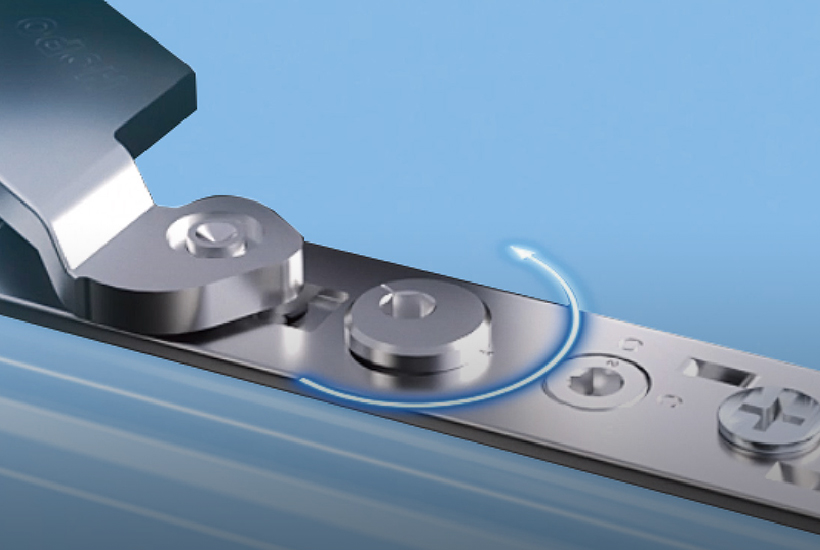

Horizontal Adjustment of Lower Hinge

- 180 opening hinge: -0.7/ +2.3 mm horizontal correction
- 90 opening hinge: -0.5/ +2.5 mm horizontal correction

C-GROOVE SERIES

Solution Configuration

The list below preserves all three illustrated C-groove configurations, including repeated item numbers, quantities, units, product codes and notes from the source tables.

1-1

PH922 Handle

Antibacterial matte black, available in silverantique copper

1 pc PH922.00.168H5
1-1

SP07 Square Spindle

Exposed length: 25 mm

1 pc SP07.12.25C021X
1-2

PH312 Rosette Free Handle

Antibacterial matte black, available in silverantique copper

1 pc PH312.00.1T168H3
1-2

SP07 Square Spindle (with Screws)

Exposed length: 26 mm, with 2 pieces of 25mm longM4 countersunk head screws

1 pc SP07.07.2T26C021X
2

Gear Case

13mm backset, 6.5mm backset optional

1 pc AGC50.13.014H4
3

Transmission Component

Micro-adjustment transmission component

1 set AD21.00.021H4
4

180° Tilt-Turn Hinge

Opening angle 180°, load capacity 100 kg, sash width480-1000 mm,sash height 595-2600 mm

1 set CATT55.20.38LH5
5

90′ Tilt -Turn Hinge

Opening angle 90°, load capacity 100 kg, sash width475-1000 mm, sash height 595-2600 mm

1 set CATT51.35.P1T38LH5
6

Open Stay

Adjustable friction stay, recommended for90°opening tilt-turn window.

1 pc ALR28.00.021H4
7

Middle Corner Transmission Device

When sash width exceeds 800 mm or height exceeds1200 mm, it is recommended to add a middle lock toenhance safety, locking strength,and sealing performance

1 pc ALP33.00.021H4
8

ALR28 Rolling Locking Rod

–

1 pc FH18.2216.15C38RH5
9

Locking Plate

–

1 pc AAS10.00.01
1-1

PH312 Rosette Free Handle

Antibacterial matte black

1 pc PH312.00.1T168H3
1-1

SP07 Square Spindle (with Screws)

Exposed length: 26 mm, with 2 pieces of 25mm longM4 countersunk head screws

1 pc SP07.07.2T26C021X
1-2

PH922 Handle

Antibacterial matte black

1 pc PH922.00.168H5
1-2

SP07 Square Spindle

Exposed length: 25 mm

1 pc SP07.12.25C021X
2

Gear Case

Backset: 13 mm, other specifications optional

1 pc AGC53.13.014H4
3

SAS Tilt-Turn Hardware Set (Left)

Opening angle 90°, load capacity 100 kg, sash width525-1000 mm,sash height 780-2600 mm

1 set CTT53.00.38LH5
4

Transmission Aluminum Rod

1000mm

1 pc H.1909.20.10C019
5

C-Groove Open Stay

Adjustable friction stay; recommended for 90.opening tilt-turn window

1 pc ATR20.09C38H5
6

Middle Corner Transmission Device

When sash width exceeds 800 mm or height exceeds1200 mm, it is recommended to add a middle lock toenhance safety, locking strength, and sealingperformance

1 pc AMCT20.00.021H4
7

ALR28 Rolling Locking Rod

–

1 pc ALR28.65.021H4
8

C-Groove Locking Plate

–

1 pc ALP10.00.021
1-1

PH312 Rosette Free Handle

Antibacterial matte black, available in silverantique copper

1 pc PH312.00.1T168H3
1-1

SP07 Square Spindle (with Screws)

Exposed length: 26 mm, with 2 pieces of 25mm longM4 countersunk head screws

1 pc SP07.07.2T26C021X
1-2

PH922 Handle

Antibacterial matte black, available in silverantique copper

1 pc PH922.00.168H5
1-2

SP07 Square Spindle

Exposed length: 25 mm

1 pc SP07.12.25C021X
2

Gear Case

Backset: 13 mm, other specifications optional

1 pc AGC50.13.014H4
3

Transmission Component (Pro)

Micro-adjustment transmission component

1 set AD21.00.021H4
4

Small Link Arm Tilt-Turn Hinge Component (Left)

90° opening, load capacity 80 kg, sash width370-510 mm,sash height 595-2600 mm

1 set CATT51.30.1T021LX
5

C-Groove Open Stay

Adjustable friction stay, recommended for90° opening tilt-turn window.

1 pc ATR20.09C38H5
6

Middle Corner Transmission Device

When sash width exceeds 800 mm or height exceeds1200 mm, it is recommended to add a middle lock toenhance safety, locking strength, and sealingperformance

1 pc AMCT20.00.021H4
7

ALR28 Rolling Locking Rod

–

1 pc ALR28.65.021H4
8

C-Groove Locking Plate

–

1 pc ALP10.00.021
